LawMate BU-18Neo Cone Camera for PV-500Neo Series DVRs
End of line
Discontinued. Replaced by BU-18Neo Button Camera.
1080p CMOS, 0.1 Lux, lockable DIN. In stock, ships same day.

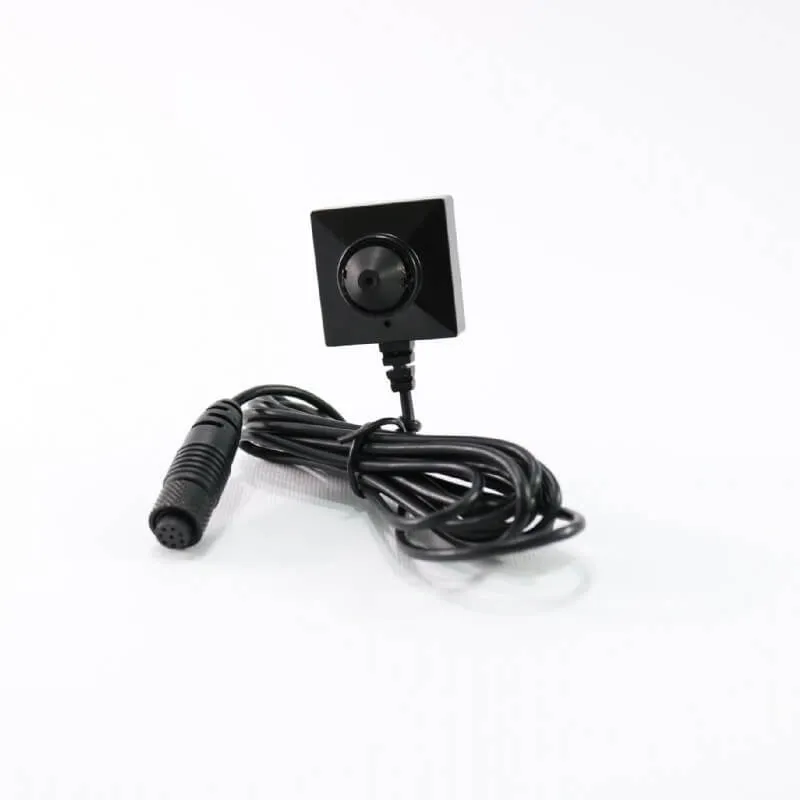

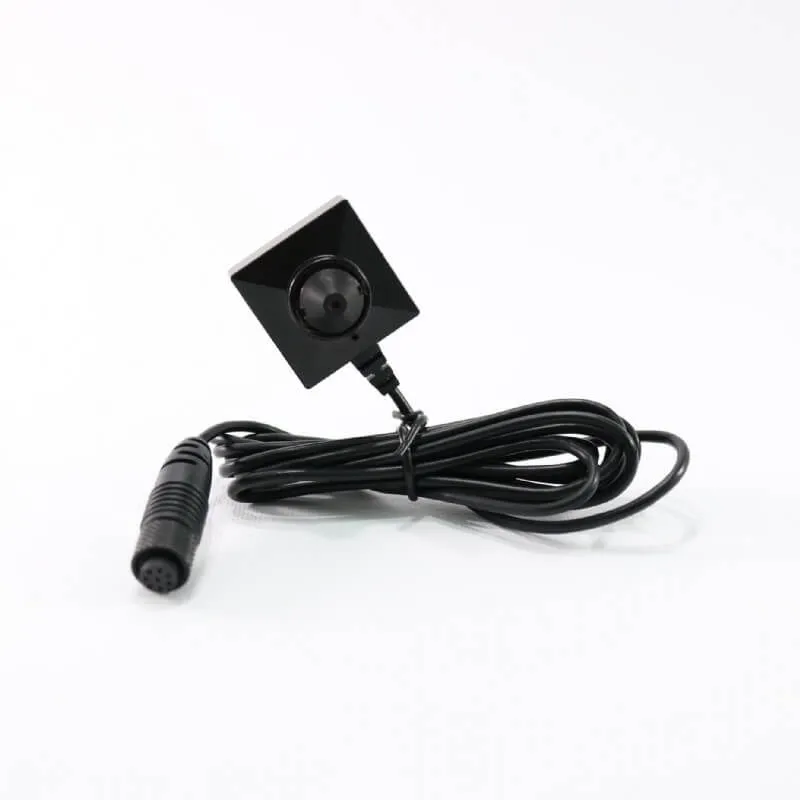

The LawMate BU-18Neo Cone Camera is discontinued and no longer in stock. Its replacement is the LawMate BU-18Neo Button Camera, a Full HD 1080P progressive CMOS camera with 0.1 Lux sensitivity and a lockable DIN socket, in stock and shipping the same working day. The LawMate BU-18Neo Cone Camera was a covert pinhole camera compatible with LawMate PV-500Neo Series Wi-Fi DVRs.
This camera features reinforced din locking plugs which makes the DVR to CAM connection more stable and eliminates the signal problems when cables are moved frequently.
The

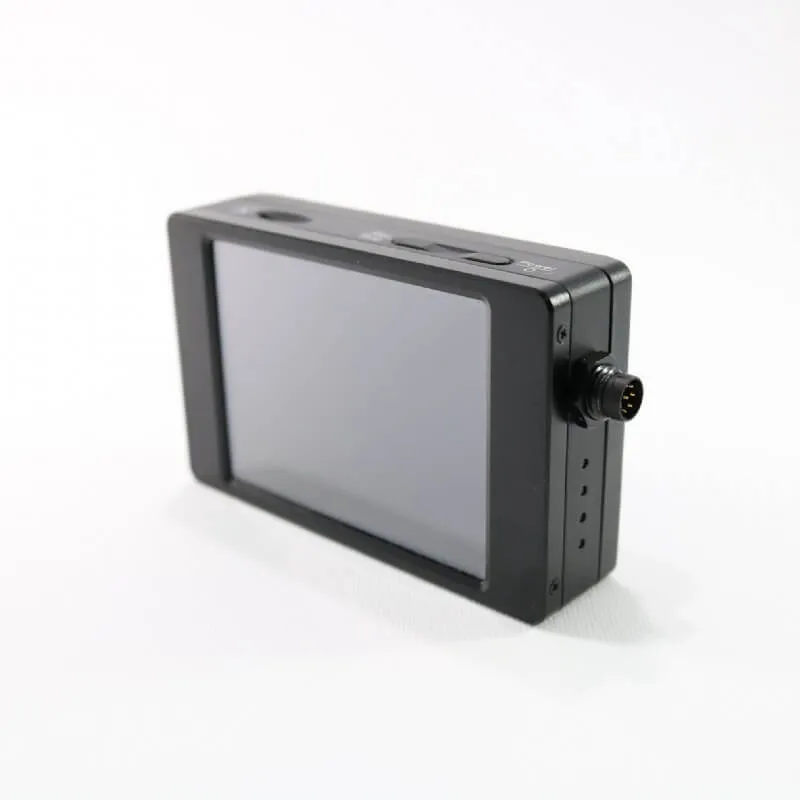

PV-500Neo (no LCD screen) and
PV-500Neo Pro (with LCD screen) are compatible with this camera, which has a Full HD 1080P resolution and makes good low light videos/photos with a sensor sensitivity of 0.1 Lux.
As with the previous Wi-Fi cam models, this one also comes with an integrated microphone and a longer cam cable. It has a 78°angle of view and is lightweight and easy to hide.
BU-18Neo Cone Full Specifications:
Built-in Image Sensor 1/2.9" progressive CMOS Sensor
Sensor Resolution 2000x1121
Pixel Size 2.8um(H) * 2.8um(V)
Digital Picture Resolution (H)1920x(V)1080
Sensor Sensitivity 0.1 Lux @ F 2.0
Lens F/No. F2.0
Focal Length 4.6mm
Angle of view 78.2°
Depth of View 50 cm ~ ∞
Electronic Shutter 1/8 ~ 1/30,000
Video Output I2C Data
Power Supply Current 220mA
Operating Temperature -10℃ ~ 60℃
Operating Humidity 20 ~ 90%
Storage Temperature -30℃ ~ 80℃
Power Input DC 3.3V± 5%
Dimension 25x25x17 mm
Weight 18 g
Note:
For more info regarding the specifications and setup of the camera, please consult the PDF files available for download below.
24 months warranty
>>Download detailed specifications (PDF)<<
