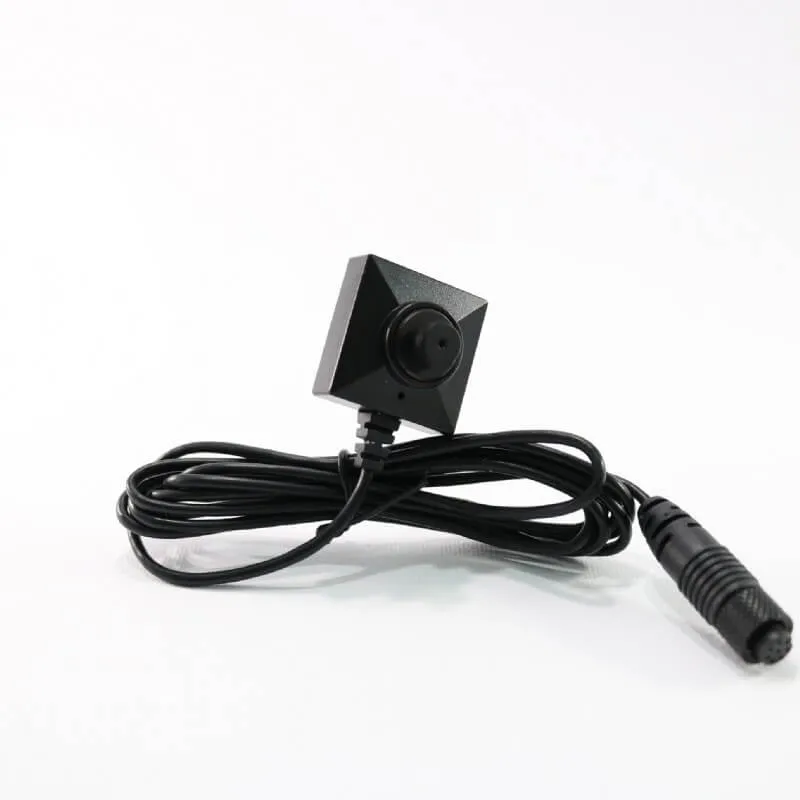

LawMate BU-18Neo is a button camera compatible with the new LawMate Wi-Fi DVRs.
Designed for the PV-500Neo
and PV-500Neo Pro
Wi-Fi DVRs, this camera provides Full HD 1080P videos/photos and has a low light recording capability of 0.1 Lux. Like the previous bestseller in the Wi-Fi Cam category, it comes with an integrated microphone and longer cable.

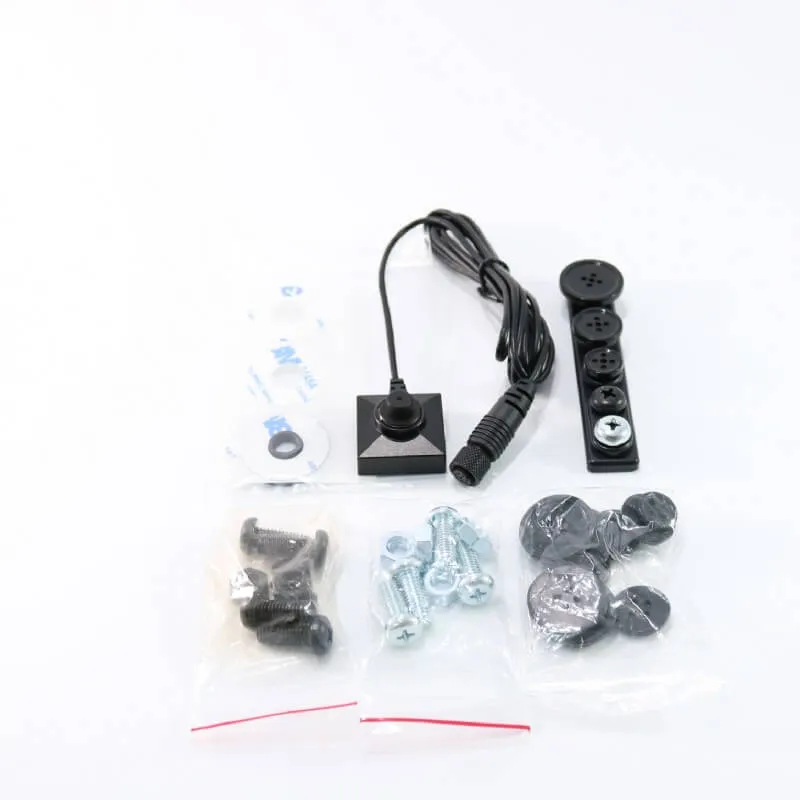

The BU-18Neo camera comes with a set of buttons and screws allowing it to be installed in multiple ways. It is very popular to use this type of LawMate camera as a wearable camera with a matching set of buttons but it is also common to install it in a steady environment using a set of screws.
The camera has a new lockable din socket which reinforces the LawMate DVR
to CAM connection, so the camera signal cannot be interrupted due to cable movement, etc.
Learn more about the LawMate
brand and its complete portfolio.
BU-18Neo Full Specifications:
Built-in Image Sensor 1/2.9" progressive CMOS Sensor
Sensor Resolution 2000x1121
Pixel Size 2.8um(H) * 2.8um(V)
Digital Picture Resolution (H)1920x(V)1080
Sensor Sensitivity 0.1 Lux @ F 2.0
Lens F/No. F2.0
Focal Length 4.3mm
Angle of view 78.2°
Depth of View 50 cm ~ ∞
Electronic Shutter 1/8 ~ 1/30,000
Video Output I2C Data
Power Supply Current 220mA
Operating Temperature -10℃ ~ 60℃
Operating Humidity 20 ~ 90%
Storage Temperature -30℃ ~ 80℃
Power Input DC 3.3V± 5%
Dimension 25x25x17 mm
Weight 18 g
For more information please study the PDF files available for download below.
24 months warranty
>>Download detailed specifications (PDF)<<
