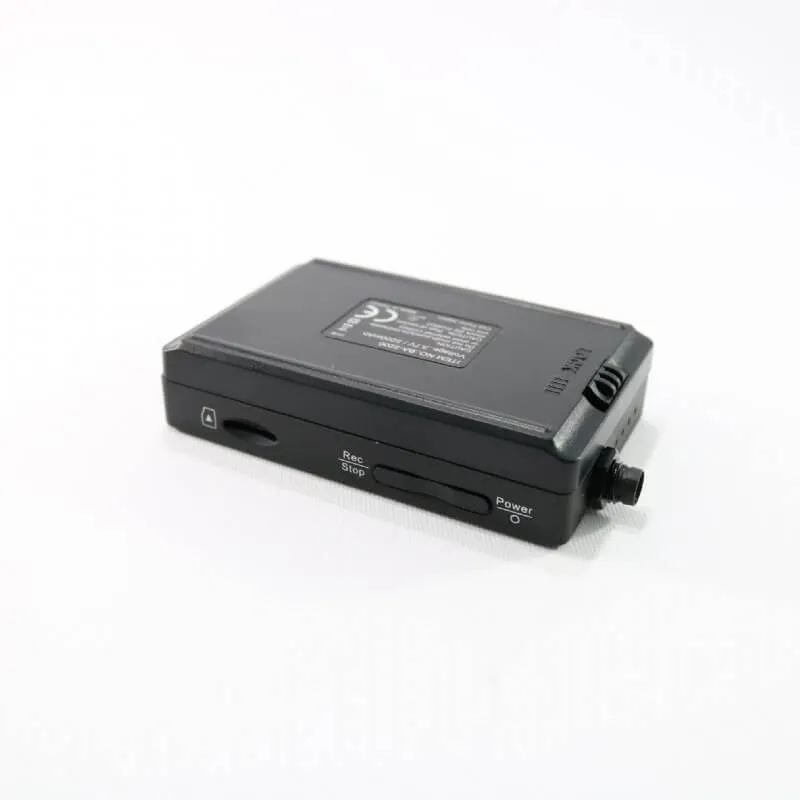

The PV-500 Neo is a portable Wi-Fi DVR from LawMate, that has a new reinforced plug for the DVR to Cam connection.
Like the previous model (PV-500HDW
) this DVR offers a Wi-Fi connection via Smartphone to the App. That way you are able to live monitor the video feed, set up the device remotely, etc.
This LawMate DVR
has no LCD screen however as it connects to your smartphone via the App, you will be always able to see what is going on.
All specs regarding the Full HD video input remained the same as in the previous model. The DVR comes with a 16 GB SD card.
Learn more about the LawMate
brand and its complete portfolio.
The PV-500Neo is compatible with:
PV-500Neo Main features:
- Reinforced Military-grade dim plug for stable CAM to DVR connection
- Full HD 1080 P
- Connect to any iOS/Android enabled device via the App and your smartphone
- Monitor the live feed, or set up the device via the App
- Download the desired video/photo footage via the App
- Records up to 160 minutes in 1080p with BA-2200
- Records up to 400 min with BA-4400
- LED indicators for Charging, Power, Recording, Wi-Fi On/Off modes
PV-500 Neo Full Specifications:Video-Input: BU-18Neo (2000*1121) CMOS Camera
Compression Algorithm: H.264, JPEG
File Format: MOV, JPG
Video Recording mode: Auto/Manual/Motion Detection/Overwrite
Recording Resolution:: 1080P/720P/WVGA
Frame Rate: Up to 30fps
Wi-Fi: Built-in Wi-Fi Module (IEEE 802.11b/g/n)
Memory type: Micro SD Card (up to 32GB SDHC)
Data interface: Mini USB 2.0
Date/Time Table: YYYY/MM/DD, HH:MM:SS
Power Input: DC 5V
Power Consumption: 380mA-440mA
Battery Lifetime: 160min @1080P Resolution with BA-2200
Dimensions: 85*54*21mm (With Battery)
Weight: 104g (With Battery)
>>Download detailed specifications (PDF)<<
Battery Lifetime with BA-2200:
- 240 min(1080P / WIFI ON)
- 270 min(1080P / WIFI OFF)
- 270 min(720P / WIFI ON)
- 300 min(720P / WIFI OFF)
- 300 min(WVGA / WIFI ON)
- 330 min(WVGA / WIFI OFF)

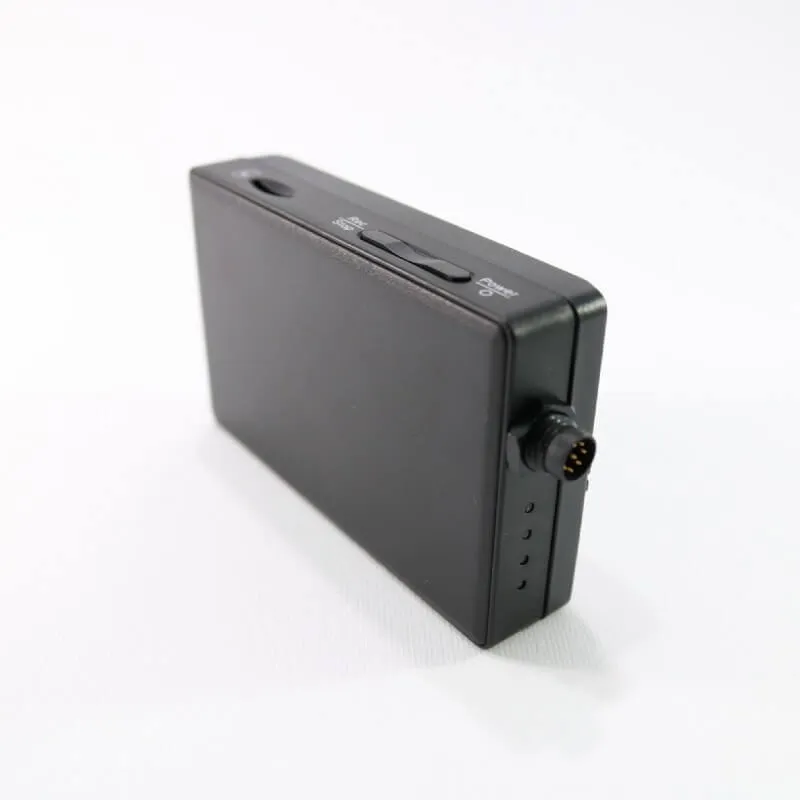

Reinforced dim plug
This military-grade plug for the CAM to DVR cable and connection guarantees that the signal issues are a problem of the past. Interruptions cannot occur anymore, no matter if you are moving while recording, or if you have hidden the unit in a hard-to-reach place.
After a couple of years of using and testing the Wi-Fi devices, we can firmly confirm that these products are great for indoor as well as short-distance outdoor covert operations.
The Wi-Fi signal covers a couple of rooms indoors, provided the signal to the router is uninterrupted, and it covers up to 100 m outdoors.
For long-distance recordings check out our IP remote recorders.
The Controller Cable allows you to use the DVR while it is in your pocket or hidden elsewhere (handbag). It is easy to use and offers multiple functions.

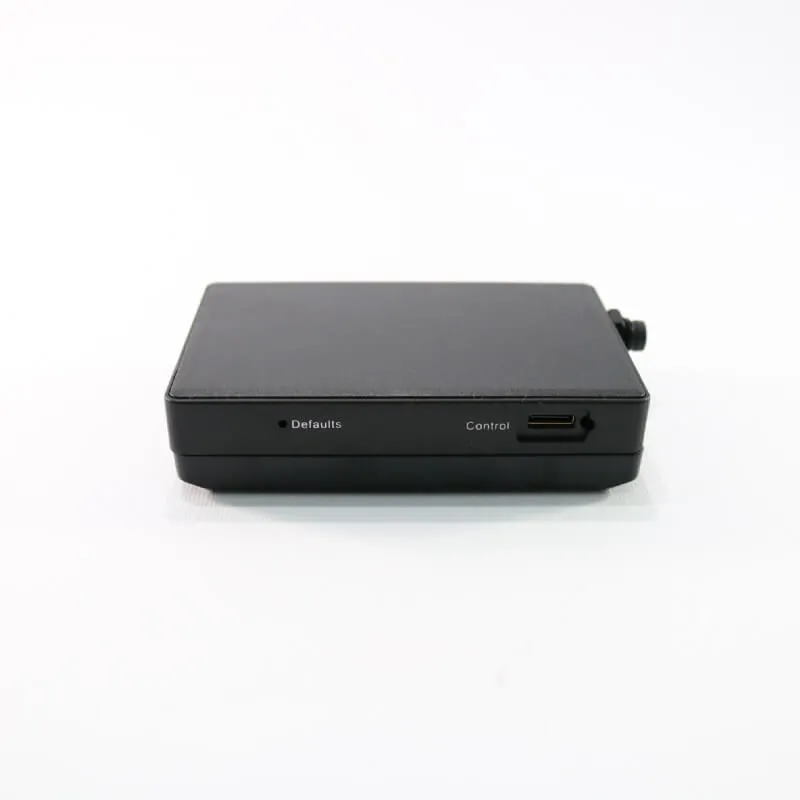

Plug in the Controller Cable into the Control port.
To turn on the device, slide the controller toggle downward and hold for 3 seconds. The device starts recording instantly. To turn off the device and stops recording, slide the controller toggle downward again and hold for 3 seconds.
To turn on Wi-Fi, slide the controller toggle downward and hold for 1 second when the Controller Cable is turned on. To turn off Wi-Fi, slide the controller toggle downward again and hold for 1 second.
PV-CAM iOS and Android apps for LawMate Wi-Fi recorders:
Google play link:
App Store link:
How to use the PV-500 Neo:
- Connect the camera to the DVR
- Make sure the SD card is inserted, and the battery is charged
- Press the power button for 3 seconds
- Press the record button if you wish to start/stop recording before connecting the DVR to Wi-Fi
- Press the power button for the second time to turn on Wi-Fi
- Connect your Android/iOS device to a Wi-Fi Network that starts with "PV-500.."
- Enter the following password in the requested field of your smartphone "88888888". You can change it later in the App settings
- You can now monitor, set up, or download your live feed.
For more details on specifications, how to use and set up the Wi-Fi connection, please study the PDF files available for download below.
24 Months Warranty
