Delta X 100/12 Counter surveillance sweeping system has an update rate of 100 MHz per second, a frequency range from 100 kHz to 12400 MHz, and a reaction time from 60 to 120 seconds.

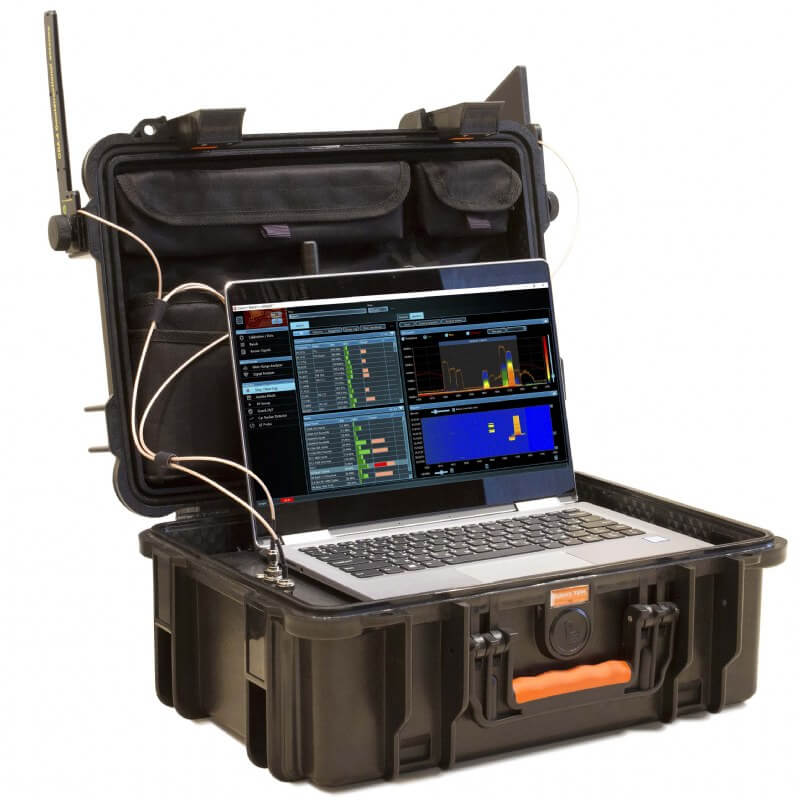

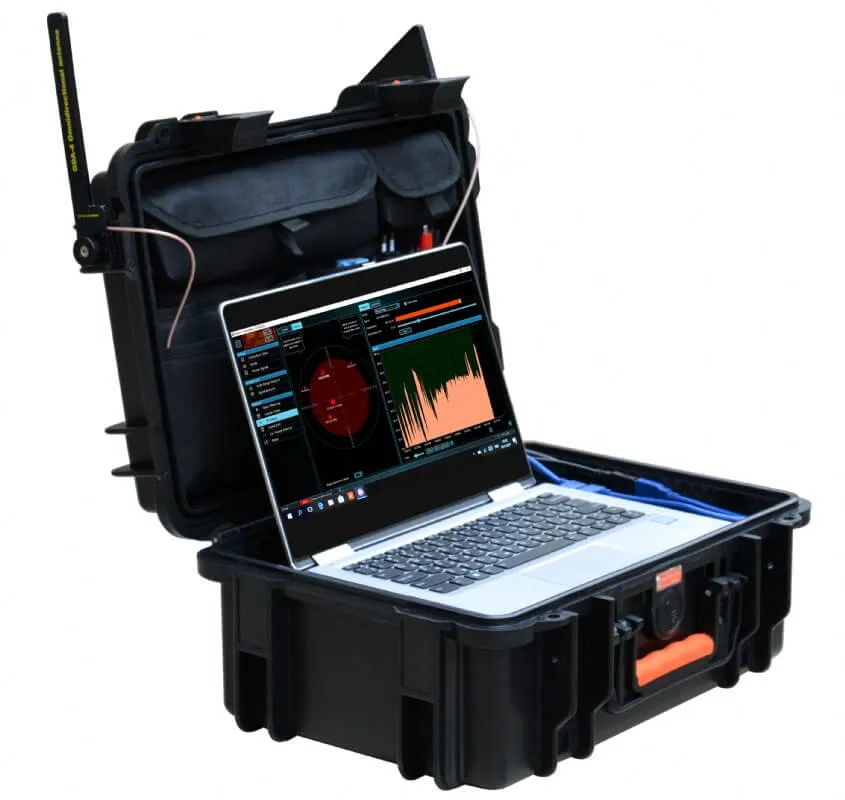

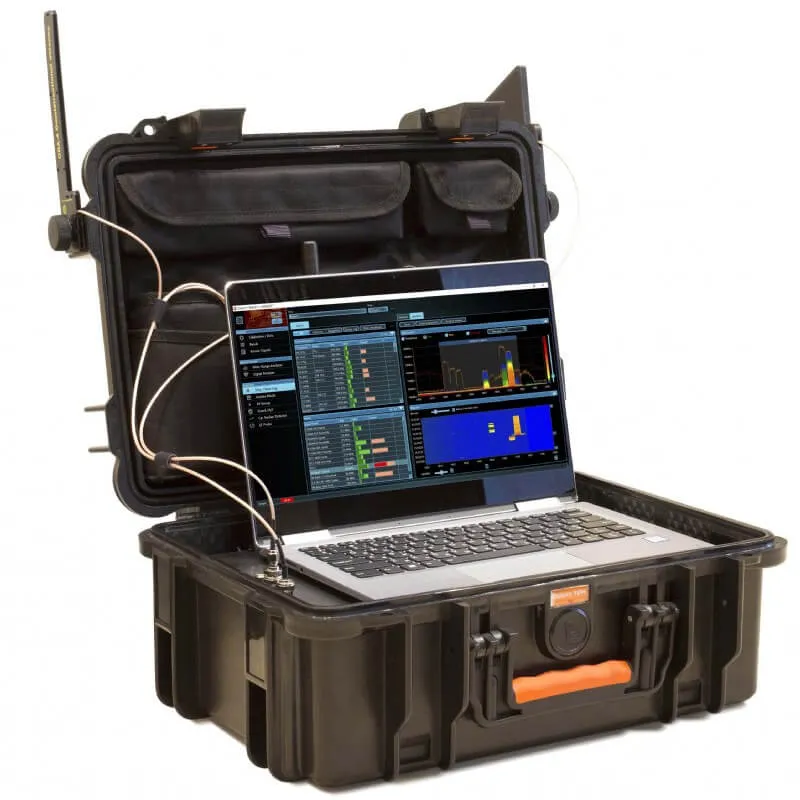

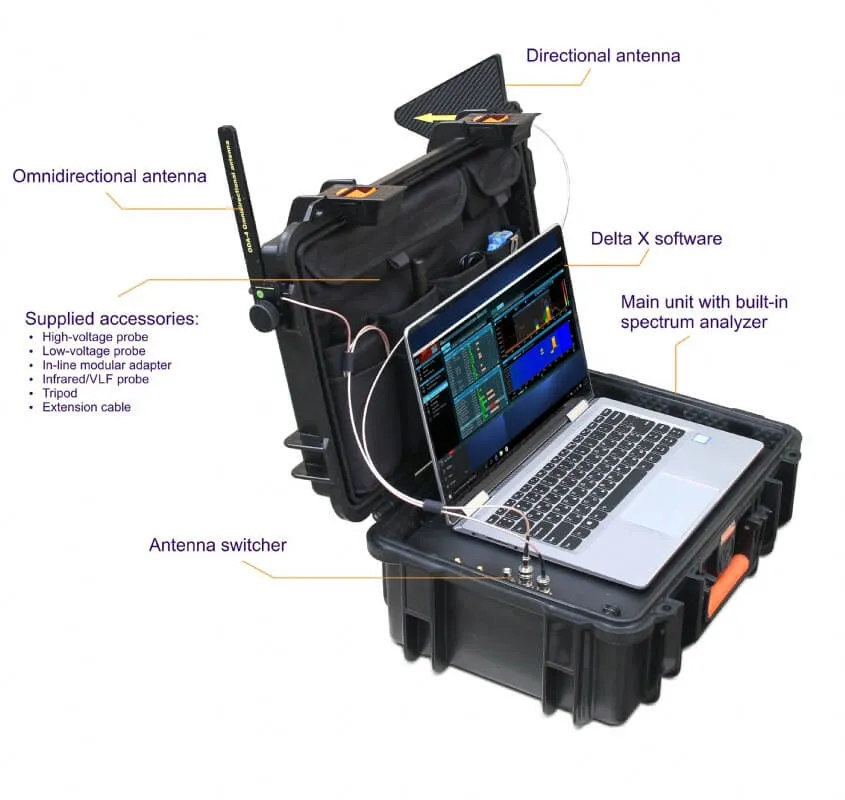

This is a highly professional, portable anti-surveillance system controlled by a laptop. The hard drive of the laptop makes full data logging possible 24/7. (It is also compatible with touch screen laptops). It detects digital signals with short bursts by accumulating data.
The device comes with new features that are available in the latest updates.
They include the updated "Alarms" graph that can now render two graphs simultaneously (general alarms, and signal alarms). Email alerts can be sent via email and a check for updates button has been added to the interface.
The Generate Report feature now allows exporting the detection results into a PDF file. The report completely describes the RF environment in the surveilled zone, by listing dangerous and non-dangerous signals. These signals are then shown in the following graphs: Alarms, Spectrogram, Waterfall, and Persistence. Here is an example of the report.
Delta X 100/12 Features:
Update rate of 100 MHz per second
Frequency range 100 kHz – 12400 MHz
Reaction time: 60-120 seconds
Detects digital signals with short bursts by accumulating data
Quickly and reliably detects all kinds of RF listening devices, including analog, digital, constantly existing and intermittent, sending audio or video, with or without encryption
Finds hidden surveillance devices employing the digital standards GSM, 3G, 4G/LTE, 5G(<6GHz), Bluetooth, Wi-Fi, DECT, etc.
Detects illegal information transmission in AC, telephone, Ethernet, alarm and other wires as well as in the infrared range with the help of the supplied Multifunction Probe
Can work in instant detection mode, guarding mode, locating mode and car tracker detection
Has a 20-50 times higher sensitivity and detection distance compared to conventional RF detectors and near-field receivers
Can monitor the RF environment 24 hours a day with data logging
Capable of detecting covert bugging devices with an accumulation function and transmitters hidden within the spectrums of other signals
Supports storage of an unlimited quantity of signals. Full information is stored in the log and can be reviewed during the detection, or at a later time. Multiple logs are supported.
Demodulation of audio in FM, AM, USB, LSB, CW (adjustable BW 3…240 kHz)
Alarm relay output can activate external devices when a dangerous signal is detected (turn on a CCTV system, for example)

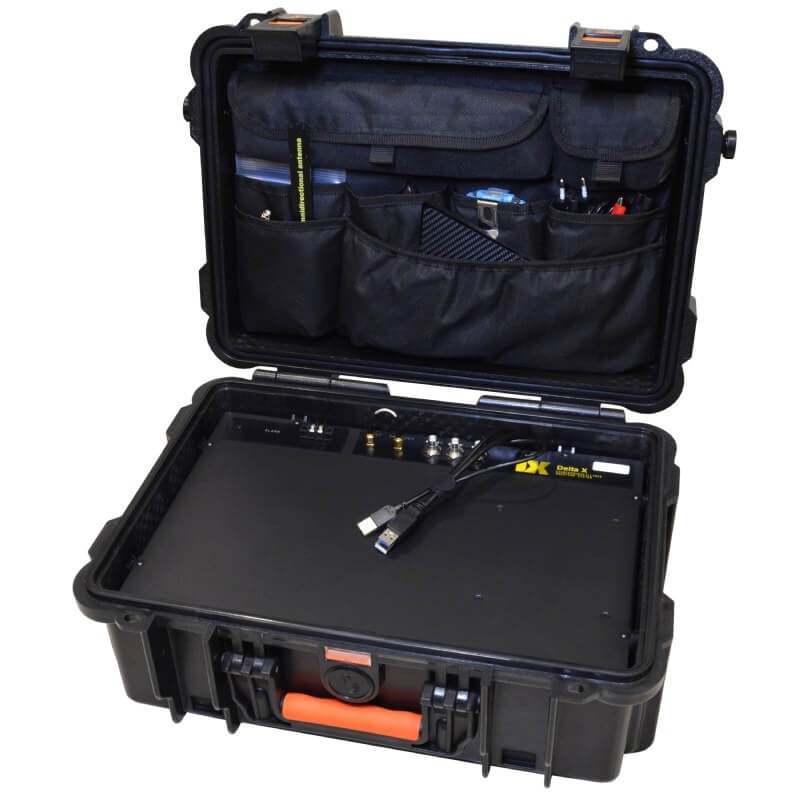

Comes in a protected case that allows you to place a 13-14” laptop inside (not included in the supplied set)
Powered from the laptop’s USB
Delta X 100/12 Specification
Update rate: 100 MHz/sec
Frequency range: 100 kHz - 12400 MHz
Time of detection (Minimal time of signal’s existence needed for its detection): 60-120 seconds
Spectrum resolution: 15 kHz
Occupied disk space per 24 hours: 1 Gb
Temperature Range: 0°C to +50°C
Demands on the computer (not included in the supplied set): Intel® Atom™ N2600 or Intel® Core™ i3; 2 x USB 2.0; Windows 7, 8, 10
