Delta X 100/12 Counter surveillance sweeping system
9.190,00  EUR  ex VAT
11.487,50  EUR  inc VAT
Stock in 15 days
14 day refund
24 month warranty
Disclaimer: Items on the website are not be used for the purpose of illegal surveillance of unsuspecting subjects. The items are to be used only in compliance with all the local laws and regulations under the threat of penalty.

Delta X 100/12 Counter surveillance sweeping system has an update rate of 100 MHz per second, a frequency range from 100 kHz to 12400 MHz, and a reaction time from 60 to 120 seconds.

This is a highly professional, portable anti-surveillance system controlled by a laptop. The hard drive of the laptop makes full data logging possible 24/7. (It is also compatible with touch screen laptops). It detects digital signals with short bursts by accumulating data.

The device comes with new features that are available in the latest updates
They include the updated "Alarms" graph that can now render two graphs simultaneously (general alarms, and signal alarms). Email alerts can be sent via email and a check for updates button has been added to the interface.

The Generate Report feature now allows exporting the detection results into a PDF file. The report completely describes the RF environment in the surveilled zone, by listing dangerous and non-dangerous signals. These signals are then shown in the following graphs: Alarms, Spectrogram, Waterfall, and Persistence. Here is an example of the report.


Delta X 100/12 Features:

  • Update rate of 100 MHz per second
  • Frequency range 100 kHz – 12400 MHz
  • Reaction time: 60-120 seconds
  • Detects digital signals with short bursts by accumulating data
  • Quickly and reliably detects all kinds of RF listening devices, including analog, digital, constantly existing and intermittent, sending audio or video, with or without encryption
  • Finds hidden surveillance devices employing the digital standards GSM, 3G, 4G/LTE, 5G(<6GHz), Bluetooth, Wi-Fi, DECT, etc.
  • Detects illegal information transmission in AC, telephone, Ethernet, alarm and other wires as well as in the infrared range with the help of the supplied Multifunction Probe
  • Can work in instant detection mode, guarding mode, locating mode and car tracker detection
  • Has a 20-50 times higher sensitivity and detection distance compared to conventional RF detectors and near-field receivers
  • Can monitor the RF environment 24 hours a day with data logging
  • Capable of detecting covert bugging devices with an accumulation function and transmitters hidden within the spectrums of other signals
  • Supports storage of an unlimited quantity of signals. Full information is stored in the log and can be reviewed during the detection, or at a later time. Multiple logs are supported.
  • Demodulation of audio in FM, AM, USB, LSB, CW (adjustable BW 3…240 kHz)
  • Alarm relay output can activate external devices when a dangerous signal is detected (turn on a CCTV system, for example)
  • Comes in a protected case that allows you to place a 13-14” laptop inside (not included in the supplied set)
  • Powered from the laptop’s USB

Delta X 100/12 Specification

Update rate: 100 MHz/sec
Frequency range: 100 kHz - 12400 MHz
Time of detection (Minimal time of signal’s existence needed for its detection): 60-120 seconds
Spectrum resolution: 15 kHz
Occupied disk space per 24 hours: 1 Gb
Temperature Range: 0°C to +50°C
Demands on the computer (not included in the supplied set): Intel® Atom™ N2600 or Intel® Core™ i3; 2 x USB 2.0; Windows 7, 8, 10
Displayed dynamic range: -90…-10 dBm
Displayed spectrum spans: 0.5, 1, 2, 5, 10, 25, 50, 100, 200, 500, 1000, 2000, 3000, 6000 MHz
Spectrum graphs: Spectrogram, Waterfall
Spectrogram’s displayed data: Persistence, Live, Max, Threshold
Detector’s modes: Wide-Range, Signal, Selection
Updated spectrum span: RF Sweep, Guard 24/7: broadband Signal Analyzer: displayed, selected, real-time Car Tracker Detector: mobile bands
Fields of ‘Signals’ table: Frequency, Bandwidth, Name, dbm Level, dbm Peak Level, Danger Level, Peak Danger Level
Fields of ‘Bands’ table: Begin, End, Name, Type, Threshold, Priority, Tracker detection
Fields of ‘Known Signals’ table: Frequency, BW, Name, Modulation

Delta X main model differences:

Delta X 2000/6 Real-Time Counter surveillance sweeping system

  • High update rate with 2000-3000 MHz per second
  • Frequency range 40 kHz – 6000 MHz
  • Detected signal's existence time: 2-3 seconds

Delta X 100/12 Counter surveillance sweeping system

  • Update rate 100 MHz per second
  • Frequency range 100 kHz – 12400 MHz
  • Detected signal's existence time: 60-120 seconds

Delta X 100/4 Counter surveillance sweeping system

  • Update rate 100 MHz per second
  • Frequency range 40 kHz – 4400 MHz
  • Detected signal's existence time: 45 seconds

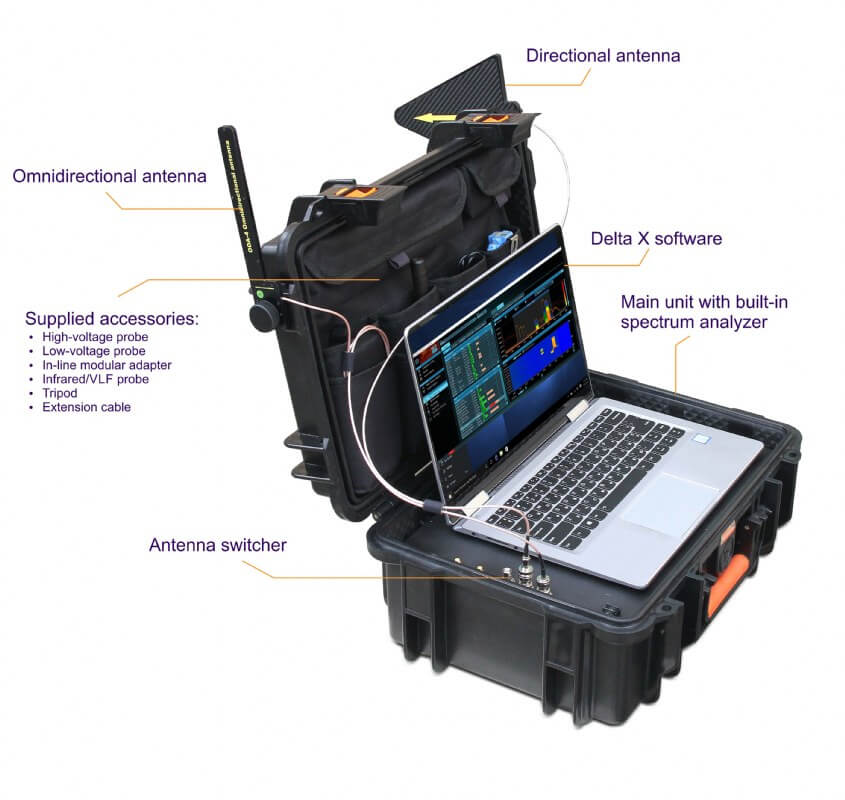

Package contents:

  • Main unit with the built-in spectrum analyzer and RF switcher
  • Software Delta X on the USB flash memory
  • ODA-4 - omnidirectional wideband antenna

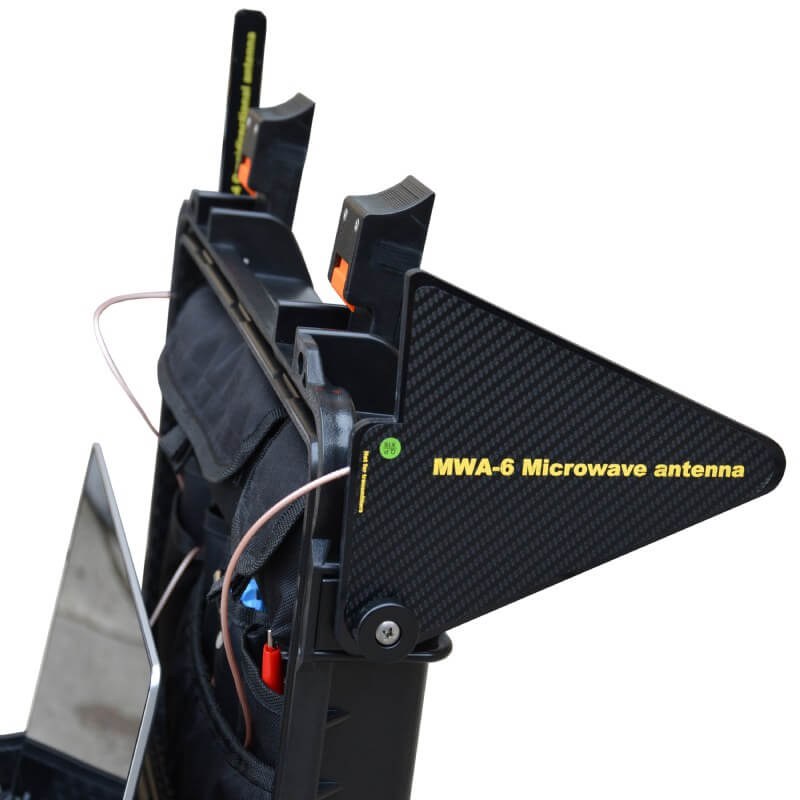

  • MWA-6 - microwave antenna
  • MWA-12 - microwave antenna
  • Multifunction Probe with cables
  • Coaxial low-attenuation cable 5 m
  • In-line modular adapter
  • Tripod convertible to handle
  • Set of accessories (case's cover lock, angle USB adapters, BNC-to-SMA and SMA-to-BNC adapters)

How to use the Delta X:








Note:

For more information on the specifications, how to setup the device, and the package contents, please carefully read the documents available for download below.

24 Months Warranty

>>Download detailed specifications (PDF)<<
