Digiscan Labs

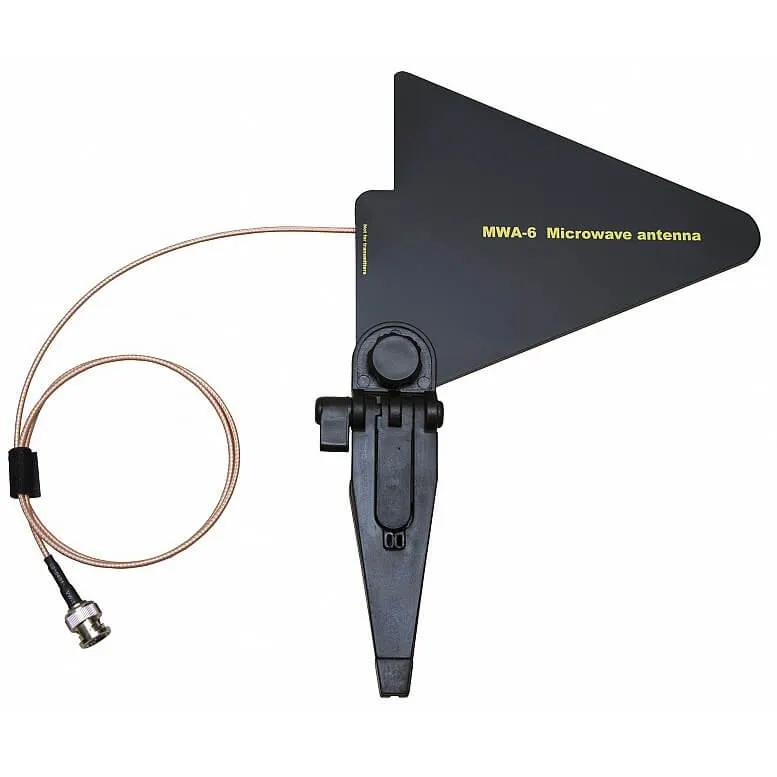

MWA-6 Microwave antenna for Protect 1206i and 1207i
-10%
156,38  EUR  inc VAT
Ready for delivery
14 day refund
24 month warranty

The MWA-6 microwave antenna is compatible with Delta 4G/12G, Protect 1206i and Protect 1207i.

Furthermore, it can be used with any RF equipment, including receivers, spectrum analyzers, RF detectors, etc.

Is particularly good for the location of GSM, CDMA, 3G, 4G (LTE, Wi-Max), Wi-Fi 2.4GHz, Bluetooth, Wi-Fi 5GHz, DECT, and other digital transmissions.
It is designed for indoor use.

Find all Digiscan Labs products at this link.

MWA-6 Specifications:

Frequency range 800-6500 MHz
Directed (log-periodic)
Typical forward gain: 6 dBi

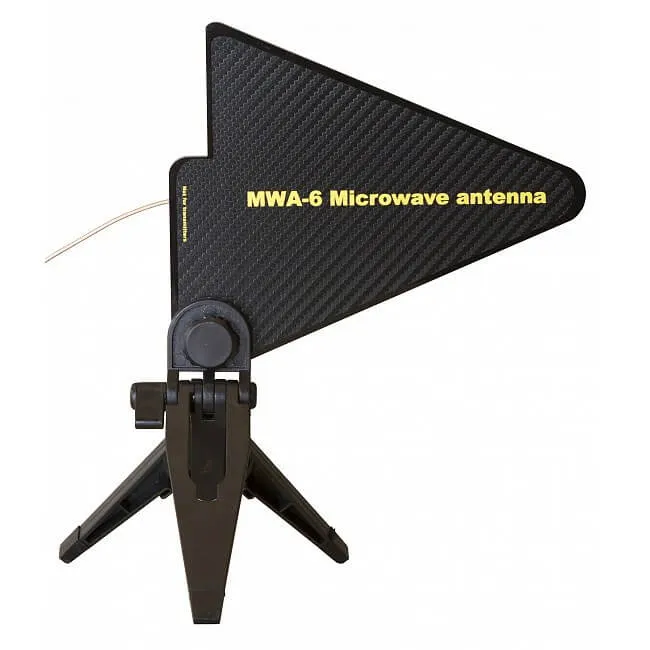

Tripod mountable (tripod supplied)
The tripod can convert to a hand-held unit for manual probing (locating procedure)
Connector type: SMA
80 cm cable
Dimensions (without tripod) 18 x 14.5 x 0.7 cm
Mode of use: receive
Indoor use only

Usage with Protect 1206i

The Micro pointer antenna that comes with the Protect 1206i, covers frequencies starting from 2GHz. This antenna allows reception starting from 800 MHz, which means that it can increase the detection distance for the following signals:
CDMA, low LTE, GSM 900, GSM 1800, GSM 1900.

Usage with Protect 1207i

Paired with the Protect 1207i, the antenna will increase the detection distance at least 2 times! Compared to the standard rod antenna it will increase its directivity and help in pinpointing the source. Once the antenna points to the source, the signal level will be the highest.

Connect the antenna to the right red socket (remove the red rod antenna that comes with the device first) and you will be able to use the MWA-6 for the following channels:
LTE-L, GSM 900, GSM 1800, 3G, DECT, Wi-Fi, L/Bluetooth.

Connect the antenna to the left blue socket (remove the blue rod antenna that comes with the device first) and you will be able to increase the sensitivity of the 6th channel:
LTE-h, Wi-Fi-h, Mi-Max.

When used like this, the sensitivity will increase and the bar graphs may show full lighting. Because of that, the Attenuator function will be of help to you during the pinpointing of the source.


MWA-6 Microwave antenna for Protect 1206i and 1207i FAQs


Can the MWA-6 antenna be used with equipment other than the specified models?
Yes, the MWA-6 antenna can be used with any RF equipment, including receivers, spectrum analyzers, and RF detectors. Its versatility makes it suitable for a wide range of applications beyond the specified models, enhancing its utility in detecting various digital transmissions. This broad compatibility ensures that users can integrate the antenna into their existing setups without compatibility issues.


How do you connect the MWA-6 antenna to the Protect 1206i and 1207i?
To connect the MWA-6 antenna, remove the existing red or blue rod antenna from the Protect 1206i or 1207i and attach the MWA-6 to the appropriate red or blue socket. This connection process is straightforward and enhances the device’s sensitivity and signal detection capabilities. By following these simple steps, users can significantly improve their device’s performance in detecting various signals.


How does the MWA-6 antenna enhance the functionality of the Protect 1206i?
When used with the Protect 1206i, the MWA-6 antenna allows reception starting from 800 MHz, increasing the detection distance for signals like CDMA, low LTE, and GSM bands. This enhancement over the Micro pointer antenna that comes with the Protect 1206i allows for more effective signal detection and analysis. The ability to detect signals from a lower frequency range significantly improves the device’s utility in various detection scenarios.


What additional feature might be useful when using the MWA-6 antenna for pinpointing sources?
The Attenuator function becomes particularly useful when using the MWA-6 antenna to pinpoint the source of signals. This function helps manage the increased sensitivity and signal strength, making it easier to locate the precise source of transmissions. The ability to adjust sensitivity through the Attenuator function enhances the user’s ability to conduct detailed and accurate signal analysis.


What channels can the MWA-6 antenna enhance when connected to the right red socket?
When connected to the right red socket, the MWA-6 antenna enhances the sensitivity for LTE-L, GSM 900, GSM 1800, 3G, DECT, Wi-Fi, and L/Bluetooth channels. This connection increases the device’s ability to detect and analyze signals within these specific channels. The enhanced sensitivity allows for more accurate and efficient signal detection, aiding users in their signal analysis tasks.


What devices is the MWA-6 antenna compatible with?
The MWA-6 antenna is compatible with Delta 4G/12G, Protect 1206i, and Protect 1207i. It is designed to enhance the functionality of these devices by improving signal detection and directivity. This compatibility allows users to utilize the antenna across a range of RF equipment for more efficient signal location and analysis.


What improvements does the MWA-6 antenna bring to the Protect 1207i?
Paired with the Protect 1207i, the MWA-6 antenna increases the detection distance at least 2 times compared to the standard rod antenna, improving its directivity and aiding in pinpointing the source. This enhancement allows for more precise location of signal sources, making the Protect 1207i more effective in its operation. The increased directivity and detection distance make it a valuable tool for users requiring detailed analysis and location of RF signals.


What is the effect of connecting the MWA-6 antenna to the left blue socket?
Connecting the MWA-6 antenna to the left blue socket increases the sensitivity of the 6th channel, including LTE-h, Wi-Fi-h, and Mi-Max. This connection improves the device’s performance in detecting high-frequency signals, making it more effective in a broader range of detection scenarios. The increased sensitivity can lead to full lighting of the bargraphs, indicating a strong signal detection.


What types of signals is the MWA-6 particularly good at locating?
The MWA-6 is particularly effective at locating GSM, CDMA, 3G, 4G (LTE, Wi-Max), Wi-Fi 2.4GHz, Bluetooth, Wi-Fi 5GHz, DECT, and other digital transmissions. Its design focuses on indoor use, making it ideal for detecting a wide range of signal types within enclosed spaces. This capability ensures comprehensive coverage and detection of prevalent communication signals.


Where can I find more information or a detailed user manual for the MWA-6 antenna?
More information and a detailed user manual for the MWA-6 antenna can be found by downloading the PDF from the bottom of this page. This resource provides comprehensive details on the antenna’s features, specifications, and usage, offering valuable guidance for users. Accessing this manual ensures that users can fully understand and utilize the capabilities of the MWA-6 antenna.

Note:

For more information on the sweeping parameters, please read the user manual PDF available for download below.

Warranty 24 Months

>>Download detailed specifications (PDF)<<
