Delta X 100/4 Counter surveillance sweeping system offers an updated rate of 100 MHz per second, a frequency range from 40 kHz to 4400 MHz, and a 45 seconds reaction time.
Delta X 100/4 is out of stock, however, please find here the replacement models:
Delta X G2/6 - handheld counter-surveillance sweeping system featuring a frequency range from 1 MHz to 6 GHz, sweep time of only 2-3 seconds, and simultaneous detection and location of transmitters
Delta X G2/12 - handheld counter-surveillance sweeping system featuring a frequency range from 1 MHz to 6 GHz, multiple working modes, and simultaneous detection and location of transmitters
Delta S - handheld counter-surveillance sweeping system with an update time of 0.8 seconds in full range, frequency range of 57-6000 MHz, and ability to detect RF jammers.

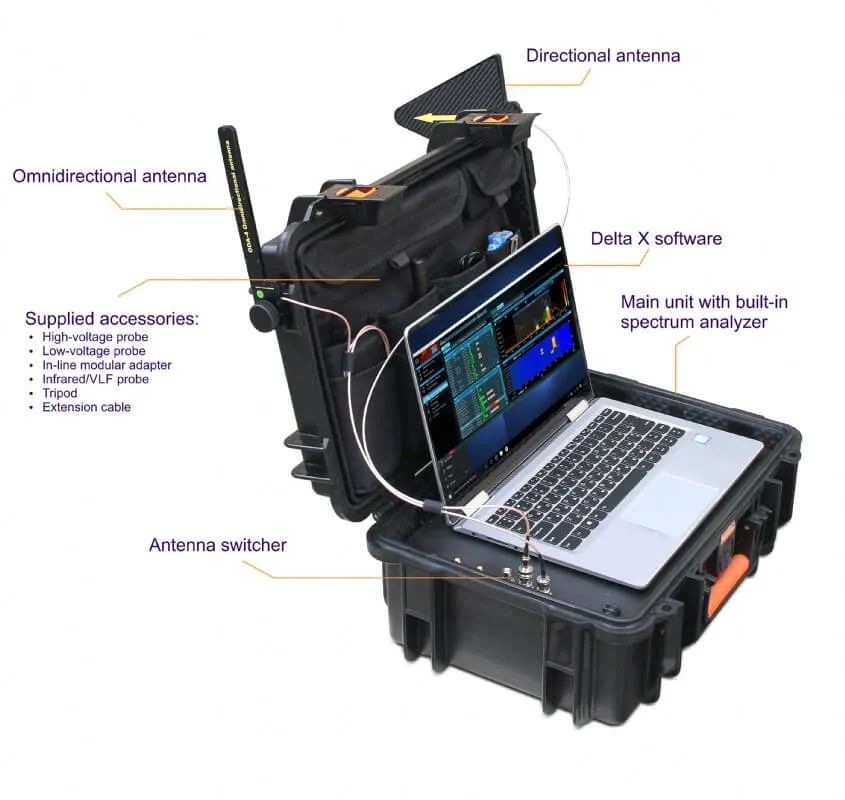

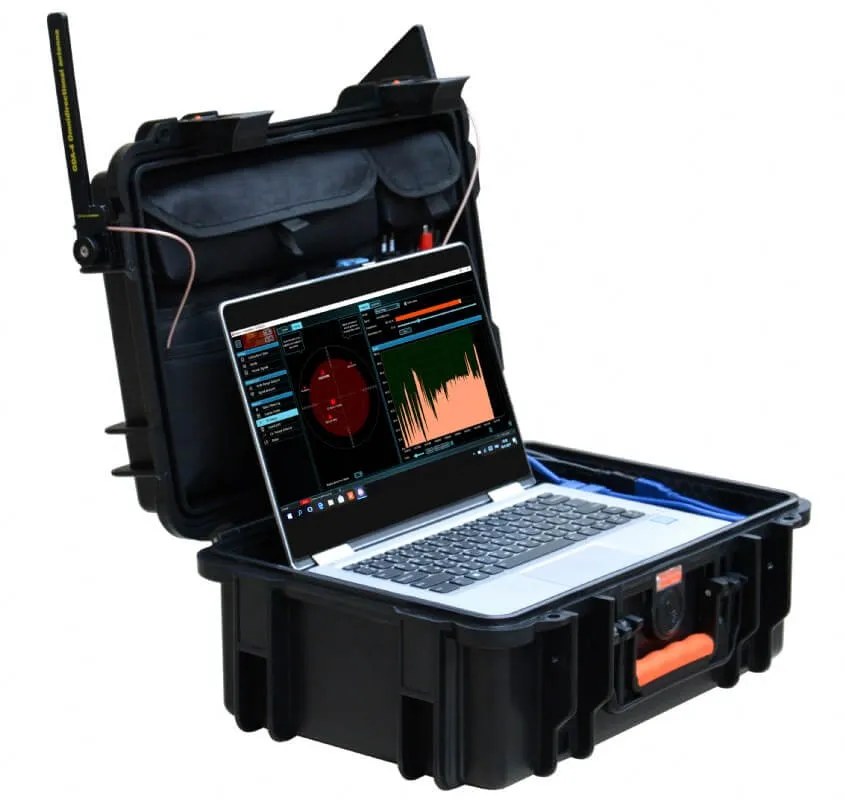

This is a highly professional, portable anti-surveillance system controlled by a laptop. The hard drive of the laptop makes full data logging possible 24/7. (It is also compatible with touch screen laptops). It detects digital signals with short bursts by accumulating data.
The device comes with new features that are available in the latest updates.
They include the updated "Alarms" graph that can now render two graphs simultaneously (general alarms, and signal alarms). Email alerts can be sent via email and a check for updates button has been added to the interface.
The Generate Report feature now allows exporting the detection results into a PDF file. The report completely describes the RF environment in the surveilled zone, by listing dangerous and non-dangerous signals. These signals are then shown in the following graphs: Alarms, Spectrogram, Waterfall, and Persistence. Here is an example of the report.
Learn more about complete counter surveillance equipment available at SpyShopEurope.com.
Detects digital signals with short bursts by accumulating data
Quickly and reliably detects all kinds of RF listening devices, including analog, digital, constantly existing and intermittent, sending audio or video, with or without encryption
Finds hidden surveillance devices employing the digital standards GSM, 3G, 4G/LTE, 5G(<6GHz), Bluetooth, Wi-Fi, DECT, etc.
Detects illegal information transmission in AC, telephone, Ethernet, alarm and other wires as well as in the infrared range with the help of the supplied Multifunction Probe
Can work in instant detection mode, guarding mode, locating mode and car tracker detection
Has a 20-50 times higher sensitivity and detection distance compared to conventional RF detectors and near-field receivers
Can monitor the RF environment 24 hours a day with data logging
Capable of detecting covert bugging devices with an accumulation function and transmitters hidden within the spectrums of other signals
Supports storage of an unlimited quantity of signals. Full information is stored in the log and can be reviewed during the detection, or at a later time. Multiple logs are supported.
Demodulation of audio in FM, AM, USB, LSB, CW (adjustable BW 3…240 kHz)
Alarm relay output can activate external devices when a dangerous signal is detected (turn on a CCTV system, for example)

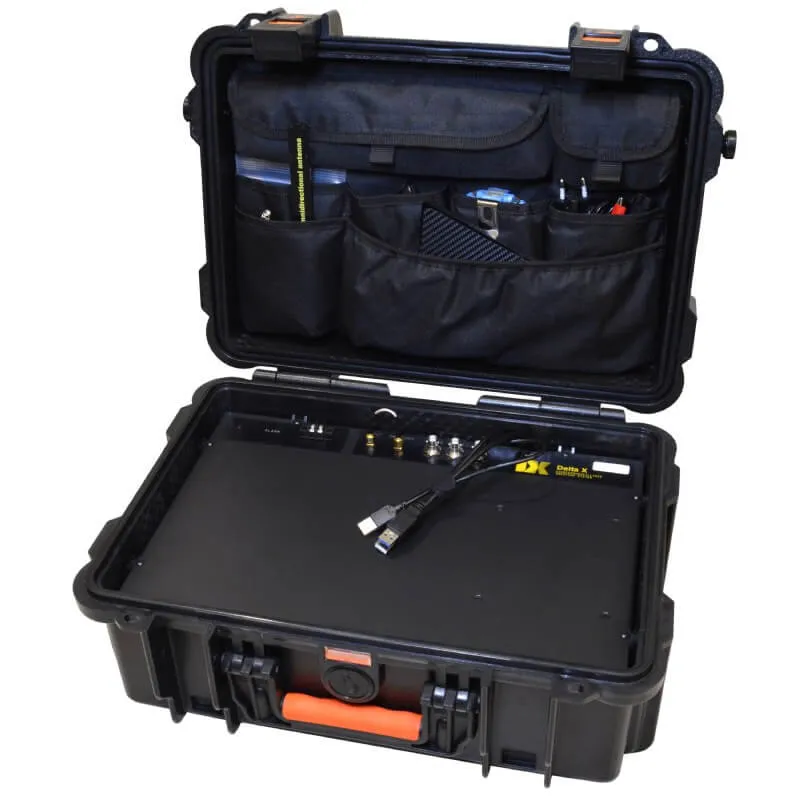

Comes in a protected case that allows you to place a 13-14” laptop inside (not included in the supplied set)
Powered from the laptop’s USB
Delta X 100/4 Specifications:
Update rate: 100 MHz/sec
Frequency range: 40 kHz - 4400 MHz
Time of detection (Minimal time of signal’s existence needed for its detection): 45 seconds
Spectrum resolution: 15 kHz
Occupied disk space per 24 hours: 0.5 Gb
Temperature Range: 0°C to +70°C
Demands on the computer (not included in the supplied set): Intel® Atom™ N2600 or Intel® Core™ i3; 2 x USB 2.0; Windows 7, 8, 10
Set of accessories (case's cover lock, angle USB adapters, BNC-to-SMA and SMA-to-BNC adapters)
Delta X 100/4 Counter surveillance sweeping system FAQs
Are there any replacement models available for the Delta X 100/4? Yes, replacement models for the Delta X 100/4 include the Delta X G2/6 and Delta X G2/12 handheld counter-surveillance sweeping systems, and the Delta S handheld system. These models offer different features, such as varying frequency ranges and sweep times, providing alternatives for different counter-surveillance needs. Can the Delta X 100/4 detect signals transmitted through wires? Yes, the Delta X 100/4 can detect illegal information transmission in AC, telephone, Ethernet, alarm, and other wires as well as in the infrared range with the help of the supplied Multifunction Probe. This capability allows for a comprehensive sweep of both wireless and wired surveillance devices, enhancing security measures. How is the Delta X 100/4 powered? The Delta X 100/4 is powered from the laptop’s USB. This convenient power source makes the system portable and easy to use in various locations, as it does not require a separate power supply, only a connection to a compatible laptop. How long is the reaction time of the Delta X 100/4? The reaction time of the Delta X 100/4 is 45 seconds. This means the system can detect signals and potentially identify surveillance devices within this timeframe, making it a reliable tool for counter-surveillance measures. The reaction time is crucial for accumulating data on digital signals with short bursts.
Is the Delta X 100/4 capable of data logging? Yes, the Delta X 100/4 is capable of monitoring the RF environment 24 hours a day with data logging. This feature, facilitated by connection to a laptop, allows for continuous recording of signal data, which can be reviewed during detection or at a later time, providing a comprehensive overview of the RF environment. What is the frequency range of the Delta X 100/4 Counter surveillance sweeping system? The Delta X 100/4 has a frequency range from 40 kHz to 4400 MHz. This wide range allows it to detect a variety of RF listening devices, including those operating on GSM, 3G, 4G/LTE, 5G (below 6GHz), Bluetooth, Wi-Fi, and DECT standards. It’s designed to uncover hidden surveillance devices across a broad spectrum of frequencies.
What is the purpose of the "Generate Report” feature in the Delta X 100/4? The "Generate Report” feature allows exporting the detection results into a PDF file, which completely describes the RF environment in the surveilled zone by listing dangerous and non-dangerous signals. This feature aids in documenting and analyzing detected signals for further investigation or evidence, providing valuable insights into the surveillance activities within the area.
What is the update rate of the Delta X 100/4 system? The update rate of the Delta X 100/4 is 100 MHz per second. This rapid update rate enables the system to quickly and reliably detect all kinds of RF listening devices, including analog and digital, constant and intermittent signals, whether they are transmitting audio or video, encrypted or not. It ensures efficient and timely detection of surveillance devices.
What kind of antennas come with the Delta X 100/4 package?

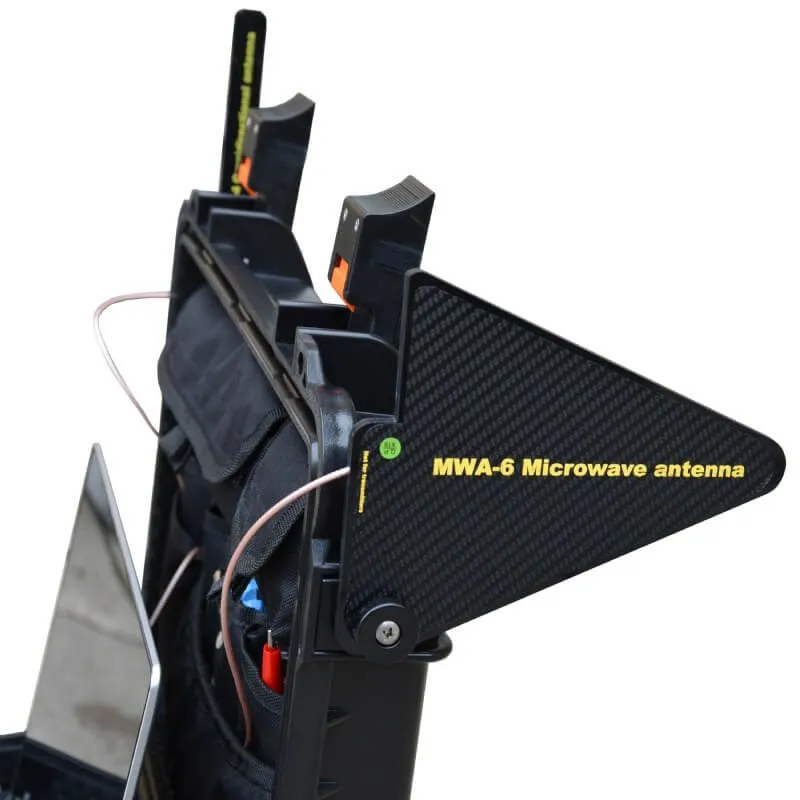

The Delta X 100/4 package includes an ODA-4 omnidirectional wideband antenna and an MWA-6 microwave antenna. These antennas are designed to enhance the detection capabilities of the system across its wide frequency range, ensuring effective surveillance device detection in various environments.
Note:
For more information on the specifications, how to set up the device, and the package contents, please carefully read the documents available for download below.
