OSCOR MAX is a next-generation portable spectrum analyzer with a frequency range up to 43 GHz, designed for professional TSCM operations.
The new OSCOR Max is engineered to detect, analyze, and locate electronic transmitters across an exceptionally wide frequency range, from 10 KHz to 43 GHz, making it suitable for high-level counter-surveillance, technical inspections, and secure facility sweeps.
OSCOR Max provides continuous, real-time visibility of the RF environment using a fully integrated auto-switching antenna system. The antenna system performs 125 antenna switches per second, so the analyzer is at all times ready for detection of any signal within the range. It has an impressive sweep speed of 1100 GHz/second for the full 43GHz span at 25.6 times per second. A wide 125 MHz instantaneous bandwidth (IBW) allows detailed signal analysis without the need for additional external equipment. These features allow you to identify known, unknown, intermittent, and low-power signals across traditional RF, Wi-Fi, Bluetooth, and other modern wireless technologies, making the OSCOR Max suitable for counter-surveillance inspections in government facilities, corporate offices, secure areas, and mobile environments.
The system supports advanced analysis tools such as RF mapping, trace storage and comparison, masking functions, persistence, raster waterfall, long-term spectrograms, and 3D spectrogram views, providing you with multiple analysis perspectives for identifying any suspicious transmissions. Integrated I/Q data recording enables post-analysis and advanced signal evaluation.
OSCOR Max SmartBars
For near-field and non-RF detection tasks, OSCOR MAX comes supplied with a Multi-Purpose Probe (MPP) which enables detection of:
- Carrier current
- Infrared
- Visible light
- Ultrasonic
- Coaxial coupling
- Magnetic leakage
This allows detection of wired, optical, acoustic, and non-traditional transmitters, in addition to standard RF threats.

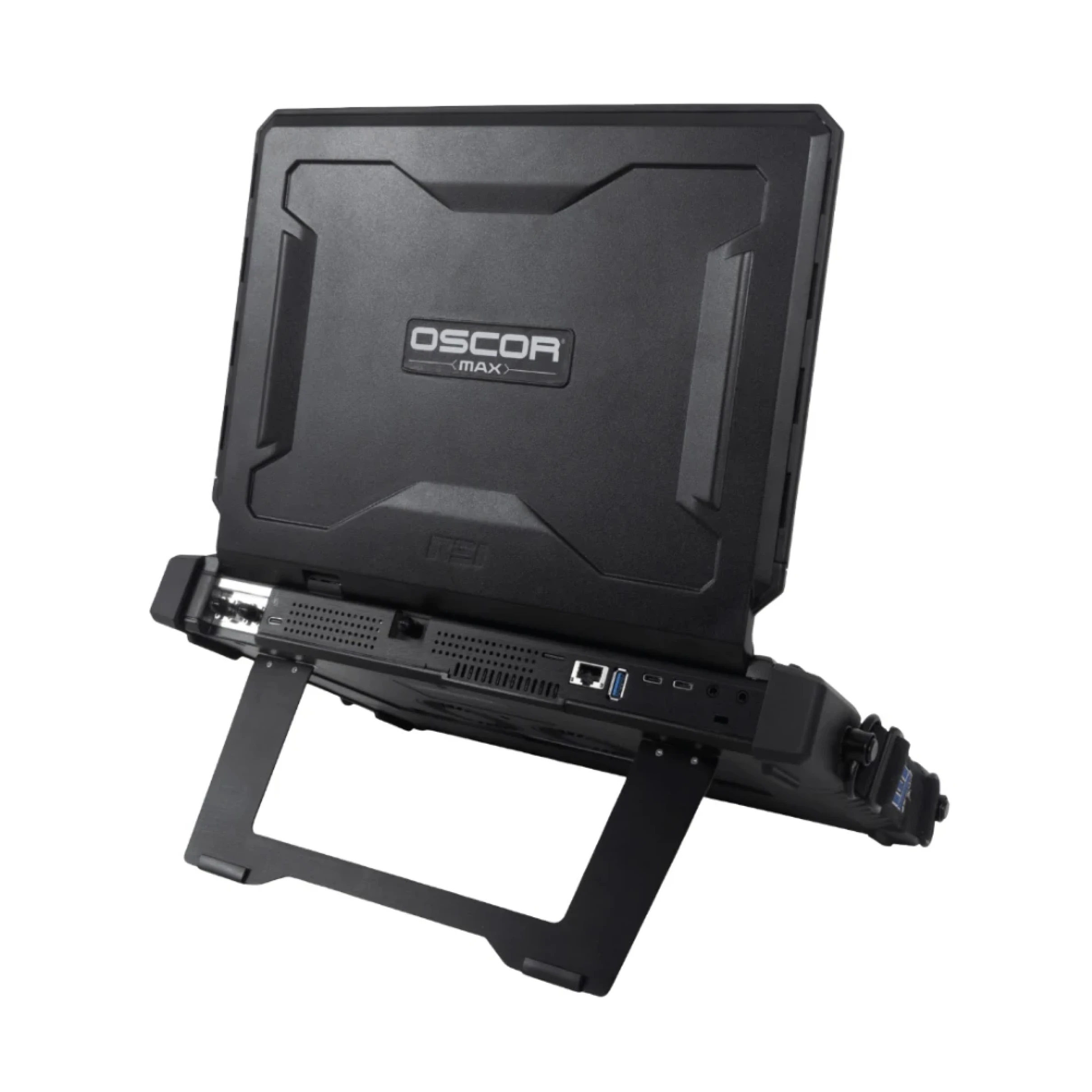

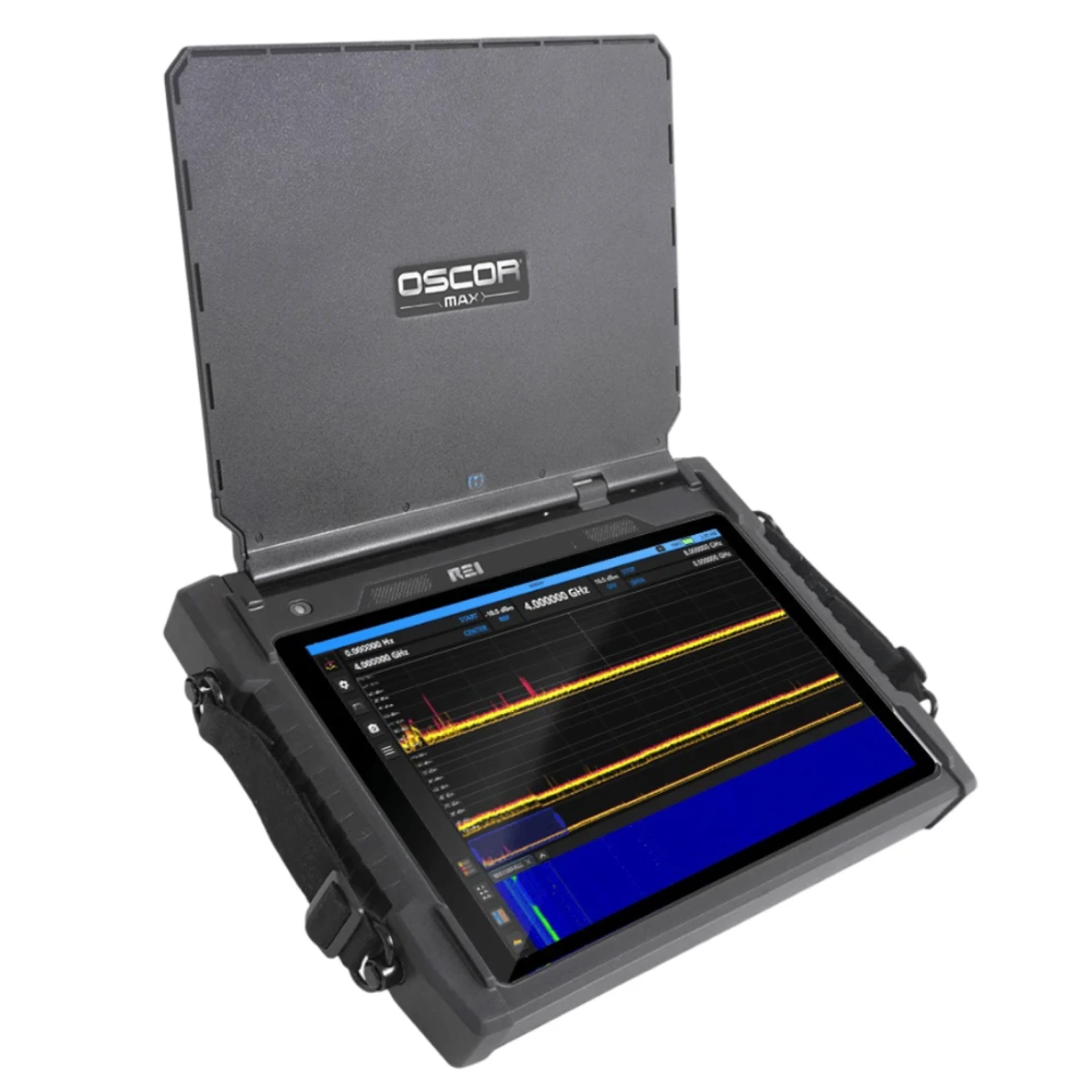

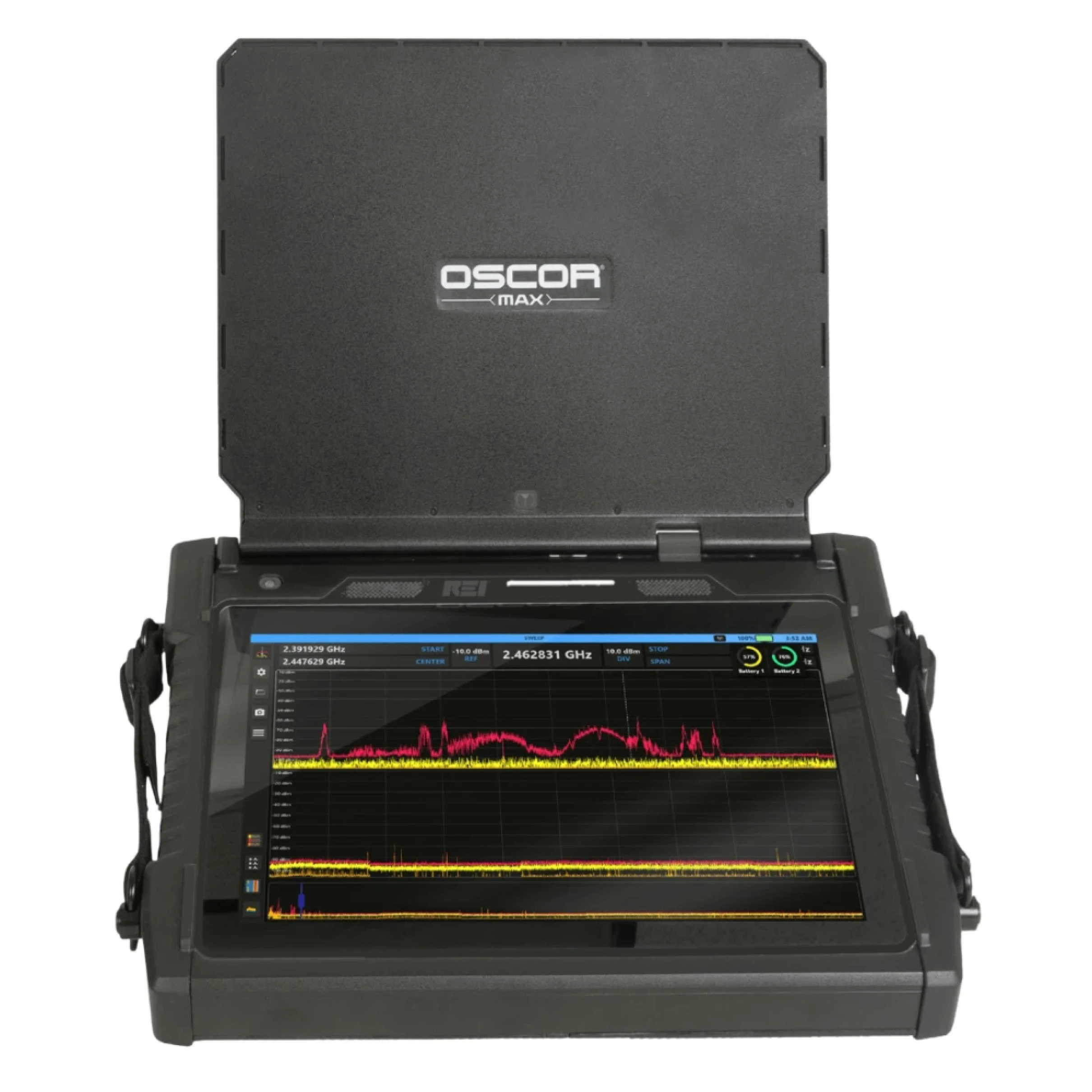

OSCOR MAX is equipped with a 13.3-inch high-resolution capacitive touchscreen, providing a modern, intuitive user interface suitable for field operations. The large display supports detailed spectrum views, signal lists, and interactive analysis tools. The portable design includes integrated handgrips, a user-adjustable tilt stand, and dual removable hot-swappable Li-ion batteries, allowing uninterrupted operation during extended inspections. Typical runtime is 2.5 hours minimum, with the ability to swap batteries without powering down.
Learn more about complete
REI TSCM equipment available at SpyShopEurope.com.
Training for OSCOR Max is available. For more information, contact us at
[email protected]
OSCOR Max Main Features:
- Frequency range from 10 kHz to 43 GHz
- High-speed sweeping up to 1100 GHz/sec
- 125 MHz IBW for wideband signal analysis
- Fully integrated auto-switching antenna system
- Wi-Fi and Bluetooth device detection
- SmartBars™ and Discrete Bands analysis
- I/Q data recording and trace comparison
- Multi-Purpose Probes for non-RF detection
- 13.3″ capacitive touchscreen display
- Dual hot-swappable Li-ion batteries
OSCOR Max Full Specifications:
RF SYSTEM – 43 GHz
Frequency: 10 kHz to 43 GHz
Sweep speed: 1100 GHz/sec at 10 kHz resolution
IBW: 125 MHz
DANL: -150 dBm/Hz
Preamp: 10 kHz-8 GHz: 15dB
Attenuation: 0 dB, -10 dB, -20 dB, -30 dB
Dynamic Range: 90 dB
ANTENNA SYSTEM
Built-in auto switching antenna system (10 kHz – 43 GHz) capable of performing 125 antenna switches per second.
RF IN / IF OUT
Aux RF Inputs:
• 2.4 mm connector
• 2.92 mm Input [SMA compatible]
IF Output:
• SMA [375 MHz with 125 MHz BW]
AUDIO
Demodulation types: AM, FM (continuous spectrum update and display while demodulating)
Built-in speakers
Headphone output
Audio input
I/Q RECORDING
OSCOR Max can record and store I/Q data
USER INTERFACE
Gigabit Ethernet port for remote access
USER STORAGE
Externally accessible 2TB M.2 NVMe SSD
Micro SD Card Slot
USB 3 Type A Port
DISPLAY
Display: 13.3”/34 cm capacitive touchscreen
POWER SOURCES
Universal Supply: 100–240 VAC
Removable Batteries: 2x Rechargeable Lithium ION
USB-C PD Charging
Runtime: 2.5 hours minimum (3 hours typical)
ACCESSORIES
Multi-Purpose Probe (MPP)
• Carrier Current
• IR and Visible Light
• Ultrasonic
• Magnetic leakage
• Coax cable testing
MECHANICAL
Dimensions:
Length: 16.2 in / 411 mm
Width: 10.6 in / 269 mm
Depth: 2.3 in / 58 mm
Unit Weight w/batteries
(2): 10.4 lbs / 4.7 kg
OSCOR Max Feature Focus:
Wideband Frequency Coverage up to 43 GHz
OSCOR Max offers an extensive frequency range from 10 kHz to 43 GHz, continuously sweeping and displaying signals within the range and allowing you detection of low-frequency, RF, microwave, and millimeter-wave transmitters. This wide coverage ensures visibility of both older and modern communication technologies without gaps.
High-Speed Spectrum Sweeping of up to 1100 GHz per second
The OSCOR Max spectrum analyzer sweeps at a speed of 1100 GHz per second, allowing it to scan the full 0–43 GHz frequency range up to 25.6 times per second. This high sweep rate increases the likelihood of detecting short-duration or intermittent signals. The sweep is performed at a 10 kHz resolution, enabling accurate identification of closely spaced and low-power transmitters. In total, the system processes over 107 million data points per second, providing a highly detailed and reliable view of the RF environment.
Integrated Automatic Antenna System
The built-in antenna panel automatically switches antennas across the full frequency range (10 kHz – 43 GHz), performing 125 antenna switches per second. This removes the need for manual antenna changes during inspections, so operators do not have to perform additional settings to detect all surrounding signals. This allows continuous operation while maintaining optimal sensitivity and consistent coverage throughout the sweep.
Advanced Signal Analysis and Visualization
OSCOR MAX includes advanced tools such as SmartBars™, Discrete Bands, persistence, waterfall displays, and long-term spectrograms. These visualization modes help you quickly distinguish normal background activity from suspicious or unauthorized signals. The spectrum analyzer is capable of detecting and identifying individual WiFi and Bluetooth devices, perform trace data analysis and trace math to show trace differences. It also displays live, average, peak hold and multiple stored traces. The Spectrogram waterfall captures and records peak traces over time for historical analysis, while the patented SmartBars™ display new signals or increased energy in a simple bar graph format compared to a stored reference trace. Discrete Bands feature displays up to 16 preconfigured and customizable segments of the spectrum.
OSCOR Max Discrete Bands
OSCOR Max WiFi Band Analysis
I/Q Data Recording and Post-Analysis
The system supports I/Q data recording, enabling detailed offline analysis and documentation of detected signals. This feature is valuable for technical evaluation, reporting, and evidence control during professional TSCM operations.
Multi-Sensor Detection with Multi-Purpose Probe
Beyond RF detection, OSCOR MAX supports a Multi-Purpose Probe for carrier current, infrared, visible light, ultrasonic, coaxial, and magnetic leakage detection. This allows identification of wired, optical, and non-RF transmitters that traditional RF-only inspection methods cannot detect.
OSCOR Max Professional TSCM Spectrum Analyzer FAQs
What is OSCOR Max used for?
OSCOR Max is a professional TSCM spectrum analyzer used to detect, analyze, and locate RF and non-RF surveillance devices during counter-surveillance inspections.
What frequency range does OSCOR Max cover?
OSCOR Max covers an exceptionally wide frequency range from 10 kHz to 43 GHz, allowing detection of low-frequency, RF, microwave, and millimeter-wave transmitters.
Can OSCOR Max detect Wi-Fi and Bluetooth devices?
Yes. OSCOR Max can detect, analyze, and identify Wi-Fi and Bluetooth transmissions, including intermittent and low-power devices.
Does OSCOR Max support real-time spectrum analysis?
Yes. It provides continuous, real-time visibility of the RF environment with high-speed sweeping up to 1100 GHz per second.
What makes OSCOR Max different from standard spectrum analyzers?
OSCOR Max is purpose-built for TSCM operations, combining ultra-wide frequency coverage, automatic antenna switching, advanced visualization tools, and non-RF detection capabilities in a portable system.
Can OSCOR Max detect non-RF surveillance threats?
Yes. Using the included Multi-Purpose Probe (MPP), OSCOR Max can detect carrier current, infrared, visible light, ultrasonic signals, magnetic leakage, and coaxial coupling.
Does OSCOR Max support I/Q recording and post-analysis?
Yes. OSCOR Max can record I/Q data for detailed offline analysis, reporting, and evidence documentation.
Is OSCOR Max suitable for mobile and field operations?
Yes. It features a rugged portable design, integrated handgrips, a 13.3-inch touchscreen, and dual hot-swappable batteries for uninterrupted field use.
Who typically uses OSCOR Max?
OSCOR Max is used by government agencies, corporate security teams, professional TSCM operators, and security consultants performing high-level counter-surveillance inspections.
Is training available for OSCOR Max?
Yes. Professional training for OSCOR Max is available to ensure correct operation, interpretation of results, and effective TSCM deployment.
Note:
For more detailed specifications, please carefully study the PDFs available for download below.
>>Download detailed specifications (PDF)<<
