Research Electronics International
ORION HX Deluxe Non-Linear Junction Detector
Price on request
Delivery in 30+ days
Send inquiry
14 day refund
24 month warranty

The ORION HX Deluxe Non-Linear Junction Detector (NLJD) comes with swappable 2.4 GHz and 900 MHz antenna heads, enabling the detection and location of hidden electronic devices, regardless of whether they are active, inactive, or completely turned off.

Made to detect hidden cameras, microphones, bugs, cell phones, and other electronic devices, even if they're turned off or passive, the NLJD is not looking for a transmitting signal but for the actual electronic components themselves. It can locate the electronic components of surveillance device in surfaces such as in walls, floors, ceilings, fixtures, or containers.

ORION HX Deluxe NLJD is useful in a variety of situations. These situations include commercial security applications such as checking board rooms or offices for hidden electronics, searching secure areas for unwanted or banned electronic equipment, searching for contraband cell phones or other electronic contraband in prisons, or protecting clients from eavesdropping.

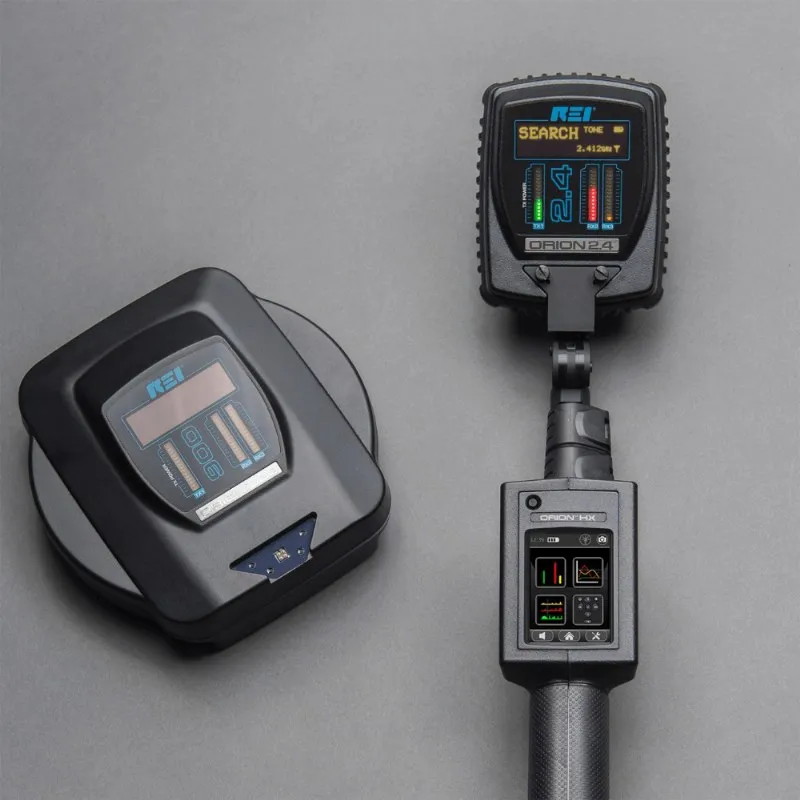

The ORION HX Deluxe features intechangeable antenna heads from both the ORION 2.4 HX and the ORION 900 HX. This combination provides maximum efficiency as the ORION 2.4 HX excels in detecting modern, surface-mounted circuitry such as SIM card and cell phones in regular office environments, while the ORION 900 HX targets older, less refined circuitry and also provides better detection through thicker, denser building and construction materials such as brick or concrete, covering detection for all situation and electronic devices.

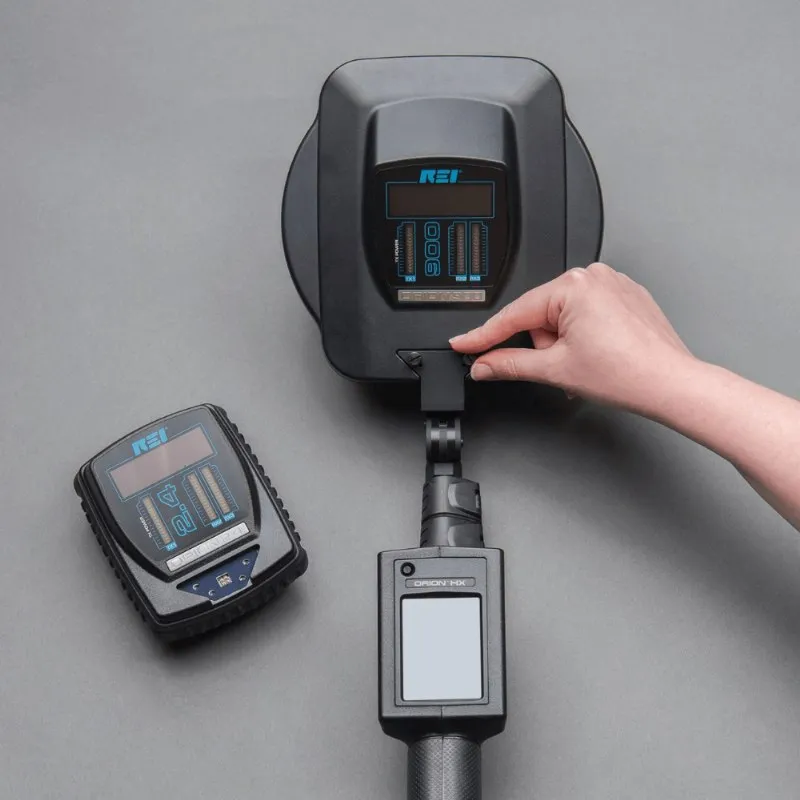

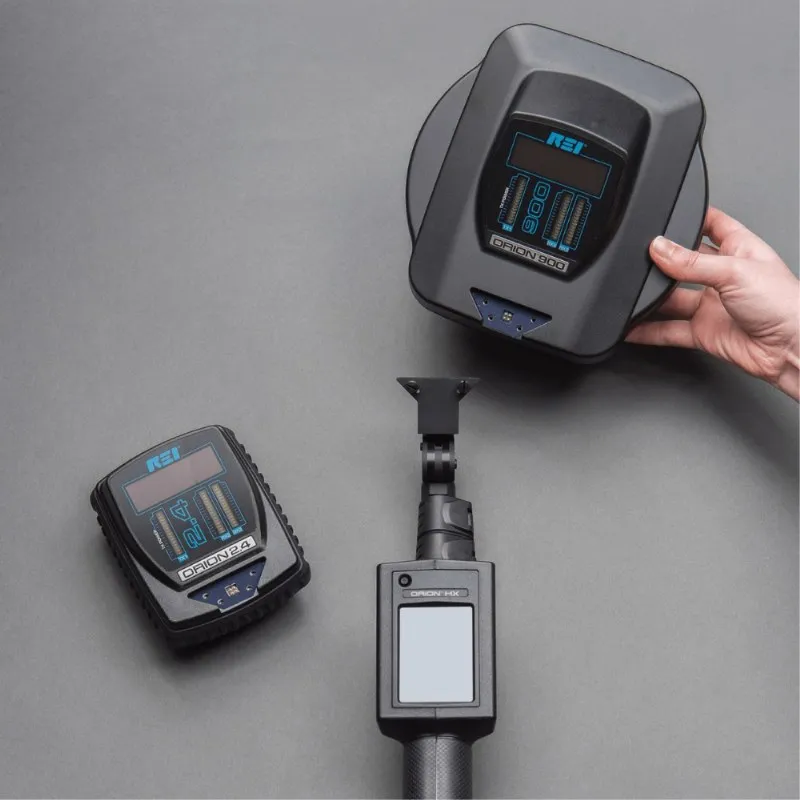

The changing of antennas is very quick and easy, taking less than 20 seconds to reconnect the antenna head relevant to your situation. Thanks to the handheld, compact design, it is easily used in hard-to-reach places, while the LED head lamp helps you sweep even in dark areas, making it a versatile tool for comprehensive security sweeps. All features and accessories that come with ORION 2.4 HX and ORION 900 HX are included in the ORION HX Deluxe system, which come in a convenient, protective carry case.






Additional models available for individual purchase:
  • ORION 2.4 HX 3.3W Touch Screen
  • ORION 2.4 HX Touch Screen 6.6W High Gain **G Model
  • ORION 2.4 Keypad (3.3W)
  • ORION 900 HX Touch Screen 1.4W
  • ORION 900 HX Touch Screen 3.2W High Gain **G Model
  • ORION 900 Keypad 1.4W
**G Model is permitted for use only by agencies, persons, and entities not restricted by US FCC and CE.

Learn more about complete REI TSCM equipment available at SpyShopEurope.com.


ORION HX Deluxe Main Features:

  • Switchable ORION 2.4 HX and ORION 900 HX antenna heads
  • Detects and locates hidden electronic devices in all states - active, passive, powered off
  • Detects hidden cameras, microphones, cell phones, SIM cards, GSM bugs, and other electronic devices
  • Focus on sweeping target and display simultaneously with line-of-sight antenna mounted display and LED head lamp
  • Compact, handheld design & easy setup with integrated pole
  • Audio, visual and vibration alerts when electronic device is detected
  • Touchscreen (HX models) displays full RF spectrum for transmit power, 2nd, or 3rd frequency ranges
  • Histogram graph on HX (touchscreen) model displays continuous history of harmonic response and power adjustment
  • Improved detection & minimized interference thanks to digital modulation, correlation of 2nd & 3rd harmonic response, and adjustable DSP gain
  • Increased  detection sensitivity with 1.25 MHz-wide bandwidth transmit signal
  • Circularly polarized transmit & receive antenna eliminates the risk of overlooking threats due to incorrect polarization


ORION HX Deluxe Specifications:

TRANSMITTER
2.4 antenna transmit power: 3.3 W; G model: 6.6 W
900 antenna transmit power: 1.4 W; G model: 3.2 W
Power control:  manual or auto control
2.4 antenna frequency band:  2.404 GHz - 2.472 GHz
900 antenna frequency band: 905 - 925 MHz; G model: 840 - 960 MHz
Transmit channels:  manual or auto selection, more than 60 available
Transmit modulation:  pulsing, digital spread spectrum, 1.25 MHz bandwidth
Please note: G model authorized for use only by agencies, persons and entities not restricted by FCC & IC. Both models are CE marked for public safety and security.

RECEIVER
Simultaneous 2nd & 3rd harmonic receive
Digitally correlated
2.4 antenna frequency band:
Second Harmonic (4.808 GHz – 4.944 GHz)
Third Harmonic: (7.212 GHz – 7.416 GHz)
900 antenna frequency band:
Second Harmonic (1810 MHz - 1850 MHz); G model (1680 MHz - 1920 MHz)
Third Harmonic: (2715 MHz - 2775 MHz); G model (2520 MHz - 2880 MHz)
2.4 antenna sensitivity: -140 dBm for both harmonics
900 antenna sensitivity: -130 dBm for both harmonics

DISPLAY
Handle-mounted 2.7 inch touch screen controller display
Antenna-mounted display
Bar graph display for transmit power level, 2nd harmonic level, 3rd harmonic level, data field display, for other information (operation mode, low battery, volume, DSP gain, etc.)

MECHANICAL
Extension lengths: 16-51 in (40.6 - 129.5 cm)

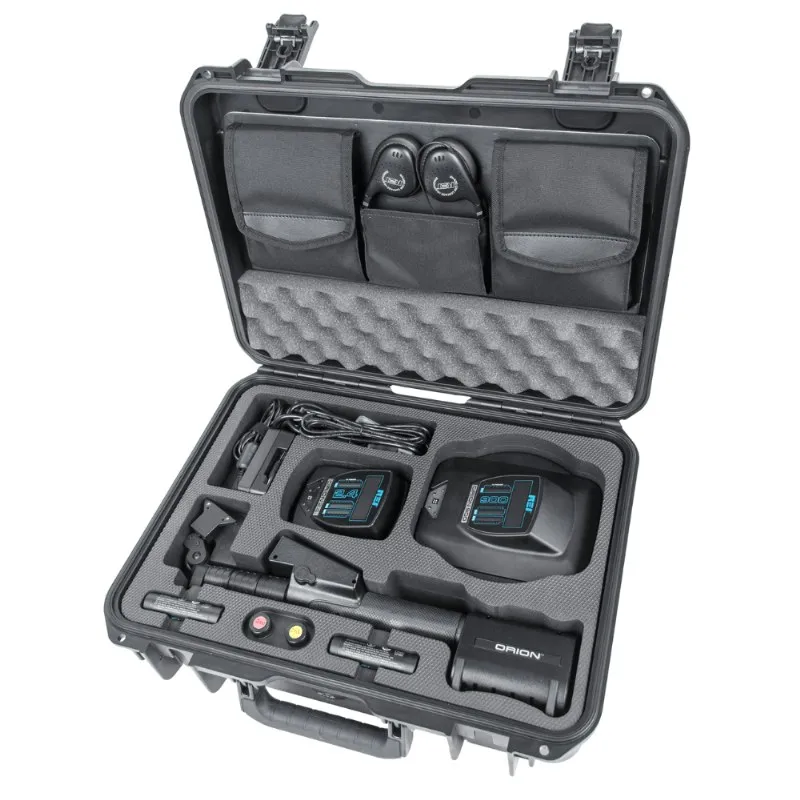

Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
ORION HX Deluxe dimensions (2.4 antenna): 22.4 in x 3.75 in x 3 in (57 cm x 9 cm x 7.5 cm)
ORION HX Deluxe dimensions (900 antenna): 23 in x 3.75 in x 3 in (58.4 cm x 9 cm x 7.5 cm)
Overall Extended Length: 58 in (147 cm)
ORION HX Deluxe weight w/ battery (2.4 antenna): 3 lbs (1.4 kg)
ORION HX Deluxe weight w/ battery (900 antenna): 3.6 lbs (1.6 kg)
ORION HX Deluxe case and contents weight 14 lbs (6.4 kg)
HX touchscreen Ingress Protection (IP) rating : IP63

BATTERY
Input AC: 100-240 V, 50-60 Hz
Run time: >4 hours per battery (typical)
Charge time: 2.5 hours per battery
Batteries: Lithium ion rechargeable (2 included)
The supplied battery pack: RRC Power Solutions Lithium Ion Rechargeable Battery pack Model #RRC2040

THERMAL
Operating temperature: -10 to 50°C
Battery charging temperature: 5 to 37°C
Storage temperature: -20 to 60°C
Note: extended storage at temperatures above 40°C could degrade battery & OLED display performance and life.


ORION HX Deluxe Feature Focus:

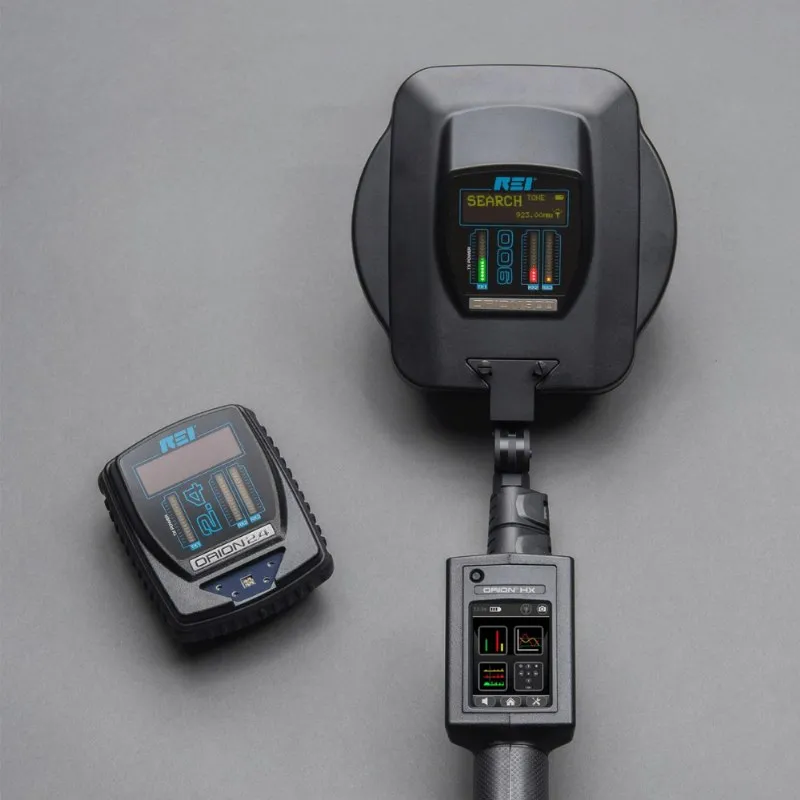

Interchangeable ORION 2.4 HX and ORION 900 HX antenna heads

By including both ORION 2.4 HX and ORION 900 HX antenna heads, ORION HX Deluxe effectively detects all kinds of electronic surveillance devices. The 2.4 GHz antenna head sucessfully detects modern, surface-mounted electronics in regular office environments like SIM cards and cell phones, and on the other hand, 900 MHz antenna head excels in detecting older, less refined electronics, while also being able to better detect through thicker and denser building materials such as brick or concrete. By combining both antenna heads, you can ensure finding any kind of unwanted electronic surveillance device in your vicinity and securing your or your client's privacy. Changing antenna head while sweeping is done by simply turning a pair of thumb screws and takes less than 20 seconds.



Detects electronic devices in all operational states

Whether an electronice surveillance device is radiating, hard wired, or even powered off, the ORION NLJD will detect its physical properties, and not energy transmisions a device might emit. Therefore, all devices that contain circuit boards or similar components, such as cell phones, SIM cards, video cameras, microphones, GSM bugs, etc., will be detected with ORION HX Deluxe NLJD.


Enhanced sensitivity and detection range

ORION HX Deluxe offer several features that enhance its sensitivity and detection range. The digitally modulated spread spectrum not only increases the detection range but also minimizes interference by spreading the signal across a wide frequency band. This is accompanied by a wide bandwidth transmit signal of 1.25 MHz, which enhances the device's sensitivity, allowing it to detect smaller or more sophisticated electronic devices. The adjustable DSP gain feature further boosts the detection range without needing more power, making the ORION HX Deluxe more efficient in larger spaces. Additionally, the circularly polarized transmit and receive antenna ensures that the ORION HX can detect electronic devices regardless of their orientation, improving the overall effectiveness of the device.


Touchscreen display provides visual feedback with histogram and spectrum view

The touchscreen displays a histogram graph that offers visual representation of harmonic response and power adjustment over time. This helps you in tracking changes and identifying hidden devices throughout the area. The spectrum view shows 2nd and 3rd harmonic spectrum graphs in various display options, providing a comprehensive view of the detected signals. Furthermore, the frequency adjust screen displays the full RF spectrum for Transmit, 2nd, or 3rd frequency ranges, allowing you to see exactly where the ORION HX is operating and make necessary adjustments to avoid interference or optimize detection.

Multiple Alert Methods

The ORION HX Deluxe can alert you to the detection of a hidden electronic device through visual alerts on touchscreen, audio tones, or haptic (vibration) alerts when a signal surpasses the set threshold levels. This allows you to maintain focus on the area being swept rather than having to constantly check the device's display.

Compact design for easy use

ORION HX Deluxe comes with a variety of features that make it a very useful and user-friendly tool while performing sweeps. It includes an integrated pole, eliminating the need for separate pole or cable assembly; a quick-disconnecting handle for an easy change between 2.4 and 900 antenna heads; a line-of-sight antenna mounted display allowing you to keep your eyes on the area being swept while still seeing the device's display; and LED head lamp that illuminates the target area, making it easier to use the ORION NLJD in low-light conditions or dark areas where additional lighting is not available. ORION HX weighs only 1.6 kg (3.6 lbs) and comes in a protective carry case, making it easy to transport and store.

ORION HX Deluxe Non-Linear Junction Detector FAQs


Are there any additional models of the ORION HX available for purchase?
Yes, there are additional models available for individual purchase, including various ORION 2.4 HX and ORION 900 HX models with different power outputs and features. These models cater to specific needs and restrictions, including models permitted for use only by agencies, persons, and entities not restricted by US FCC and CE.


Can the ORION HX Deluxe detect devices through walls or dense materials?
Yes, the ORION HX Deluxe can detect devices through walls and dense materials, thanks to its interchangeable antenna heads. The 900 MHz antenna head is specifically designed to detect through thicker and denser materials like brick or concrete, while the 2.4 GHz antenna head is optimized for modern, surface-mounted electronics in less dense environments.


How does the ORION HX Deluxe detect electronic devices?
The ORION HX Deluxe detects electronic devices by looking for the electronic components themselves, rather than relying on the transmission of signals. It can find hidden cameras, microphones, cell phones, and other electronic devices embedded within walls, floors, ceilings, and other surfaces. This capability allows it to locate devices that are powered off or passive, ensuring comprehensive security sweeps.


How long does it take to switch antenna heads on the ORION HX Deluxe?
Switching antenna heads on the ORION HX Deluxe takes less than 20 seconds, allowing for quick adaptation to different detection needs. This feature ensures maximum efficiency during security sweeps by enabling easy transition between the ORION 2.4 HX and ORION 900 HX antenna heads.


Is the ORION HX Deluxe easy to use in different environments?
Yes, the ORION HX Deluxe is designed for easy use in various environments, featuring a compact, handheld design with an integrated pole and a quick-disconnecting handle. Its LED head lamp and line-of-sight antenna mounted display facilitate use in hard-to-reach places and low-light conditions, enhancing its versatility.


What alert methods does the ORION HX Deluxe offer?

The ORION HX Deluxe offers multiple alert methods including visual alerts on the touchscreen, audio tones, and haptic (vibration) alerts. These options allow users to be promptly notified when a hidden electronic device is detected, without the need to constantly monitor the device’s display.


What is the ORION HX Deluxe Non-Linear Junction Detector?

The ORION HX Deluxe Non-Linear Junction Detector is a device designed to detect and locate hidden electronic devices, whether they are active, inactive, or turned off. It features swappable 2.4 GHz and 900 MHz antenna heads for versatile detection capabilities across different environments and materials. This makes it ideal for security applications in commercial settings, prisons, and for protecting against eavesdropping.


What types of electronic devices can the ORION HX Deluxe detect?
The ORION HX Deluxe can detect a wide range of electronic devices including hidden cameras, microphones, cell phones, SIM cards, GSM bugs, and more. It is designed to locate any electronic device containing circuit boards or similar components, making it a versatile tool for security and counter-surveillance efforts.


Where can I find the user manual for the ORION HX Deluxe?
The user manual for the ORION HX Deluxe can be found and downloaded from the bottom of this site. This manual provides detailed information on operation, features, and safety precautions.


Note:

For more detailed specifications, please carefully study the PDFs available for download below.


24 Months Warranty

ORION HX Deluxe User Manual
>>Download detailed specifications (PDF)<<
