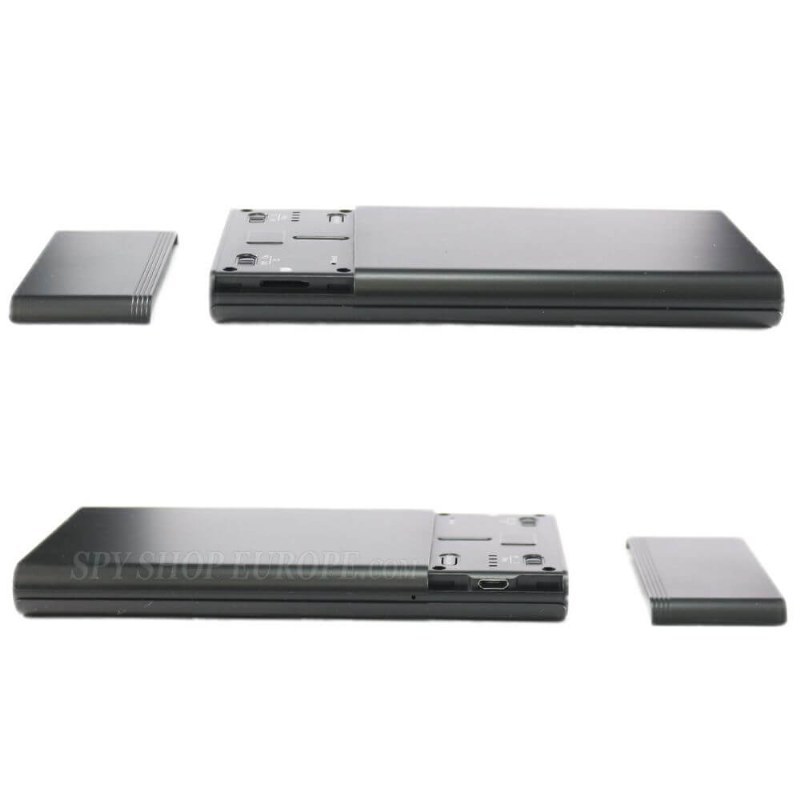

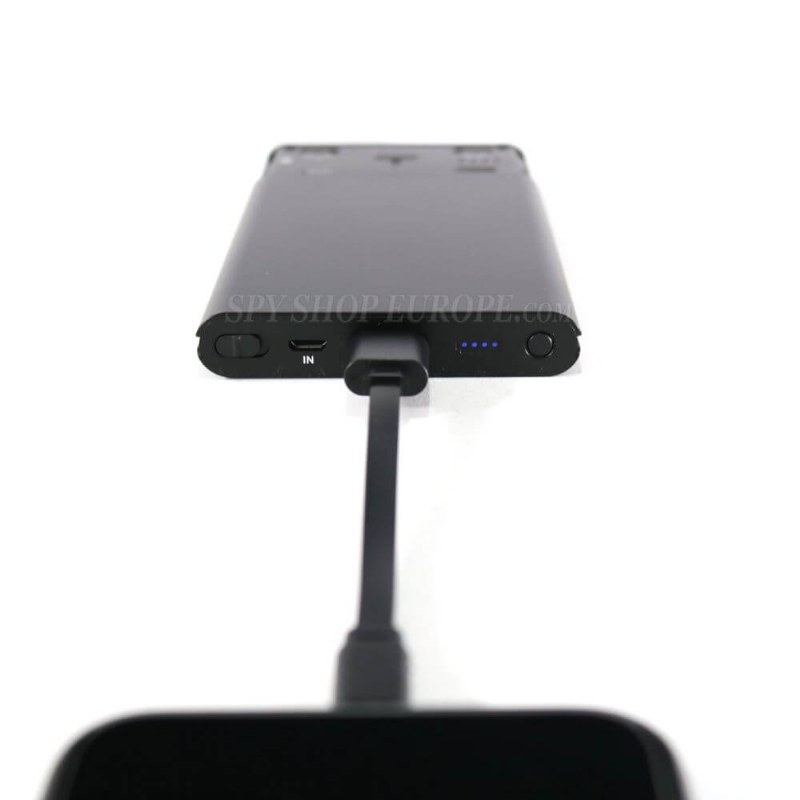

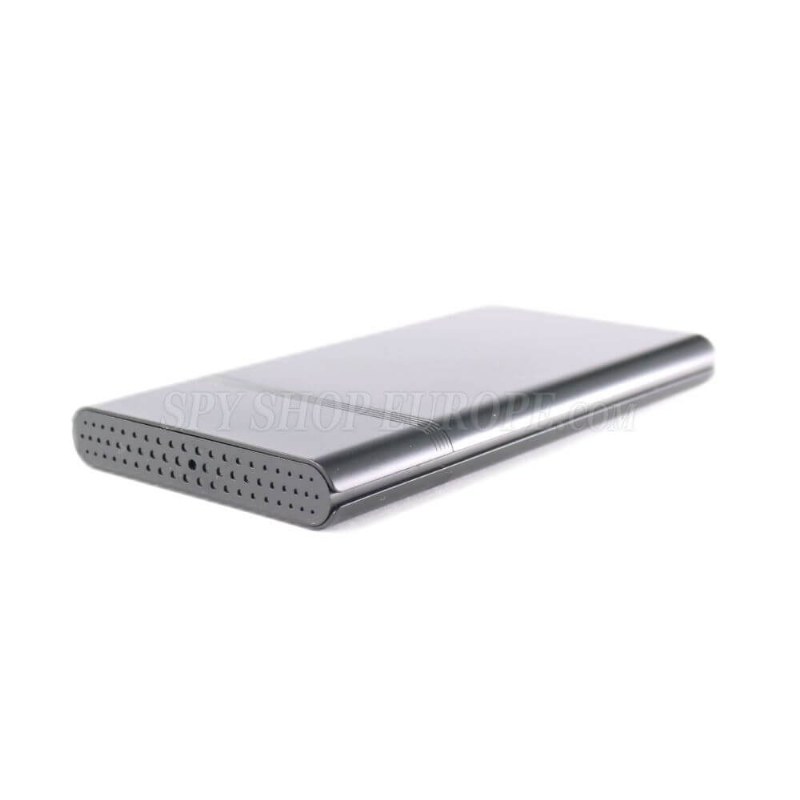

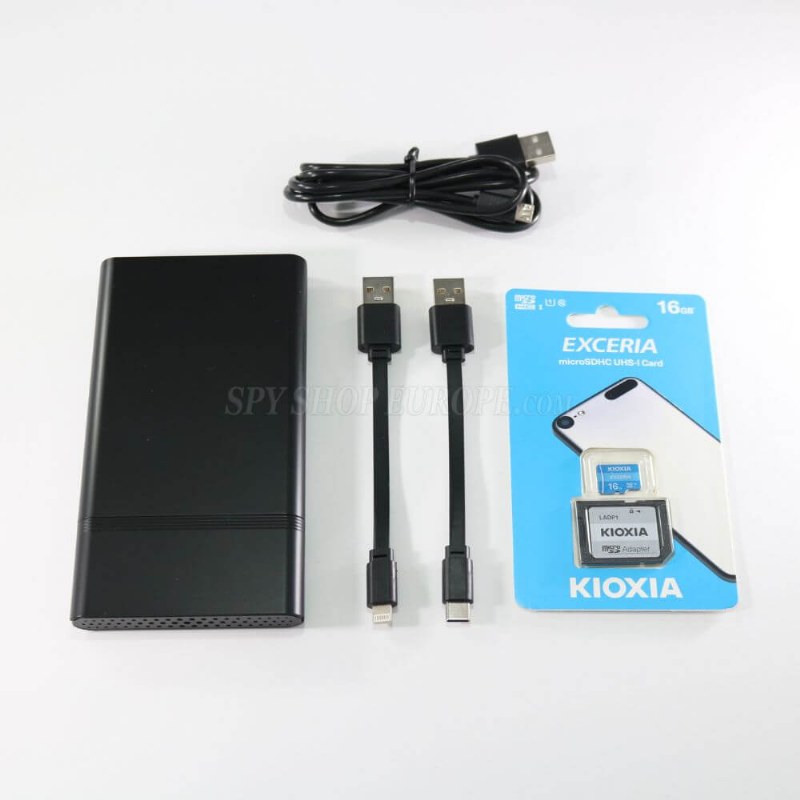

PV-PB30W is the latest LawMate newcomer, a covert mini DVR that looks and functions as an actual power bank for iOS/Android smartphones.
Its slim and modern, yet 'ordinary' design, like those in offices or homes, will not attract unwanted looks.
Customers familiar with Lawmate IP products will find all the functions from the product range. It supports Full HD 1080P recording and has built-in Wi-Fi and IP connectivity. This allows for remote monitoring and control of the device from a smartphone using the PV Cam Viewer App.
The device also has various operating modes, including Auto, Manual, and Motion detection video recording, as well as the overwrite function - a hassle-free for changing memory card.
Capture and control high-quality video footage from anywhere in the world, with the PV-PB30W Power Bank DVR - the perfect discreet surveillance solution for professionals on-the-go.
PV-PB30W Power Bank DVR Main Features:
- Built-in Wi-Fi allows you to control and view video material from anywhere in the world on your iOS/Android device
- Appears and functions as a normal iPhone/iPad or Android Power Bank with a built-in DVR and 2MP camera
- Records at 1080p/720p/WVGA @30fps
- Supports up to 64GB SD memory cards
- LED indicators for power, charging, Wi-Fi and recording
- Over-write function
PV-PB30W Power Bank DVR Full Specifications:
Built-in image sensor: 1/2.8" progressive CMOS sensor
Sensor Resolution: 2592 x 1944
Sensor Sensitivity: 3.3 Lux @ F 2.0
Lens F/No; F 2.4+-5%
Focal Length: 3.7m
The angle of View: 70°
Algorithm: H.264, JPEG
File Format: MOV, JPG
Video recording mode: Auto/Manual/Motion Detection
Recording Capability: 1920x1080, 1280x720, WVGA
Frame rate: Up to 30 fps
Wi-Fi: Built-in Wi-Fi Module
Memory type: Micro SD Card ( Support SDHC max. 64GB) Use Device Format
Data Interface: Mini USB 2.0
Battery Output: USB DC 5V Output 550mA
Disguised Mode: Stand-By, Power-Off
Date/Time Table: YYYY.MM.DD, HH,MM,SS
Snapshot: Snapshot image when preview
Power Input: DC 5V
Power Consumption: 300mA-360mA(WiFi off Wi-Fi = 100mA)
Battery Input: DC 3.7V / 4500 mA Lithium battery
Battery Lifetime: Continuous recording 600min for Wi-Fi off
Recording time: 5h @ 1920x1080 resolution ( 32GB SD card )
Charge Time: 150min-200min
Vibration Alert: Power on/off, Recording, Low battery
PV-PB30W Feature Focus:
Disguised Mode

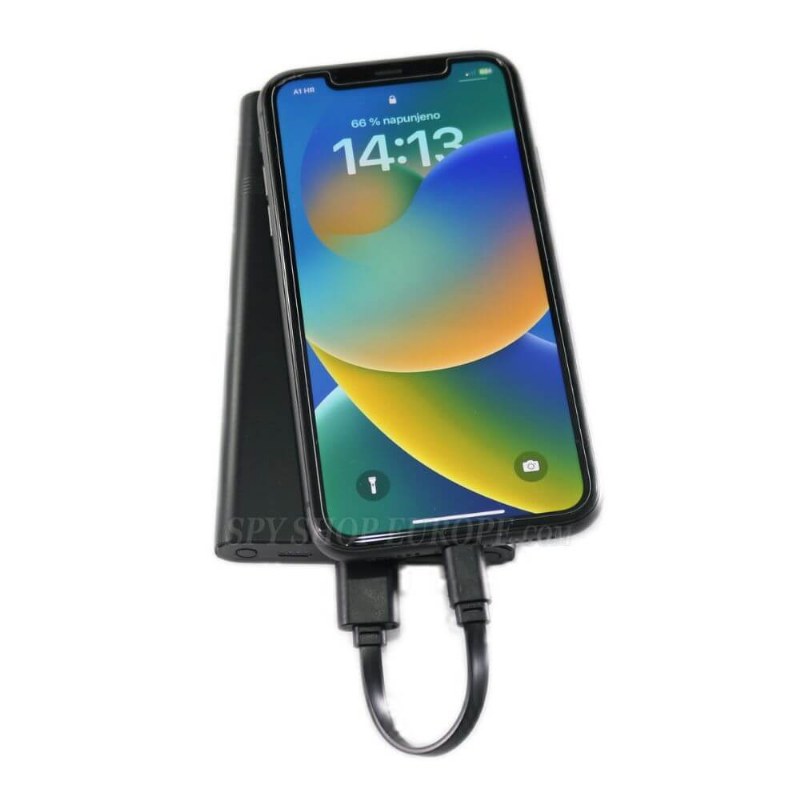

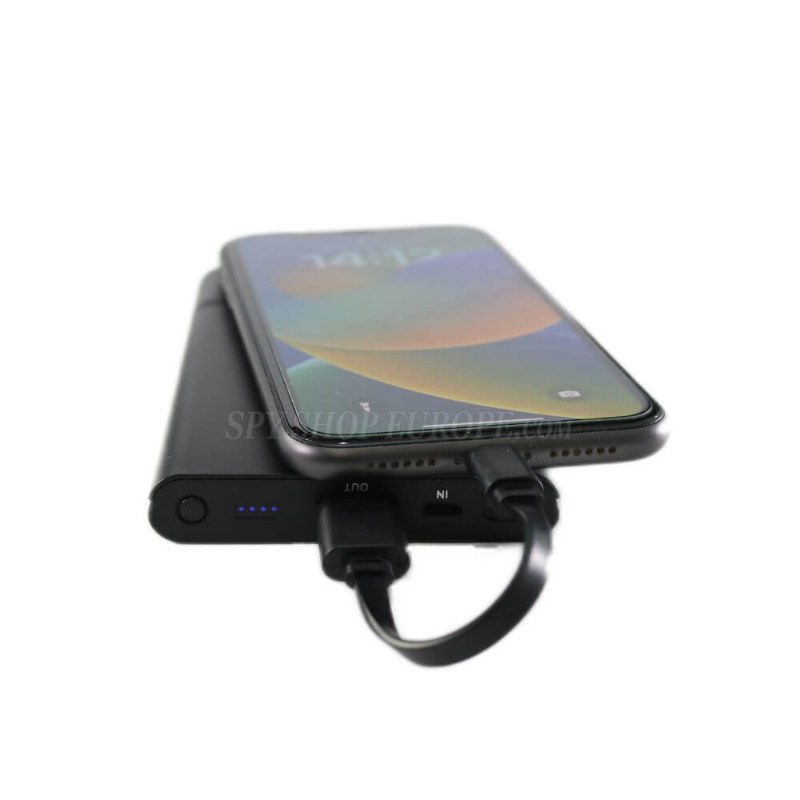

The PV-PB30W Power Bank DVR is designed to look and function like a normal iPhone/iPad or Android power bank, making it easy to blend in with everyday objects and go unnoticed. This feature allows users to discreetly record video and capture evidence without drawing attention.
Remote Access and Control
One of the main features of the PV-PB30W Power Bank DVR is its built-in Wi-Fi module, which enables remote access and control of the device from anywhere in the world using an iOS or Android device. This feature allows users to view and manage recorded video material and adjust settings such as recording mode and resolution remotely.
High-Quality Video Recording
The PV-PB30W Power Bank DVR can record video at 1080p/720p/WVGA @30fps, providing high-quality footage that is clear and detailed. With a 2MP camera and a 70° angle of view, the device can be ideally used for recording events, meetings, interviews, etc.
Large Storage Capacity
The PV-PB30W Power Bank DVR supports up to 64GB SD memory cards, providing ample storage space for recorded video material. With an over-write function, the device can continue recording and overwriting old footage automatically once the memory card is full, ensuring continuous surveillance without manual intervention.
How to use the PV-PB30W Power Bank DVR:
1. To set up the IP function, please consult the IP Cam Installation Guide below.
2. Otherwise, the device can be used just by inserting an SD card and powering it on. It will start recording as a regular mini DVR camera onto the SD card.
Note:
For more details on setting up and usage of the device, please study the PDF files below.
New info on SSID: IP products (such as this one) cannot change the SSID name. Wi-Fi products only can change the SSID name. However, once connected to the IP the device's name is the same as your router name.
24 months warranty.
>>Download detailed specifications (PDF)<<
