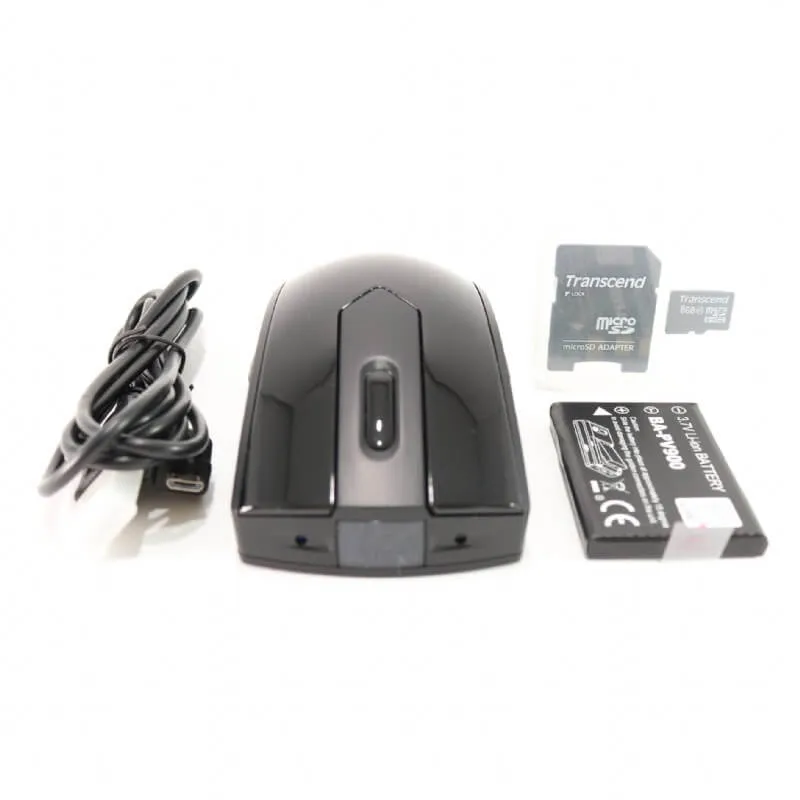

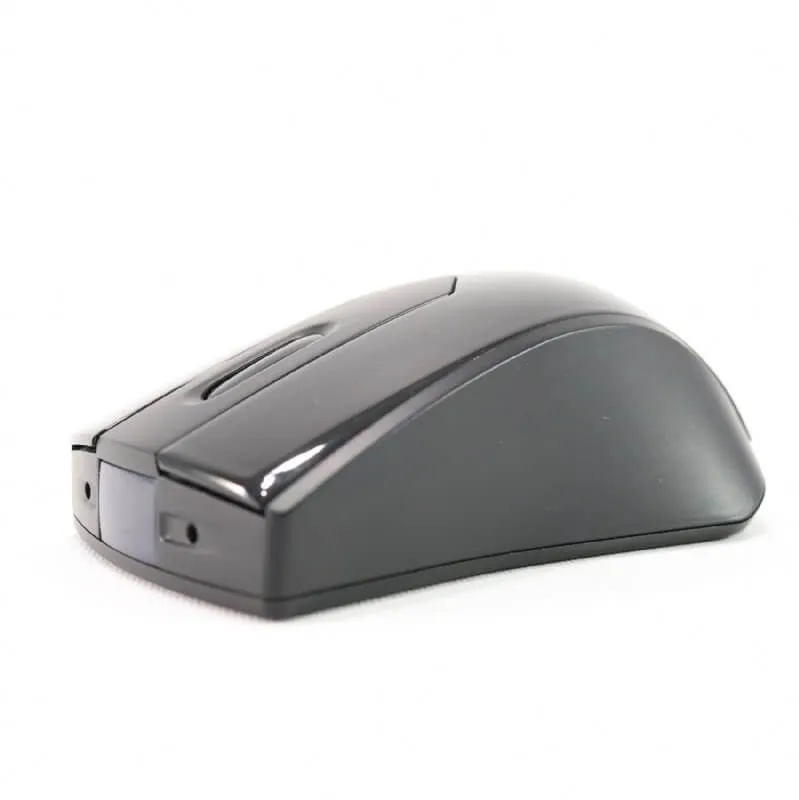

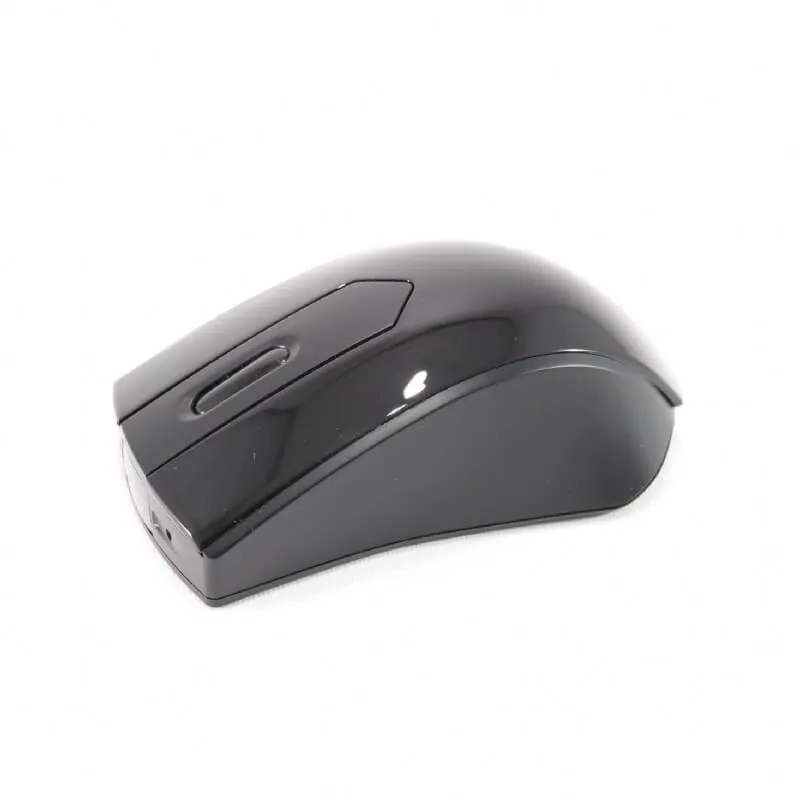

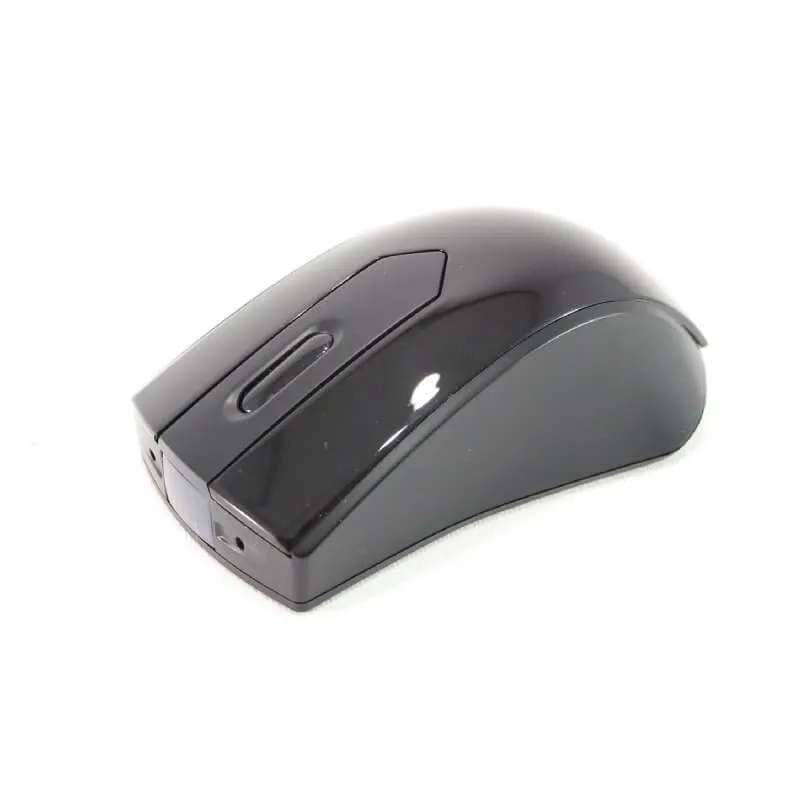

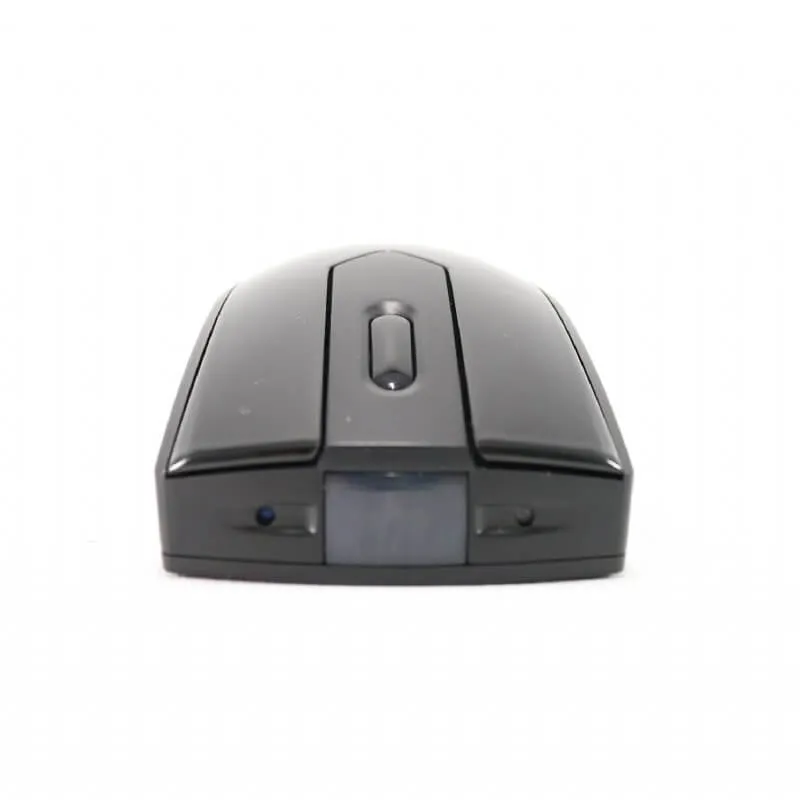

LawMate PV-MU10 is another innovative product from the Lawmate factory of surveillance product concepts.
The idea behind PV-MU10 is quite simple, create a device that can easily be placed in an everyday office or home environment and make it so it can record for an extended period of time.
The PIR sensor will make sure that you record only the important things, and combined with the 7-9 standby mode, the battery will need less frequent charging.
LawMate PV-MU10 main features are:

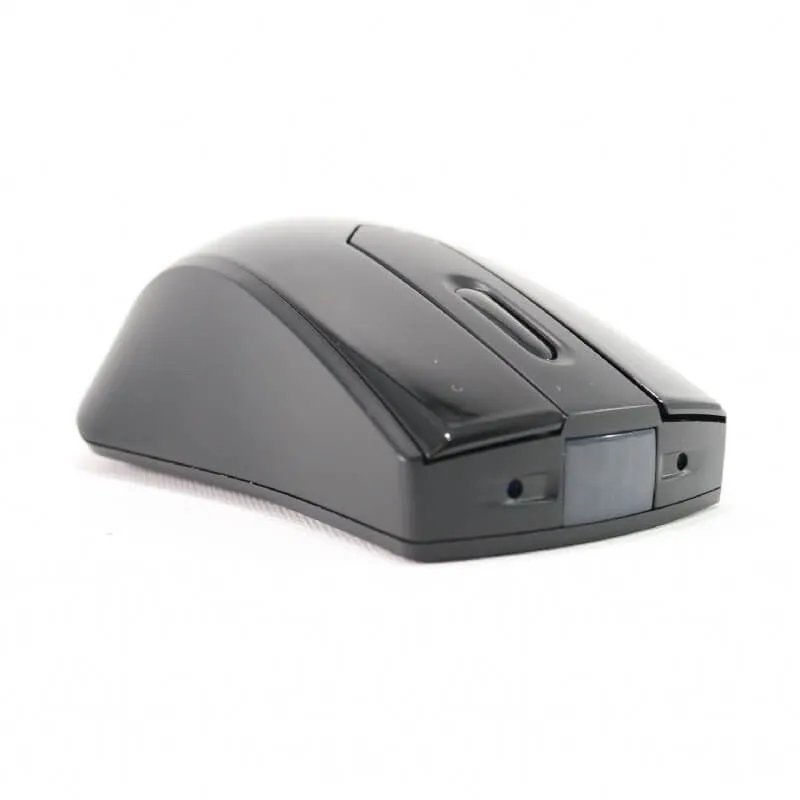

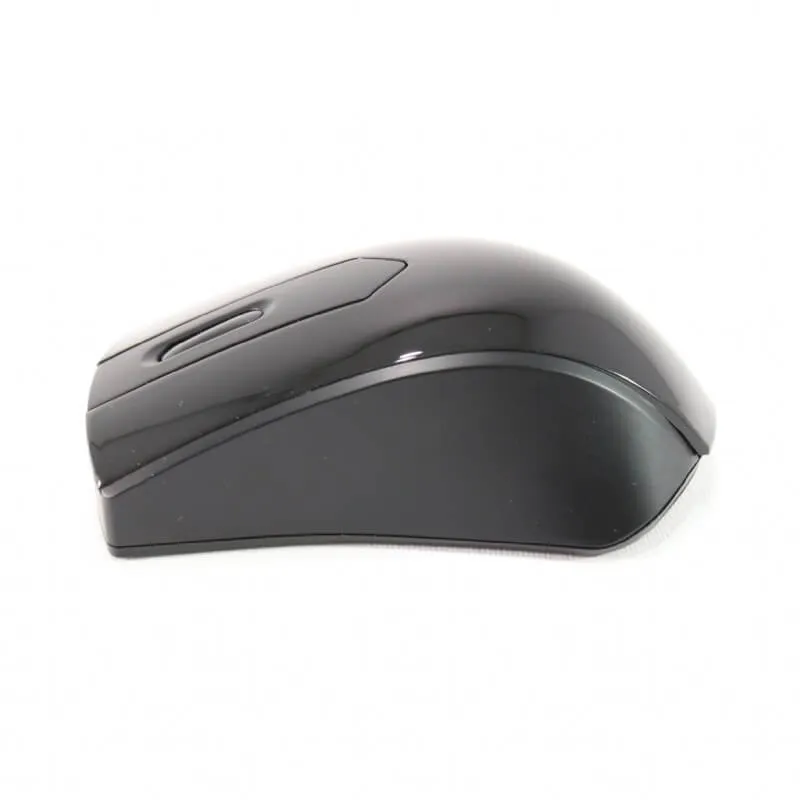

- Covert audio and video DVR disguised as a computer mouse
- Integrated PIR sensor
- 7-9 days standby mode
- VGA/HD resolution recording
PV-MU10 Full Specifications:
Sensor: 1/3.6’’ progressive CMOS sensor
Video Resolution: HD / VGA @ 30fps
Photo Capacity: 5MP (2592 x 1944)
MIN Illumination: 3.3 Lux@F 2.8
Focal Length: 4.09mm
The angle of view: 66°
Storage Capacity: Supports up to 16 GB memory card
Time Stamp: YYYY.MM.DD, HH:MM:SS
Code Compression: H.264
File Format: AVI
Frame Rate: 30fps
Recording Mode: PIR activated (Length: Max. 2 minutes)
Snapshot: PIR activated ( 1 snapshot/sec)
Indications: LED(Blue:Power On / Green:Charging / Red:Recording)
Standby Time: 7 days
Dimension : 65x130x35 mm
PV-MU10 is equipped with a PIR sensor. Unlike the visual motion detection function that is also used in surveillance products, PIR detection operates with much lower power consumption that in turn significantly increases battery time in standby mode.
WIRED/ WIRELESS MOUSE MODES
Lawmate PV-MU10 can be used as a wireless mouse which makes it easier to set up for covert recording. While in wireless mouse mode it can be placed in standby mode for 9 days, the continuous recording will drain up the battery in just a couple of hours.
Alternatively, PV-MU10 can be connected to a PC USB port to make it look like a regular wired mouse. In this case, PV-MU10 is powered directly from the port is able to continuously record without battery power limitation.
How to use it?
- Place the PV-MU10 in the environment where surveillance activity will take place
- Connect the PV-MU10 with a USB cable to a PC if you wish to continuously record for a prolonged period of time
- Switch on the record button at the bottom of the mouse
- Modify the PV-MU10 angle as needed during recording
Take note PV-MU10 is not a functional computer mouse. It only looks like one.
For detailed specifications please download the brochure below.
>>Download detailed specifications (PDF)<<
