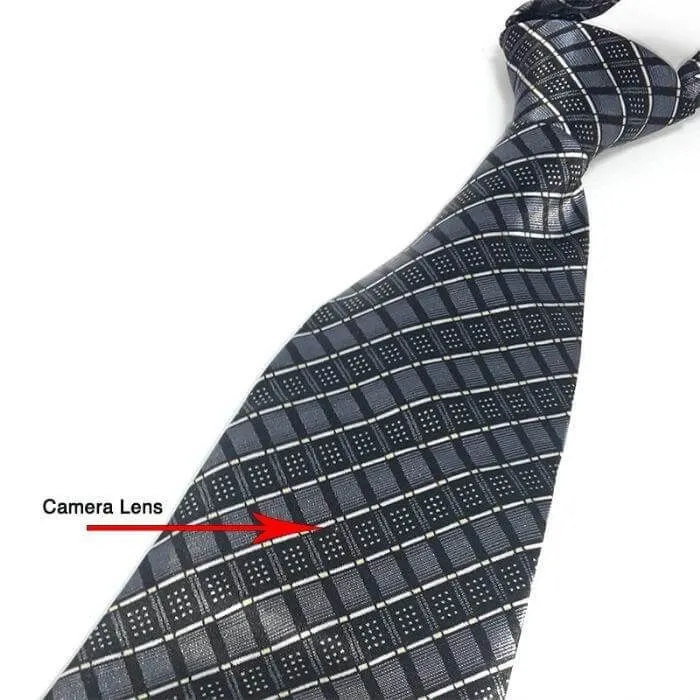

LawMate NT-18Neo is a Full HD 1080 p digital CMOS Tie camera specially designed for the PV-500Neo and PV-500Neo Pro Wi-Fi DVRs.
This product is end of line and no longer available. If you are looking for a product with the same or similar specifications, please see related products at the end of the page or contact us directly at [email protected]
The NT-18 Neo camera is a new version of the NT-18 HD and compatible with Wi-Fi DVRs only. It comes in Full HD, is easy to set up and use, and has a low light sensitivity at 0.03 lux.
- Full HD 1080p CMOS camera
- Compatible with PV-500Neo and PV-500Neo Pro
- Low light sensitivity 0.03 Lux
- Live streaming on your iOS/ Android smartphone via PV Cam App
- Instant download of video/photo material
NT-18 HD Full Specifications:
Built in Image Sensor: 1/2.9" progressive CMOS Sensor
Sensor Resolution: 2000x1121
Pixel Size: 2.8um(H) * 2.8um(V)
Digital Picture Resolution: (H)1920x(V)1080
Sensor Sensitivity: 0.03 Lux @ F 2.0
Lens: F/No. F2.0
Focal Length: 4.3mm
Angle of view: 78°
Depth of View: 50 cm ~ ∞
Electronic Shutter: 1/8 ~ 1/30,000
Video Output: I2C Data
Power Supply Current: 220mA
Operating Temperature: -10℃ ~ 60℃
Operating Humidity: 20 ~ 90%
Storage Temperature: -30℃ ~ 80℃
Power Input: DC 3.3V± 5%
>>Illustration form quick manual - name and parts of the NT-18Neo<<
For more details on the camera setup, carefully study the PDF below.
24 Months Warranty.
