The LawMate PV-CC10W Coffee Cup Covert Wi-Fi DVR is the new and upgraded version of the PV-CC10 Mini DVR.

In comparison, the previuous model PV-CC10 offered HD 720 P recordings, with continuous recording up to 150 min, battery lifetime up to 115 min, and supported SD Cards up to 16 GB.

The new and upgraded PV-CC10W offers a built-in Wi-Fi module, Full HD 1080 P recordings, continuous recording up to 160 min, battery lifetime up to 210 min, and supports SD Cards up to 32 GB.

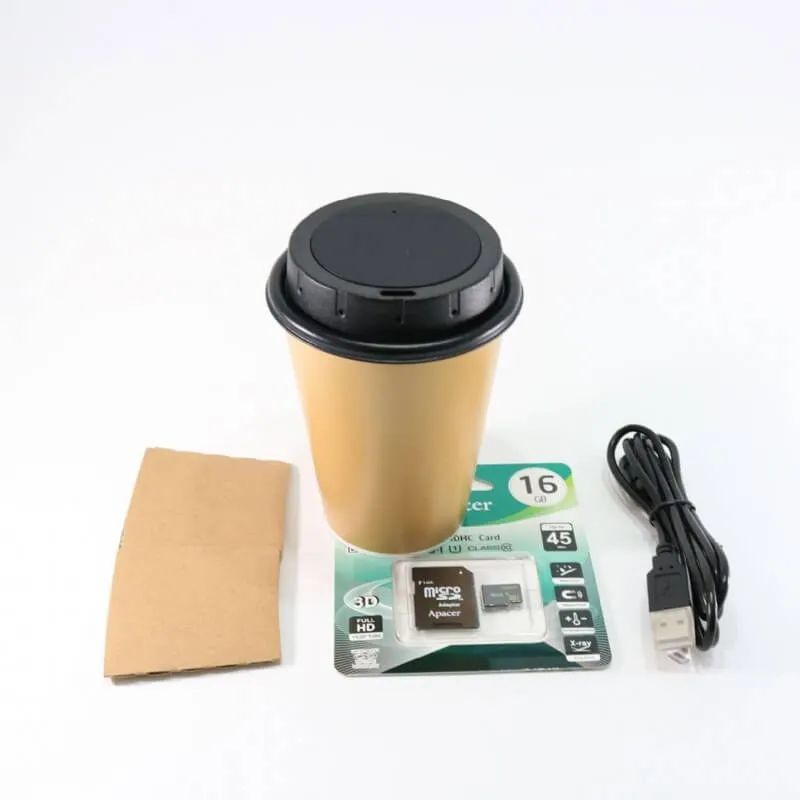

This mini DVR comes with three tea/coffee cups, that can be easily replaced by most to-go cups. The Wi-Fi module allows you to monitor the live feed and set up the DVR via the Smartphone App that can be easily downloaded from the App Store or Google Play. In the meantime the complimentary SD card allows you to store the recordings and evaluate them later.

PV-CC10W Coffee Cup DVR Main Features:

• Full HD 1080P Resolution
• Built-in Wi-Fi Module

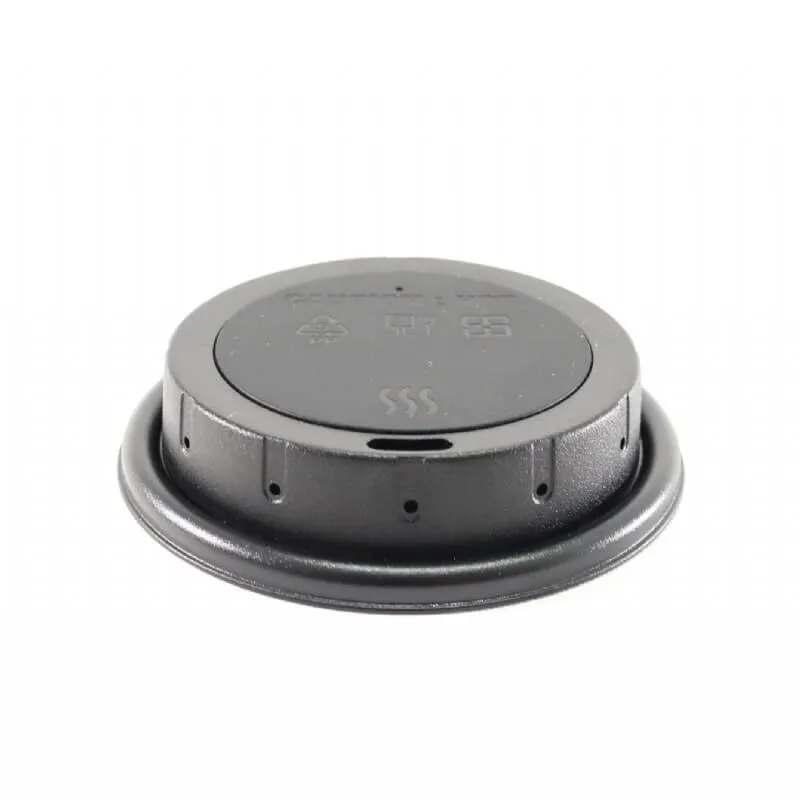

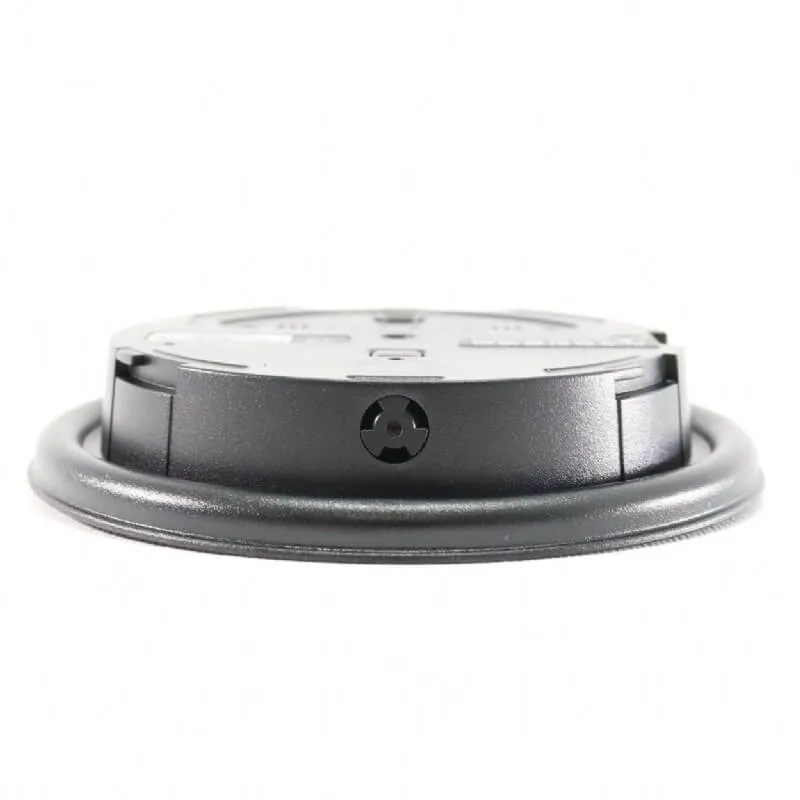

• Covert lens in the coffee lid for indoor and outdoor surveillance
• Coffee cup lid with covert mini DVR fits most to-go tea/coffee cups
• 3* Coffee cups supplied
• Records up to 160 min on the included 16 GB SD Card
• Supports up to 32 GB SD cards (battery Lifetime up to 210 min)
• Timestamp

PV-CC10W Coffee Cup DVR Full Specifications:

Built-in image sensor: 1/3" progressive CMOS sensor

Sensor resolution: 2592*1944

Sensor sensitivity: 3.3 Lux @ F 2.0

Lens F/No; F 3.2

Focal Length: 4mm

Angle of View: 66°

Algorithm: H.264, JPEG

File Format: MOV, JPG

Video recording mode: Manual

Recording Capability: 1920*1080

Frame rate: Up to 30 fps

Wi-Fi: Built-in WiFi Module(IEEE 802.11b/g/n)

Wifi Protocol: RTSP

Memory type: Micro SD Card ( Support SDHC max=32GB)

Data interface: Mini USB 2.0

Date/Time Table: YYYY/MM/DD, HH:MM:SS

Power Input: DC 5V

Power Consumption: 380-420mA(WiFi OFF)(WIFI ON+80mA)

Charging Time: 240 min (400mA)

Battery Input: DC 3.7V / 1400 mA polymers battery (XK504355)

Recording time: 160min @ 1920*1080 resolution ( 16GB SD card )

Vibration Alert: Power on/off, Recording, Low battery

Dimensions: 93*93*20 mm

Weight: 88g



Battery Lifetime:

• 1080P Continuous recording 180min (WIFI OFF)
• 1080P Continuous recording 165min (WIFI ON)
• 720P Continuous recording 195min (WIFI OFF)
• 720P Continuous recording 180min (WIFI ON)
• WVGA Continuous recording 210min (WIFI OFF)
• WVGA Continuous recording 195min (WIFI ON)

PV-CAM iOS and Android apps for LawMate Wi-Fi recorders:

Google play link:
https://play.google.com/store/apps/details?id=cam.ac.com

App Store link:
https://itunes.apple.com/us/app/pv-cam-viewer/id986625862?mt=8

How to use the PV-CC10W Coffee Cup DVR:

1. Press the ON/REC/Wi-Fi Button for 3 seconds. Nr 6 in name and parts illustration.
2. The DVR will start recording automatically after vibrating once.
3. To turn on the Wi-Fi short press nr 6 as shown in the illustration, and follow the step-by-step setup instructions in the PV Cam manual available for download below.

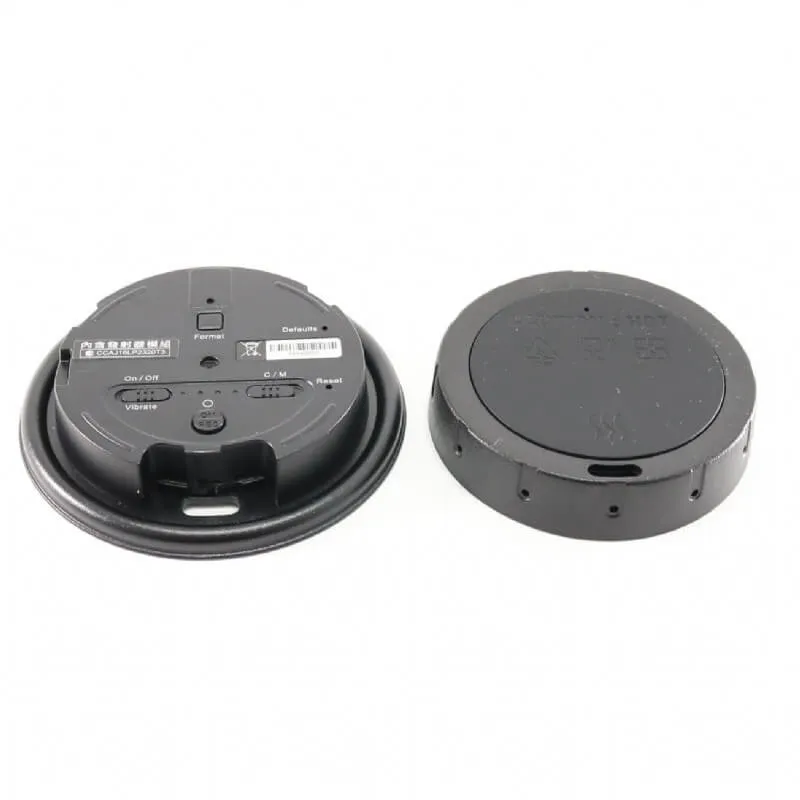

>>PV-CC10W Name and parts illustration from Quick Manual<<

PV-CC10W FAQs

Note:
