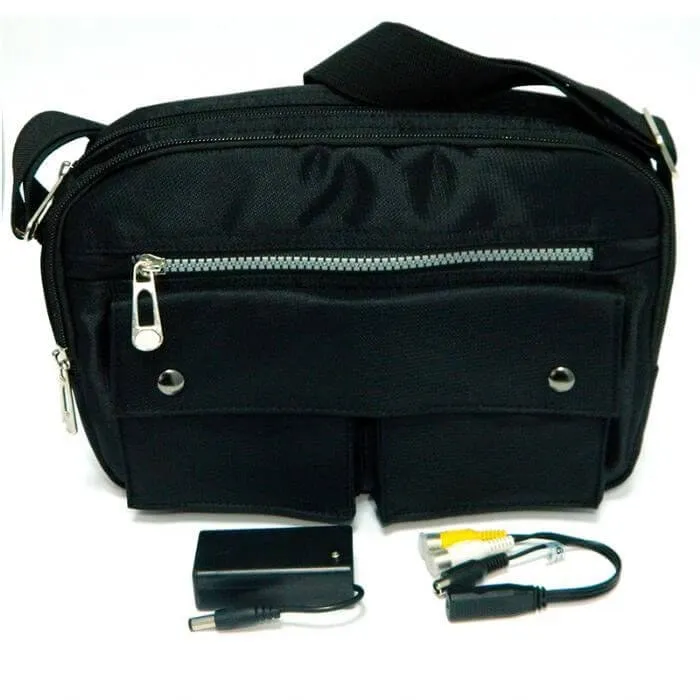

The LawMate HB-19 is an analog handbag camera that offers 700 TV Lines recording and great low light sensitivity at 0.005 Lux.
This product is end of line and no longer available. If you are looking for a product with the same or similar specifications, please see related products at the end of the page or contact us directly at [email protected]
It is in fact the Bestselling BU-19 camera hidden in a bag and ready to go for your covert operations. This camera produces great pictures in day and low light circumstances, has an angle of view of 78 degrees, and standard audio & video output.
Compatible with all PV series surveillance DVRs:
HB-19 Main Features:
- HD Resolution at 700 TV Lines
- Low power consumption with Sony 1/3' CCD Sensor
- Great low light sensitivity at 0.005 Lux
- Angle of View 78 Degree
- Standard Video & Audio analog output
- Compatible with common AV devices
- Comes with a switching cable and battery holder
>>HB-19 Nama & Parts from the quick manual.<<
HB-19 Full Specifications:
Video Syste: NTSC & PAL
Picture Element: NTCS: (H)976x(V)494 / PAL: (H)976x(V)582
Resolution (H): 700 TV Lines
CCD Image Sensor: SONY 1/3’’ 960H HAD II CCD
S/N Ratio: More than 54 dB (AGC off)
Min Illumination: 0.005 Lux @ F1.2 (50IRE)
Electronic Shutter: NTSC: 1/60~1/100,000; PAL: 1/50~1/100,000
Video Output: 1.0V p-p Composite at 75 ohm
Audio Output: 2Vp-p(MAX) 10KHz ohms Impedance
MIC Sensitivity: Yes
Focal lengths: 4.3 mm
Angle of View: 78 Degree
Power Supply Voltage: DC 5V+/-0.5V
Power Supply Current: 180 mA
Dimensions: 28*8*20 cm
Weight: 406 g
How to use the HB-19:
- Open the handbag and take out the AV out jack
- Plug the AV jack into the CAM IN port of the DVR
- Open the velcro hidden pocket in the handbag
- Place the DVR underneath the hidden layer and close it
Note:
For more info on the camera specifications and setting up please consult the PDF guides below.
24 Months Warranty.
>>Download detailed specifications (PDF)<<
