The LawMate PV-CHG30i covert DVR has multiple charging heads that are easily interchangeable and compatible with different types of Smartphones.
While the previous models (PV-GHG20i for Android and iOS) were only compatible with Smartphones, the PV-CHG30i can be used with Tablets which allows for a bigger screen when monitoring the live feed. Like all Lawmate IP models, it offers access to the settings, live feed, and snapshot options, from anywhere in the world with Wi-Fi / Mobile network availability.

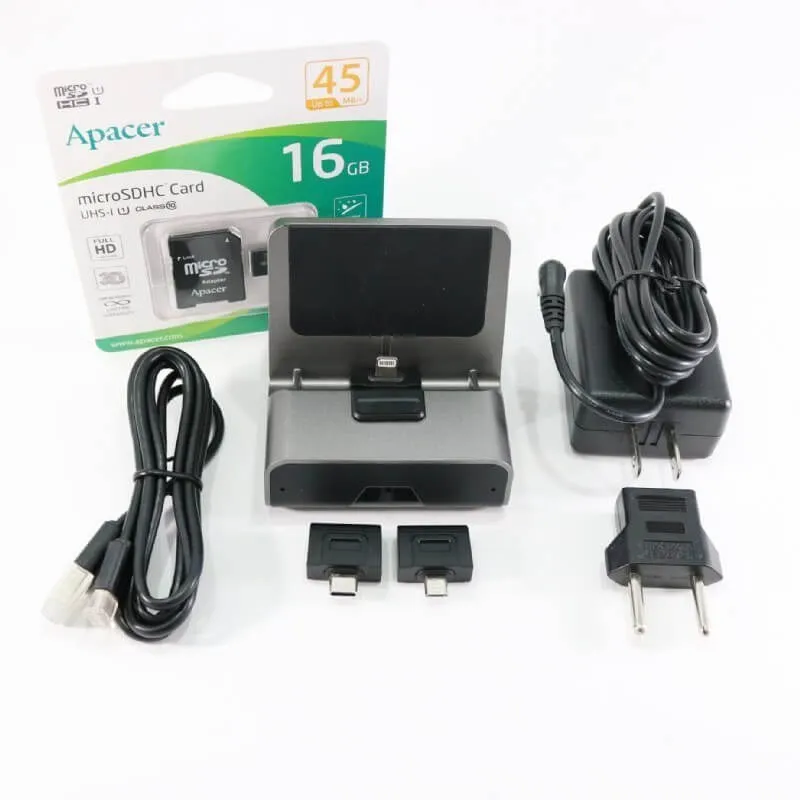

This fully functional smartphone charger can be set up to different resolutions (1080p / 720p / WVGA) and multiple recording modes (Auto/Manual/Motion Detection) while offering the overwrite function if you can not access the location for SD Card exchange. The CDS sensor at the back of the device automatically powers on the Infra-Red feature when it is dark in a room. A 32 GB SD card is provided with the accessories.
This charger is powered directly from the power outlet, which ensures continuous recording if necessary and ease of mind as there is no battery that can run out in the middle of recording. Besides continuous monitoring of the area the PV-CHG30i is placed in, it comes with three charging heads that correspond different types and models of smartphones, so from now on you will only need one charger.
This is a truly versatile device that will adapt to your recording requirements.
LawMate PV-CHG30i Main Features:
- Wi-Fi / IP module allows you to view the live feed from anywhere in the world
- For Smartphones and Tablets
- Appears and can be used as a Smartphone charger
- Comes with multiple charging heads and fits various Smartphone types
- Multiple resolutions with; 1080p / 720p / WVGA @ 30fps
- Infra-Red feature automatically powers on when it is dark
- Included 32 GB SD card and overwrite function
- Auto/Manual/Motion Detection recording modes
- Powered by the cord (AC outlet) which allows unlimited recording time
LawMate PV-CHG30i Full Specifications:
Built-in Image Sensor: 1/2.9" progressive CMOS sensor
Sensor Resolution: 2000x1121
Sensor Sensitivity: 0.1 Lux @F 2.0
Lens F/No.: F 2.0
Focal Length: 4.3mm
Angle of View: 78.2°
Algorithm: H.264, JPEG
File Format: MOV, JPG
Video Recording Mode: Auto/Manual/Motion Detection
Infra-Red Recording Mode: Powers on automatically
Recording Capability: 1920x1080, 1280x720, 848x480
Frame Rate: Up to 30 fps
Photo Capability: 2M (1600*1200)
Wi-Fi: Built-in Wi-Fi Module(IEEE 802.11b/g/n)
Wi-Fi: Protocol TCP/IP
Memory Type: SD Card (32 GB included)
Data Interface: Mini USB 2.0
Date/Time Table: YYYY/MM/DD, HH:MM:SS
Snapshot: Recording and playback video (via smartphone)
Power Input: DC5V 3A
Recording time: 500min @ 1920x1080 resolution on a 16GB memory card before overwriting
Low light sensitivity: 0.1Lux
Dimensions: 75*78*72 mm
LawMate PV-CHG30i Feature Focus:
Upgraded version of long-year bestsellers - now with multiple charging heads
The PV-CHG20i for Android and iOS are well-known products to Lawmate users, and now the new upgraded version that is compatible with new smartphone models is available. There is no more need to buy different chargers for different types of Smartphones, and you can use them for multiple smartphones if you have work as well as a private phone.

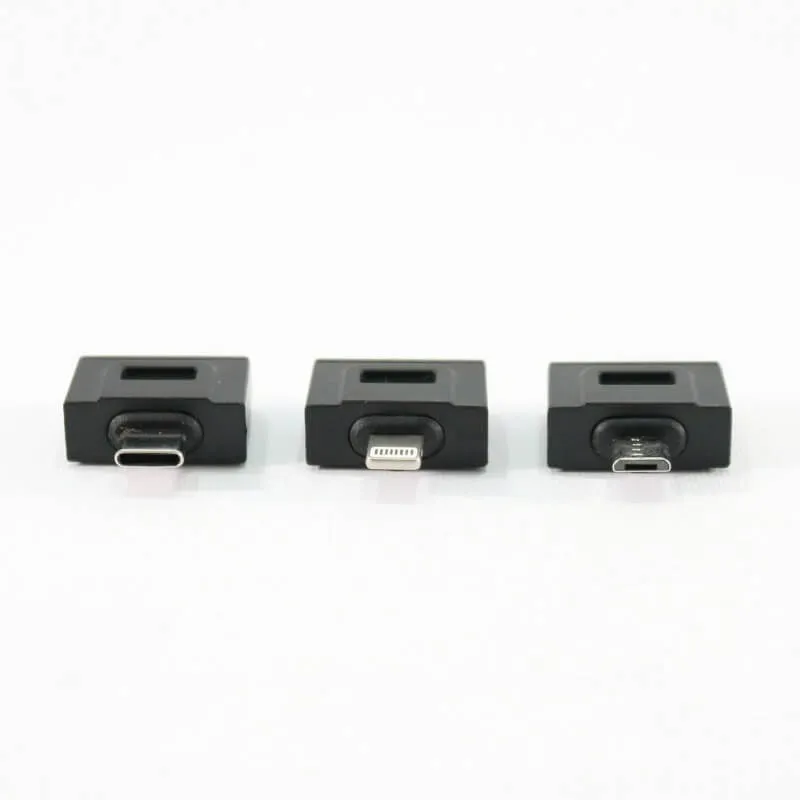

>>PV-CHG30i comes with 3 different charging heads; type-C for new Android phones, the (lightning) charger for iPhones, and the micro USB for old android phones.<<
Perfect for home and office surveillance
The PV-CHG30i is powered by a power outlet. No batteries are needed for this covert piece, and you do not have to worry about the battery status. Paired with the overwrite function and the ability to access the settings via smartphone, you do not even have to be physically present to access the live feed, format the SD card, etc. Meanwhile, it remains covert and functional as various Smartphones can be charged with the device.
For Smartphones and Tablets
The previous models were only Smartphone compatible, now you can enjoy the perks of a bigger screen by using your Tablet to oversee the live feed.
Infra-Red automatically available

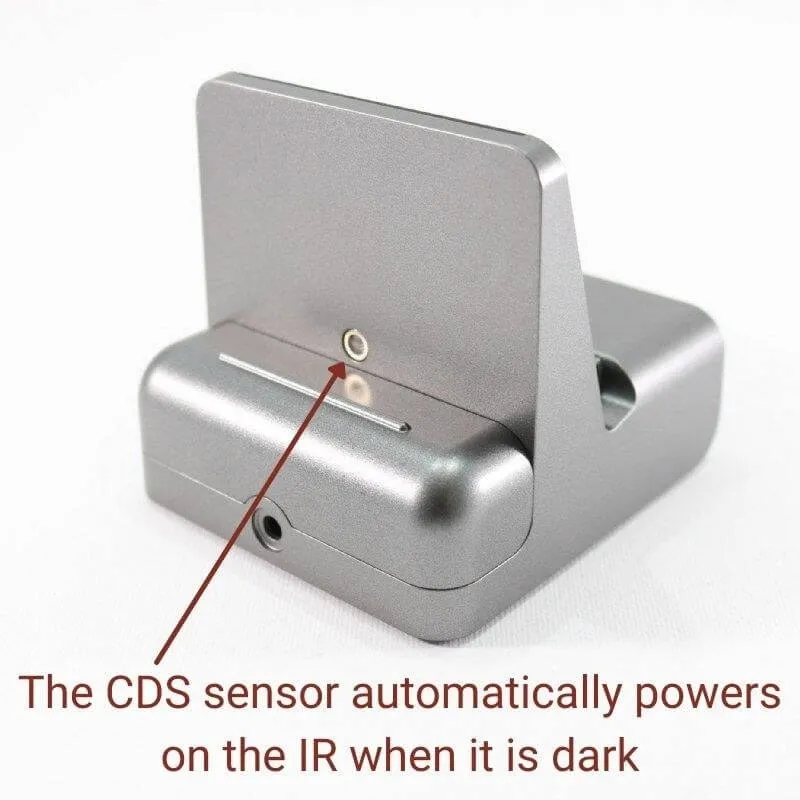

The CDS sensor which is located at the back of the device reacts to the amount of light that is present and automatically powers on the Infra-Red recording mode. You can see the comparison between the PV-CHG30i and the previous PV-CHG20i models below. The low-light performance images, provide in our experience a better overview of the low-light performance than the lux measurements in the specifications.
Wi-Fi / IP Module
When connected via IP, the device will be accessible from anywhere in the world with Wi-fi or a Mobile network connection on your smartphone.
PV-CAM iOS and Android apps for PV-CHG30i:

How to use the PV-CHG30i:
- Choose the correct charging cable for your smartphone
- Plug the 5V wall adapter into an electrical outlet

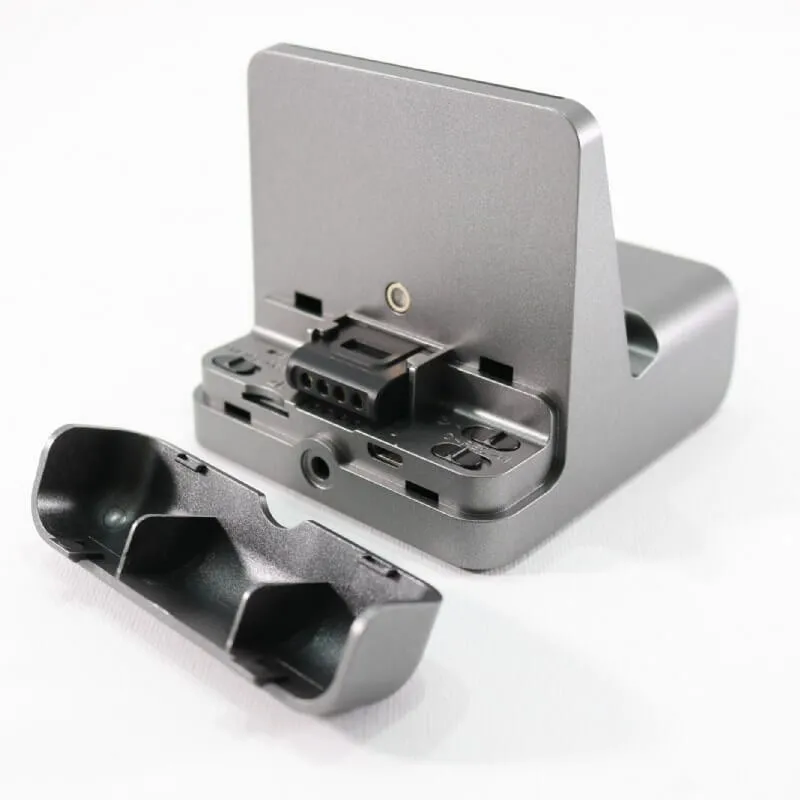

- Open the back cover of the device and insert the provided 32 GB SD card in the SD card slot
- Turn the Wi-Fi on, also under the back cover of the device, number 10 in the names and parts illustration above
- Press the On/Off button
- After this the system initialization will take about 40 seconds when the red LED light turns on, it indicates that the recording mode is On
- The blinking orange LED indicates that the device is connected to Wi-Fi and ready for P2P connection
- Take a look at the IP user manual below with detailed instructions on how to set it up, or take a look at a video here.
Note:
It is very important to enter the exact same router name as stated on your device when configuring it in the App. For more information regarding the PV-CHG30i please consult the PDF specifications below.
Important IP setup Tip - Obligatory deleting of the device from the Device Management section of the App if you wish to switch phones. Otherwise, the device will be linked to the phone via the server and you will not be able to connect to the IP via other smartphone/s.
New info on SSID: it turns out that IP products (such as this one) cannot change the SSID name. Wi-Fi products only can change the SSID name. However, once connected to the IP the device's name is the same as your router name.
24 months warranty.
>>Download detailed specifications (PDF)<<
