LawMate PV-500 ECO2 3inch Touchscreen Analog DVR
-10%
272,25  EUR  inc VAT
302,50  EUR  inc VAT
Ready for delivery
14 day refund
24 month warranty

The PV-500 ECO2 DVR is an upgraded version of the previous PV-500 ECO model. It comes with dual analog camera input that will work with your existing cameras.

This product is back in stock and available in limited numbers only. Place your order now and get the last of the popular budget DVRs. If you need any assistance or have additional questions contact us directly at [email protected]

The PV-500ECO2 offers HD 720P recording resolution, and multiple recording modes; the Normal and Motion detection mode. It also offers the optional timestamp.

Works with all CCD and CMOS cameras and includes RCA input cables. The DVR supports NTSC and PAL standards and is compatible with both 5V and 12V analog cameras.

It comes with a 16 GB SD card and supports up to 32 GB SD cards, if formatted to FAT32 it can accept up to 128 GB SD Cards.
With the included BA-2200 it offers 3h of recordings, and you can always upgrade it with the BA-4400 and have up to 7h of recordings. The DVR comes with an EU power adapter and wall charger, however, you can charge the included and optional batteries with the BCM-DUO1 as well.

The DVR also offers to cut your video files in 3, 5, and 10-minute lengths that enable you to sort through the material easily.

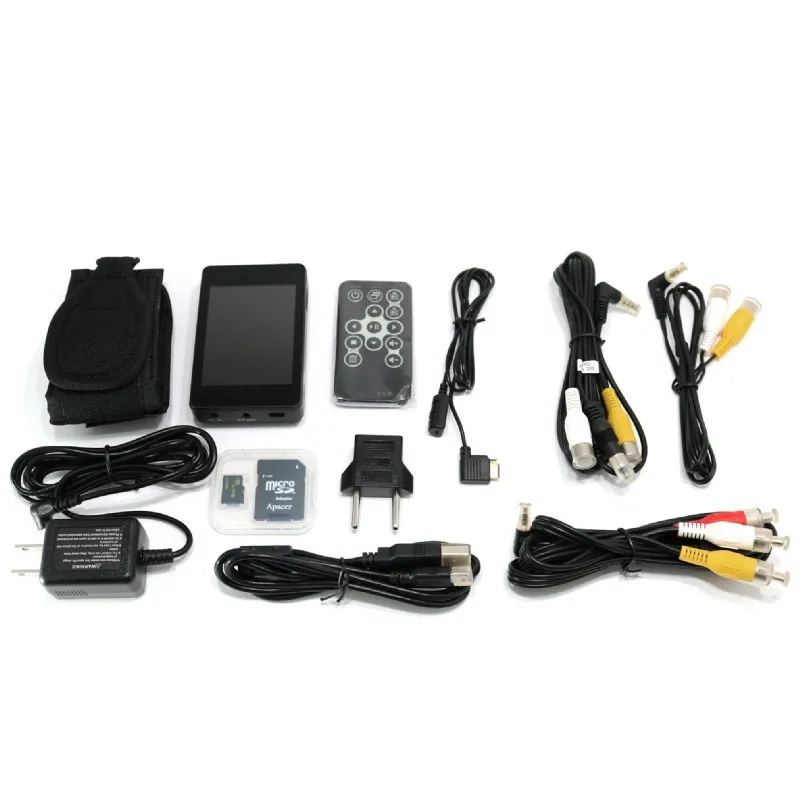

It includes all popular accessories including the IR remote control and cable controller for additional operation methods. Furthermore, it comes with password protection and a lock screen option as well.


PV-500 ECO2 DVR Main Features:

  • Small & lightweight with D1 video quality
  • With a 3” LCD Touchscreen on an entry-level DVR
  • Compatible with both 5V and 12V analog cameras
  • Compatible with CM-BU20 analog button camera (available as a Bestseller Kit)
  • Compatible with BU-19 5V analog camera
  • Compatible with CM-BU18 analog camera
  • Supports LawMate CMOS and CCD analogue cameras like the HB-19
  • Multiple recording modes: Normal/Motion Detection
  • Sound recording On/Off
  • Take a screenshot on preview & playback video
  • Date & time stamp on video - optional
  • Mini USB connection, memory card storage
  • Compatible with the BA-2200 and BA-4400 batteries
  • Can be charged with the BCM-DUO1 dual charger



PV-500 ECO2 DVR Full Specifications

LCD: 3.0" 960*480 TOUCH TFT
Algorithm: MPEG4, JPEG
File Format: AVI, JPG
Video Recording Mode: Normal/Motion Detection/
Recording Capability: 720x576 & 720x480
Frame Rate: Up to 30 fps (720x480) Up to 25 fps (720x576)
Memory Type: Micro SD Card ( Support SDHC max. 32GB)
Data Interface: Mini USB 2.0
DC 5V Output: at 2.5mm AV Input Jack
DC 12V Output: at 3.5mm AV Input Jack
A / V output: A / V cable ( NTSC/PAL standard TV output & audio output )
Disguised Mode: Stand-By, Power-Off
Date/Time Table: YYYY.MM.DD, HH,MM,SS
Snapshot: Snapshot image when preview and playback video
Power Input: DC5V
Power Consumptions: 200mA-490mA
Battery Input: DC 3.7V / 2100 mA Lithium battery
Charging Time: 240min(700mA)


PV-500 ECO2 DVR Feature Focus:

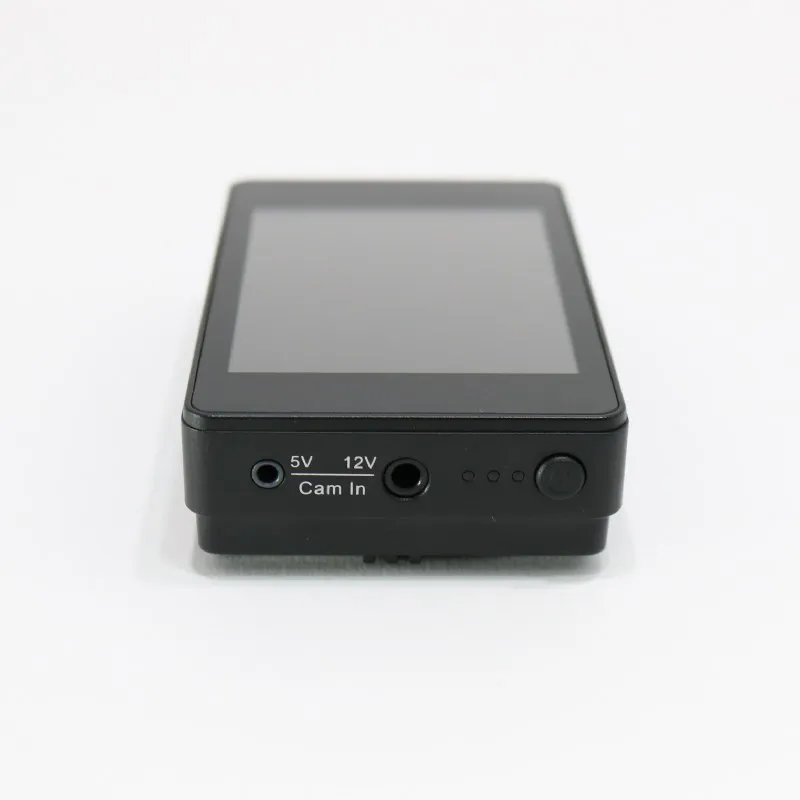

Dual Analog Camera support

This is a long-awaited and new option for Lawmate's DVRs. You can use the analog cameras that are already at your disposal with this DVR. It offers both 2,5 mm input with DC 5V output, as well as 3,55 mm input with DC 12V output. It will also be compatible with the CMOS and CCD analog cameras from Lawmate like the handbag camera, the necktie camera, or the bit older models like the tie clip and power cord cameras. No matter which analog camera you need to use, this DVR will support it. Please note that the cameras can support 2 different analog cameras, however, it can not use them at the same time for recording.


Password protection

Device offers protection of your recorded files, so they can not be erased without the administrator's permission. You have the option to set the password and to enable or disable the password protection on the device. Together with the timestamp option this DVR makes it possible to be used for law enforcement purposes and can deliver evidence that will hold up in court!

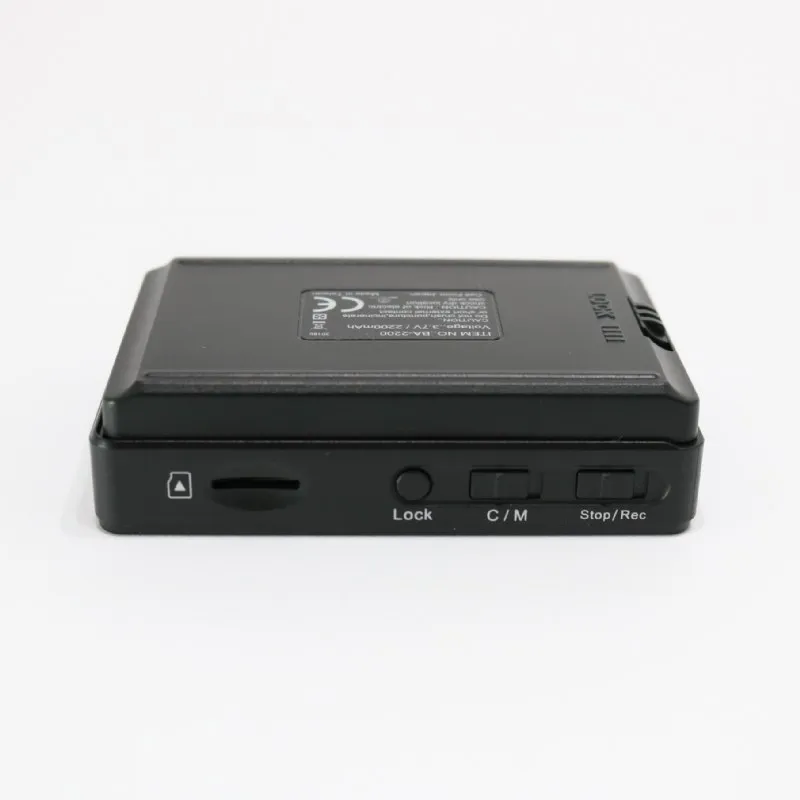

Recording modes

The Normal and Motion detection recording modes are pretty much a Lawmate standard by now. They are available in the devices menu as well as in the button on the DVR itself, so you will be able to switch quickly from C/M (continuous and motion) recording mode to the other.


Responsive Touchscreen

The PV-500ECO is in the range of the PV-500L3 and PV-500ECO predecessors. It features a Touchscreen that offers an easy to use menu with settings, preview, recording modes, etc.

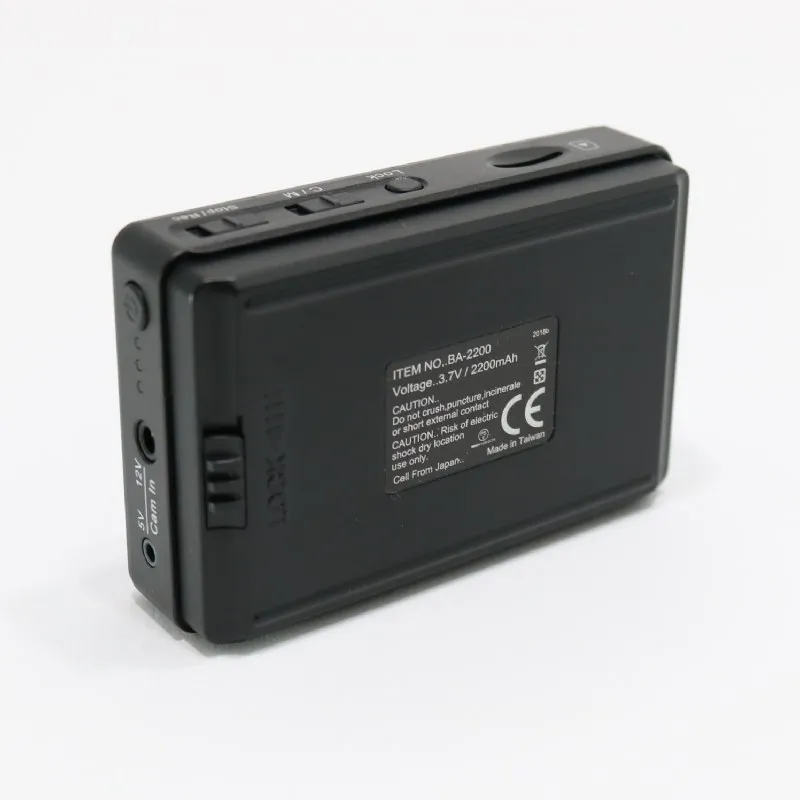

Batteries and recording

The included standard BA-2200 battery enables the device to record up to 3 h, while the BA-4400 battery option has turned into our biggest bestseller when it comes to accessories, as it offers up to 7 h of recordings. Also, it is always good to have an extra battery available, and all of them can be charged with the BCM-DUO1 charger.


Watch our "LawMate PV 500ECO2 DVR + BU-19 Analog Camera - Unpacking & Setup" YouTube video:



How to use the PV-500 ECO2 DVR:

  1. Insert the included 16 GB SD card in the DVR. It is always good to format the new card prior to the first use of the DVR.
  2. Press the power button to start the DVR.
  3. Connect an analog camera of your choice; 2,5 mm 5V or 3,55 mm 12V.
  4. Select a recording mode.
  5. Press the recording button.



PV-500 ECO2 FAQs


Can the LawMate PV-500 ECO2 DVR support external analog cameras?
Yes, the LawMate PV-500 ECO2 DVR supports external analog cameras through its dual analog camera input. This feature allows users to connect their existing analog cameras to the DVR, enhancing its versatility and usability in various surveillance setups. It is designed to work seamlessly with analog cameras, including the CM-BU20 Button Camera.


Can the recording mode be changed on the LawMate PV-500 ECO2 DVR?
Yes, the LawMate PV-500 ECO2 DVR features multiple recording modes, including Normal and Motion detection mode. This allows users to select the most appropriate recording mode for their specific surveillance needs, whether continuous recording or triggered by motion. The flexibility to switch between modes enhances the DVR’s utility in various surveillance scenarios.

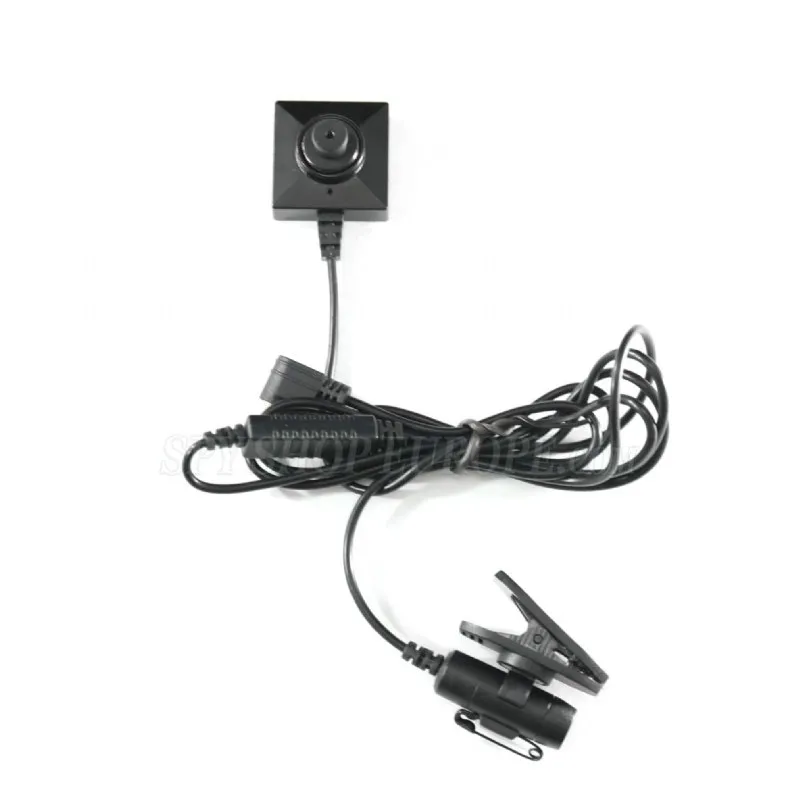

Does the CM-BU20 Button Camera come with an integrated microphone?
Yes, the CM-BU20 Button Camera comes with an integrated microphone. This feature enables audio recording alongside video, providing a more comprehensive surveillance capability. The inclusion of an integrated microphone allows for the capture of both visual and auditory information, making it more effective for evidence gathering and monitoring purposes.


Does the CM-BU20 Button Camera have low light recording capabilities?
Yes, the CM-BU20 Button Camera offers low light recording capability of 0.015 Lux. This feature allows for clear video recording in very low light conditions, making it ideal for covert surveillance operations where lighting cannot be controlled. The camera’s ability to capture clear footage in low light enhances its versatility and effectiveness in a wide range of environments.


Is there a selectable NTSC/PAL switch on the CM-BU20 Button Camera?
Yes, the CM-BU20 Button Camera has a selectable NTSC/PAL switch. This feature allows the camera to be compatible with both NTSC and PAL video systems, making it versatile for use in different regions and with various recording equipment. The ability to switch between NTSC and PAL standards enhances the camera’s usability across different geographic locations.


What is the angle of view for the CM-BU20 Button Camera?
The CM-BU20 Button Camera offers a 66-degree angle of view. This wide angle of view allows for a broad coverage area, making it effective for capturing more of the scene with a single camera. The 66-degree angle is particularly useful for covert surveillance, as it provides a comprehensive view while remaining discreet.


What is the maximum SD card capacity supported by the LawMate PV-500 ECO2?

The LawMate PV-500 ECO2 supports up to 32GB SD cards natively, and up to 128GB when formatted to FAT32. This allows for extensive video storage capacity, enabling longer recording times without the need for frequent SD card swaps. The inclusion of a 16GB SD card provides a ready-to-use solution, while the option to expand offers flexibility for more demanding storage needs.


What is the recording resolution of the LawMate PV-500 ECO2 DVR?
The LawMate PV-500 ECO2 DVR offers HD 720P recording resolution. This ensures that the video footage is clear and detailed, making it suitable for professional use. The high-definition resolution is a significant upgrade from standard definition, providing better clarity and detail in recorded videos.


What is the resolution of the CM-BU20 Button Camera?
The CM-BU20 Button Camera has a resolution of 520 TV Lines. This resolution ensures that the video footage captured is clear and detailed, suitable for professional surveillance applications. The high resolution of the camera contributes to the quality of the video output, making it easier to identify subjects and details within the footage.




Note:

For more information please see the PDF file/s available for download below.

24 Months Warranty.

>>Download detailed specifications (PDF)<<
