The NT-19 Plus Neck Tie Camera is a new analog 700 p CCD camera from LawMate.
This product is end of line and no longer available. If you are looking for a product with the same or similar specifications, please see related products at the end of the page or contact us directly at [email protected]
This covert camera from LawMate is basically the BU-19 Bestseller hidden in a Tie and ready to use for your covert operations. With HD resolution and min. illumination of 0.005 Lux, this camera finds the perfect balance for day and night recording.

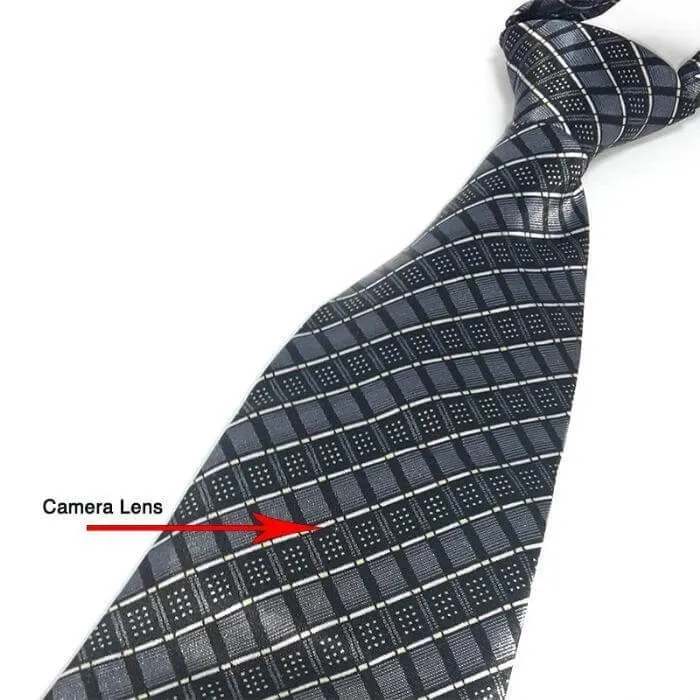

The lens can not be seen due to the design of the tie.
NT-19 Plus Main Features:
- HD Resolution - 700 TV Lines & SONY 1/3’’ CCD Sensor
- Low Light Sensitivity at 0.005 Lux F1.2
- Built-In Microphone
- Angle of View 78 Degree
- Comes with switching cables and a battery holder to offer variable output possibilities
- Invisible lens - highly concealed in the design
Compatible with all PV series surveillance DVRs:
NT-19 Plus Full Specifications:
Video System: NTSC & PAL
Picture Element: NTCS: (H)976*(V)494 / PAL: (H)976*(V)582 NTSC: (H) 976
Resolution (H): 700 TV Lines
CCD Image Sensor: SONY 1/3’’ 960H HAD II CCD
S/N Ratio: More than 54 dB (AGC off)
Min. Illumination: 0.005 Lux @ F1.2 (50IRE)
Electronic Shutter: NTSC: 1/60~1/100,000; PAL: 1/50~1/100,000
Video Output: 1.0V p-p Composite at 75 ohm
Audio Output: 2Vp-p(MAX) 10KHz ohms Impedance
MIC Sensitivity: Yes
Focal lengths: 4.3 mm
Angle of View: 78 Degree
Power Supply Voltage: DC 5V +/- 0.5 V
Power Supply Current: 180 mA
24 months warranty.
>>Download detailed specifications (PDF)<<
