JJN Digital WAM-X25 Wireless Activity Monitor is a handheld, compact multi-band RF signal detector with a frequency range 0-14GHz, equipped to detect even the latest 5G devices.
This activity monitor is a highly valuable piece of counter-surveillance equipment for TSCM specialists and for less experienced users, by offering comprehensive detection and analysis of detected signals.
The WAM-X25 is designed to detect and log all RF activity in the surrounding environment, including 2G/3G/4G and the latest 5G devices, as well as Wi-Fi/Bluetooth/2.4GHz & 5GHz Devices. It detects mobile phones, smartphones, GPS bugs and trackers, SMS (Texts), 3G/4G/5G Video, and the latest Store & Forward devices.
With a 0-14GHz range of coverage, this Wideband detector, provides complete coverage, detection, and logging of transmissions from all types of radiofrequency devices. Additionally, with the 'Livescan' software feature, the WAM-X25 shows the detected live signal patterns graphically to help identify the signal type. Graph Mode also plots real-time or historical graphs for all detected cellular bands, which aids in further and more detailed analysis of transmissions.
Two new features the WAM-X25 boasts are the Wi-Fi Network Analyser and the Bluetooth Device Analyser. The Wi-Fi Network (2.4GHz & 5GHz) Analyser provides you with detailed activity data about WLAN networks in the surrounding area such as Hotspots, Routers, Wi-Fi cameras, etc. The built-in Bluetooth Device Analyser lists all nearby active Bluetooth devices such as smartphones, headphones, trackers, etc., and gathers detailed information about each one.

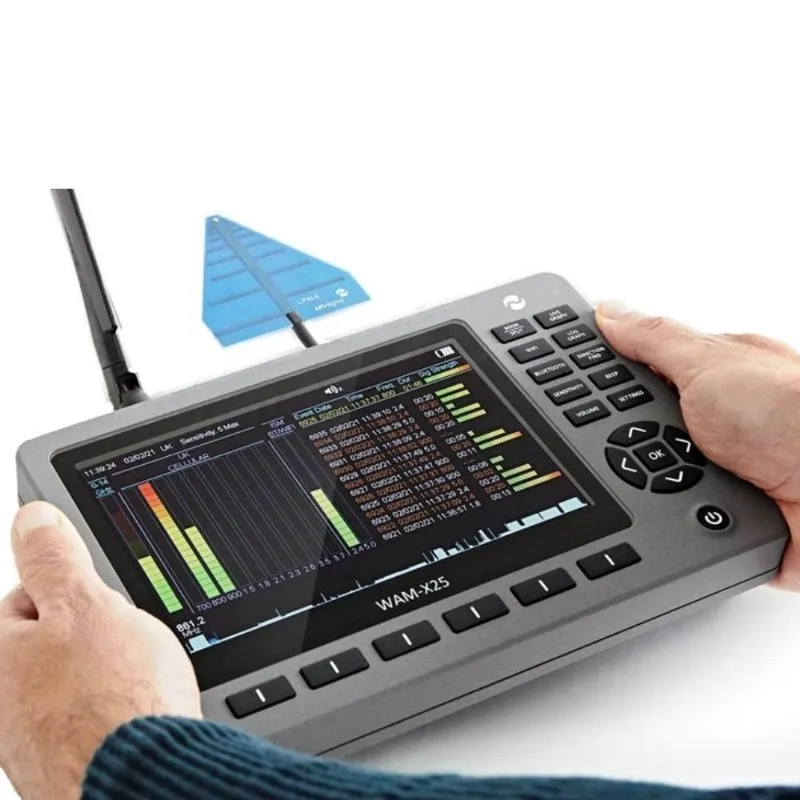

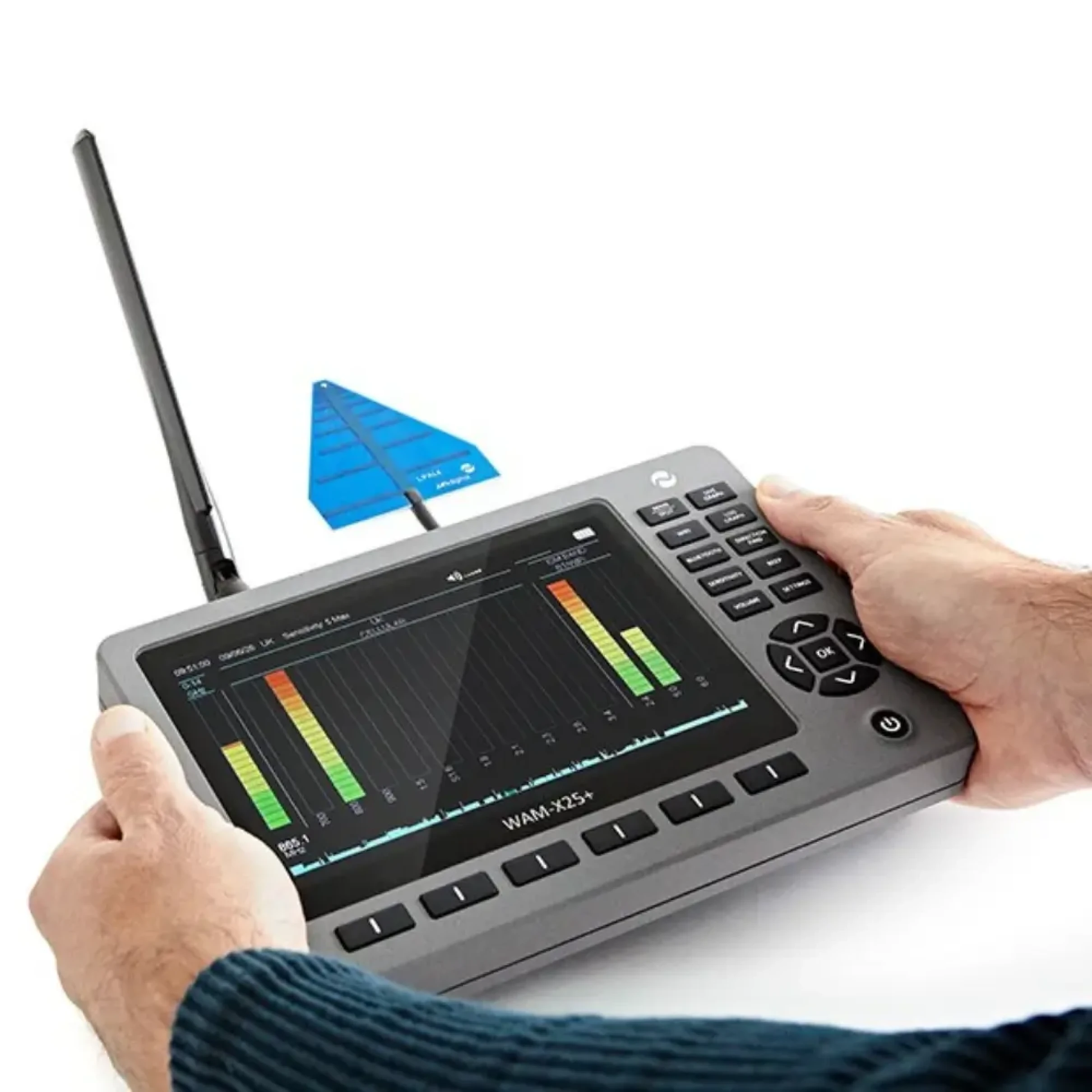

Direction Find Function is a new feature as well. This Direction Find Mode enables you to get an accurate indication of the detected signal source by rotating the WAM-X25 360 degrees using the directional antenna supplied and gathering signal strength information.
With the Worldwide Cellular Band Detection, the WAM-X25 offers you to simply select the international region the device is being used in, so it can then detect all relevant local cellular bands. The device is ideal for environments where cellular devices are prohibited, like meeting rooms, or in vehicles to locate tracking devices. Furthermore featuring are separate 2.4GHz & 5GHz bands for better detection of Wi-Fi/Bluetooth/Video and other latest generation ‘Store & Forward’ devices.

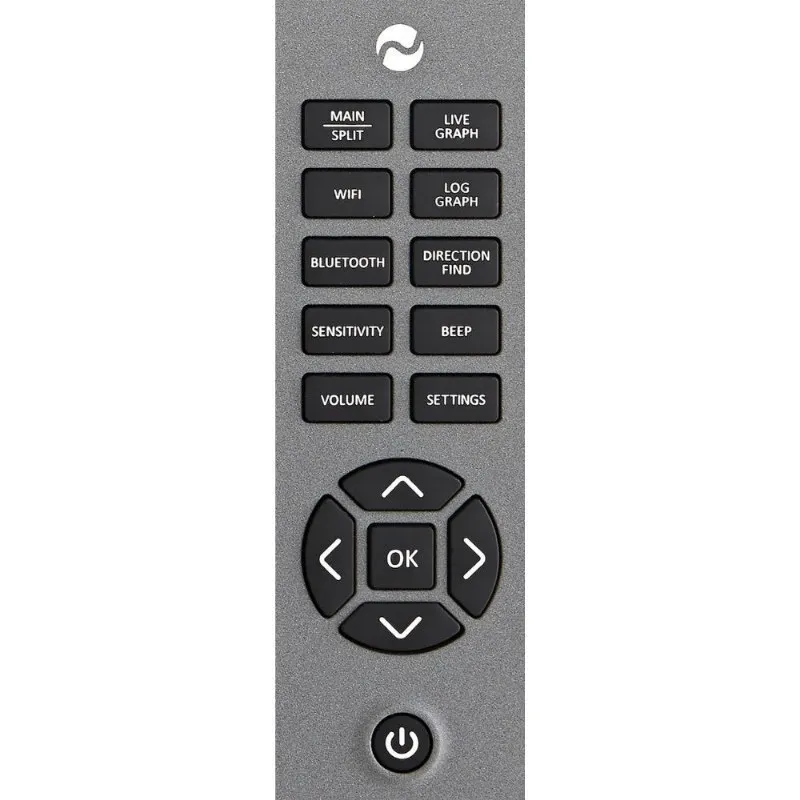

As with all JJN digital products, much thought has been put into the physical design for achieving maximum ease of use and durability. The keypad design allows for operating to be simple and intuitive and on the 7" high-resolution TFT screen, you are able to simultaneously perform real-time detection while also viewing previously occurred events. The unit itself is enclosed in machined aircraft-grade aluminum enclose, whilst the whole system comes in a compact heavy-duty military standard carry case.
With the integrated Lithium-Polymer battery, the WAM-X25 provides you with up to 8 hours of uninterrupted operation time.
JJN Digital WAM-X25 Main Features:
- Detection of 2G/3G/4G and latest 5G devices, including Wi-Fi/Bluetooth/2.4GHz & 5GHz devices
- Identifies mobile phones, smartphones, SMS (Text), GSM Bugs, GPS Trackers, 3G/4G/5G Video, Bluetooth & Wi-Fi devices, Store & Forward devices
- Worldwide Cellular Coverage
- Wideband RF Detector with frequency range 0-14GHz
- Separate 2.4GHz and 5GHz Wi-Fi detectors
- Wi-Fi Network Analyser for providing detailed information about WLAN networks
- Bluetooth Device Analyser for providing information about nearby Bluetooth devices
- Direction Find Function for precise location of the signal source
- Graph Mode plots real-time or historical graphs for all detected cellular bands
- Up to 10 000 events in the Event Log with Time/Date, Band, Duration & Signal Strength stamps

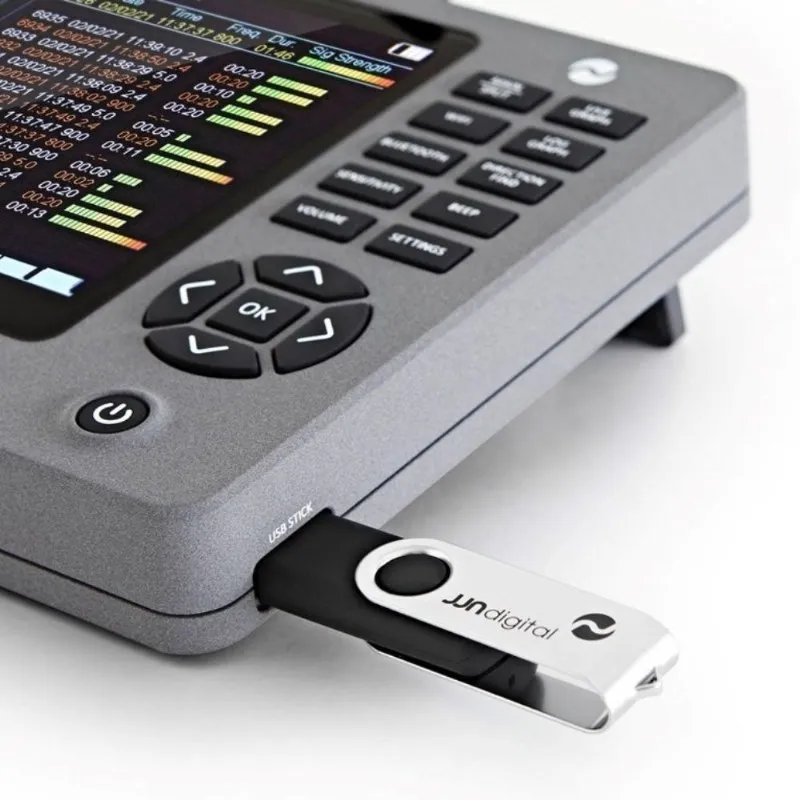

- USB stick for storage or viewing of logs
- High Resolution 7" Colour TFT Display
- Adaptable hinged antennas
- Enclosed in machined aluminum enclosure
- Comes in a military standard carry case
JJN Digital WAM-X25 Full Specifications:Wideband Frequency Range: 10MHz – 14000MHz (14.0GHz)
Cellular Regions: Europe, Asia, Africa, North America, South America, Australia
Cellular Frequency Range: International bands - (300 MHz to 6 GHz) – Maximum 10 viewable bands
Sensitivity: -70 dBm Max
2.4 & 5 GHz Frequency Range: 2400 to 2485 MHz & 5150 to 5850 MHz
Wi-Fi Analyser: 802.11a/b/g/n: 2.4 GHz and 5 GHz
Display: TFT Colour 7.0” High Contrast Graphic Display
Operating duration: Fully charged battery – up to 8 hours
Charging: Micro USB socket
Charge Time: 4 hours
Operating Temperature Range: -15 to +50 degrees C - Relative Humidity < 90%
Dimensions: 230 mm x 150 mm x 28 mm
a) Main Unit – 1.0 kg
b) Carry Case Complete – 2.7 Kg
Signal Processing and Control: RISC Based Microcontroller with real-time clock
Event Log: Maximum 10000 Events
USB Socket: For USB Stick download only
JJN Digital WAM-X25 Feature Focus:
Wideband detection in 0-14GHz frequency rangeThe WAM-X25 offers Wideband detection with a range from 0 to 14GHz, providing the highest range of coverage for any RF activity in the selected area. You can see the frequency of the detected signal and with the 'Livescan' software, you can view the live signal pattern graphically which helps identify the signal type. This is particularly useful when dealing with pulsing or burst devices like GPS trackers. The WAM-X25 detects 2G/3G/4G/5G devices and Wi-Fi/Bluetooth/2.4GHz&5GHz devices such as mobile phones, smartphones, GSM trackers and bugs, Store & Forward devices, etc.
Picture taken from the Specifications PDF
Wideband detection shown on the display
Worldwide Cellular Band DetectionThe Worldwide Multiband Cellular Detection is a feature that allows you to select the international region in which you are using the device, so the WAM-X25 will detect signals from all relevant local cellular bands. It is ready for the latest 5G devices, as well as existing 2G, 3G, and 4G bands. This feature is very useful for use in environments where cellular devices are not allowed like offices, meeting rooms, exam rooms, or vehicles. All activity is logged and saved so you can review it at a later time, in list format or graphically.
Separate 2.4GHz & 5GHz Wi-Fi DetectionThe separate 2.4GHz & 5GHz bands are used to aid in the detection of rapidly growing available Wi-Fi/Bluetooth/Video and the latest generation Store & Forward devices on the market. Store & Forward device records audio over a longer period of time and then transmits it in short regular bursts. With the separate bands, WAM-X25 will also uncover devices that use these bands as covert wireless video transmitters.
Wi-Fi Network AnalyserA new feature on the WAM-X25 is the Independent Wi-Fi Network (2.4GHz&5GHz) Analyser which provides you with detailed activity information about all WLAN networks in the local area, for example, Hotspots, Routers, Wi-Fi cameras, etc. The feature enables the WAM-X25 to scan through the detected Wi-Fi Access Points and Clients and then accumulate detailed data such as Date & Time, Wi-Fi MAC Address, Manufacturer (if available), Type (Access Point or Client), Number of Data Pockets, Wi-Fi SSID (if available) and band (2.4GHz or 5GHz).
Picture taken from the Specifications PDF
Wi-Fi Network Analyser with detailed information
Bluetooth Device AnalyserAnother new feature is the built-in Bluetooth Analyser which lists all nearby active Bluetooth devices, namely smartphones, tablets, headphones, trackers, etc. The WAM-X25 collects information including Date & Time, Bluetooth MAC Address, Manufacturer (if available), Signal Strength in dBm and Number of Data Pockets detected.
Direction Find FunctionThe Direction Find Function enables you to locate the source of a detected RF signal by rotating the WAM-X25 360 degrees while using the supplied directional antenna. While you are slowly rotating the unit, signal strength information is collected and plotted graphically over 360 degrees so you are able to get an accurate indication of the detected signal source.
Picture taken from the Specifications PDF
Direction Find Function on display
Event log for up to 10,000 eventsThe event log of WAM-X25 stores up to 10,000 events, each with Time/Date, Duration, Band detected and Signal strength stamps. They are stored so you can view them later on simultaneously as a list or graphically. The entire event log can be downloaded to a USB stick so you can store it or transfer it to a computer where you can view it for further analysis.

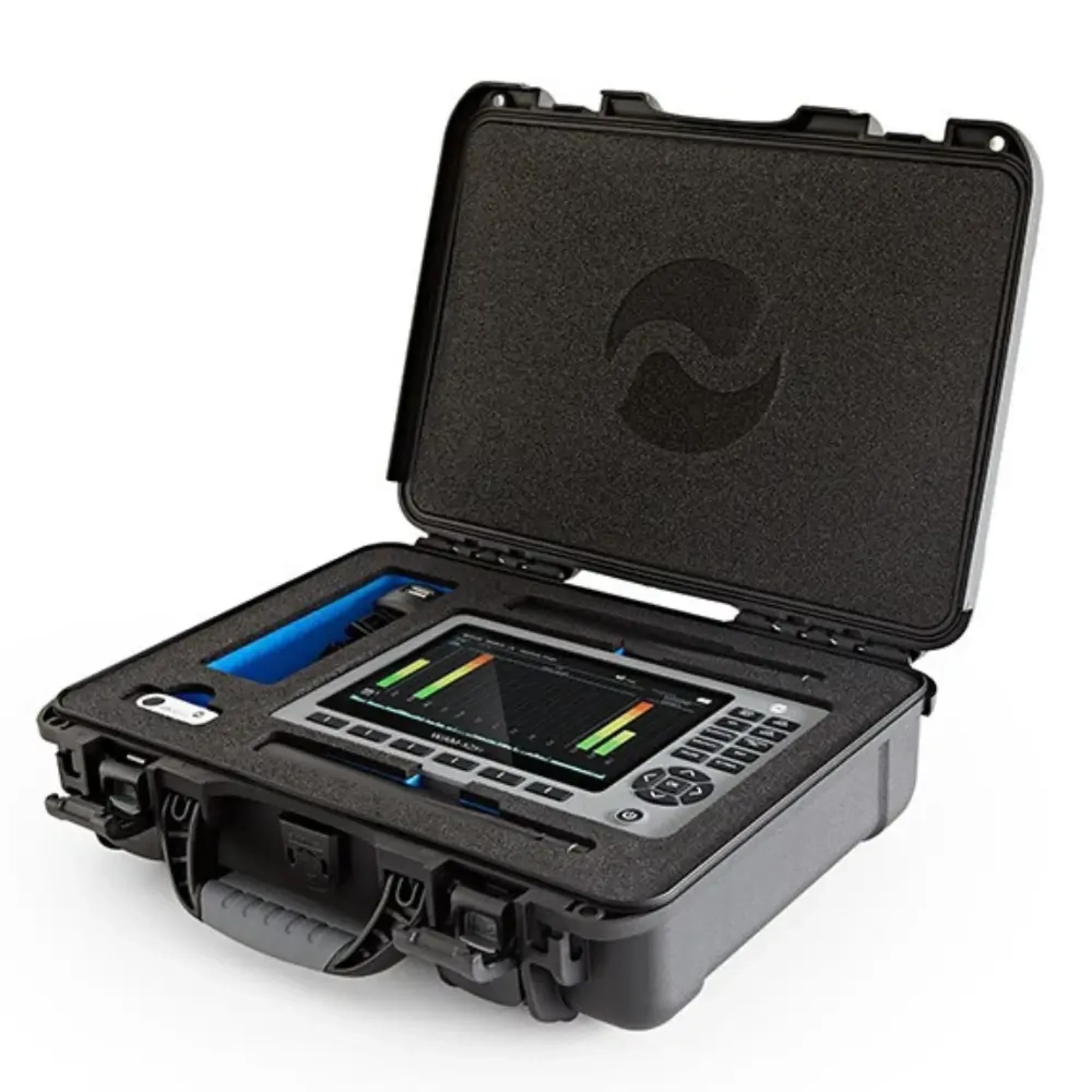

Quality buildThe unit is enclosed in a machined aircraft-grade aluminum enclosure for maximum durability while operating. Also featuring is a widescreen high-resolution 7" color TFT display that allows you simultaneous real-time detection and viewing of previously occurred events. Like all JJN digital products, the WAM-X25 is designed, manufactured, and tested in the UK with the highest quality standards and materials. The complete system with the unit and supplied accessories come in a compact heavy-duty military standard carry case for ultimate protection.
How to use the JJN Digital WAM-X25:
Take a look at the detailed functions of the WAM-X25, and the ease of use the product provides:
>>Download detailed specifications (PDF)<<
JJN Digital WAM-X25 Package Contents:
- WAM-X25 - Main Unit
- Adjustable hinged antenna x 2
- Directional Antenna LPA-14-SMA (Blue)
- 5V Micro USB Charger-110V to 240V AC input (Auto Switching) with International Adaptors
- USB Memory Stick

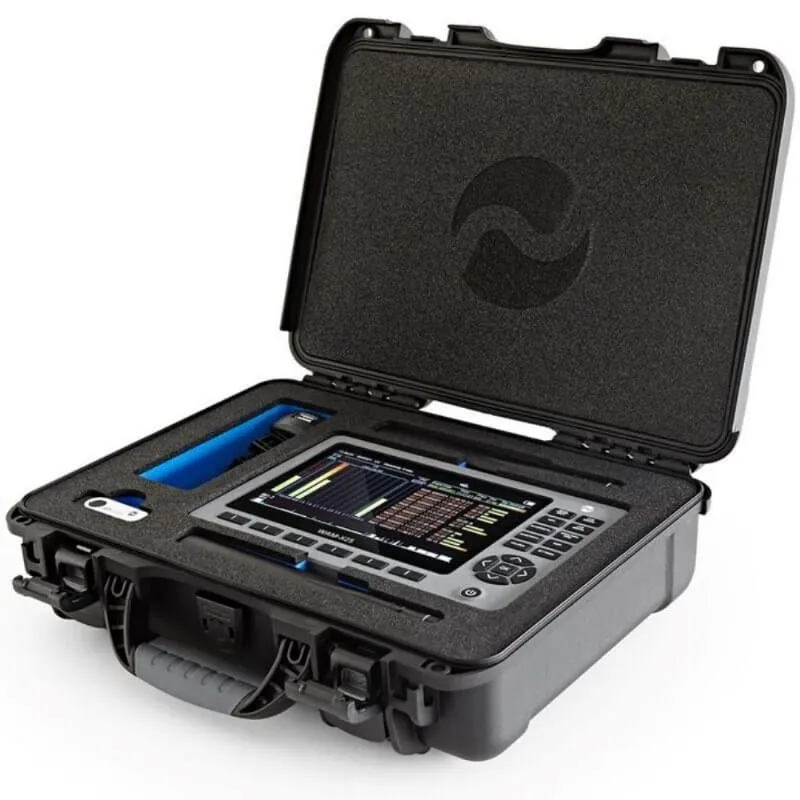

- High Protection Military Standard Carry Case
Can the WAM-X25 detect GPS trackers?
Yes, it can detect cellular bands used by GPS trackers as part of its multi-band detection capabilities.
Can WAM-X25 detect 'Store & Forward' devices?
Yes, the WAM-X25 can detect 'Store & Forward' devices that record audio over long periods and then transmit it in short regular bursts.
Can I use the WAM-X25 in my country?
Yes, the device allows you to use it worldwide by selecting the region of use.
Does the WAM-X25 show the strength of the detected signal?
Yes, each detected band has a 20-element bar graph running vertically.
Is there any software for data viewing on WAM-X25?
Yes, the device comes with software for viewing events graphically on a Windows-based computer.
How do I erase the log on WAM-X25?
You can erase the log by selecting the 'Erase Log' option in the SETTINGS menu.
What type of charger does the WAM-X25 use?
The device uses a supplied 5V charger with a Micro USB connector. Please keep in mind that only the original charger must be used to prevent the damage.
Can I customize which bands are detected with WAM-X25?
Yes, you can select which bands you want to be detected and ignore those you are not interested in through the 'Select Bands' option in the SETTINGS menu.
What should I do if WAM-X25 is not detecting any signals?
Make sure the antennas are properly connected and try adjusting the sensitivity levels.
What is the weight of WAM-X25?
The main unit weighs 1.0 kg, and the complete carry case weighs 2.7 kg.
What are the dimensions of the WAM-X25?
The dimensions are 230 mm x 150 mm x 28 mm.
For detailed info on the specifications and use of the device, please read the PDFs available for download below.
Use only the provided charger and cable, that are supplied in the
accessories of the unit. The usage of other chargers may damage the unit and is not
covered by the product warranty.
24 Months Warranty
