WAM-108t Multiband Wireless Activity Monitor Specifications:
Input Frequency Range 10MHz – 14000MHz (14.0GHz)
Display: TFT Colour 3.5’ High Contrast Graphic Display
Operating Temperature Range: -15 to +50 degrees C - Relative Humidity < 90%
Dimensions: 186mm x 195mm x 34mm (max)
Weight: 600 g – Main Unit
Signal Processing and Control: RISC-Based Microcontroller with real-time clock
Event Log: Maximum 4000 Events
USB Socket: For USB Stick Event Log download only
Battery:
- Internal Li-Ion - rechargeable
- Operating Duration - fully charged battery 8 hours
- Charge Time - 4 hours
WAM-108t Feature Focus:

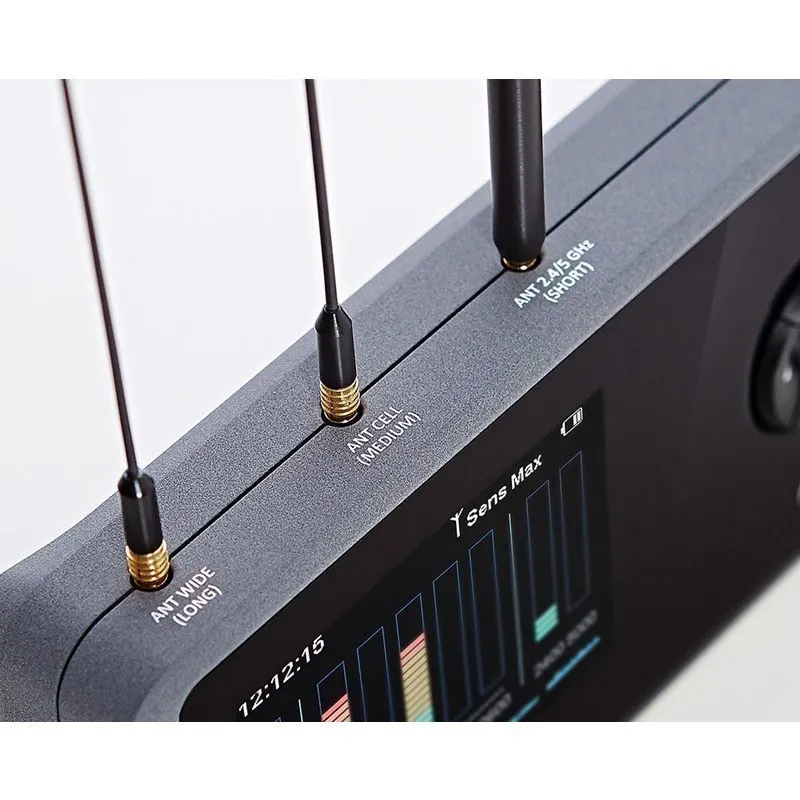

8 RF detectors and 4 Antennas for a complete scanning range
- The flexible Multiband Whip Wideband Antenna detects all frequencies from 0-14 GHz - currently the only portable device with this range on the market.
- The flexible Cellular Antenna detects the five Cellular bands, for phones, GPS trackers, and everything GSM-based; 800 MHz (4G), 900 MHz (2G/4G), 1800 MHz (2G/4G), 2100 MHz (3G), and 2600MHz (4G).
- The rigid 2.4 GHz & 5 GHz Antenna detects all devices that use Wi-Fi and Bluetooth, as well as any other 2,4 GHz device.

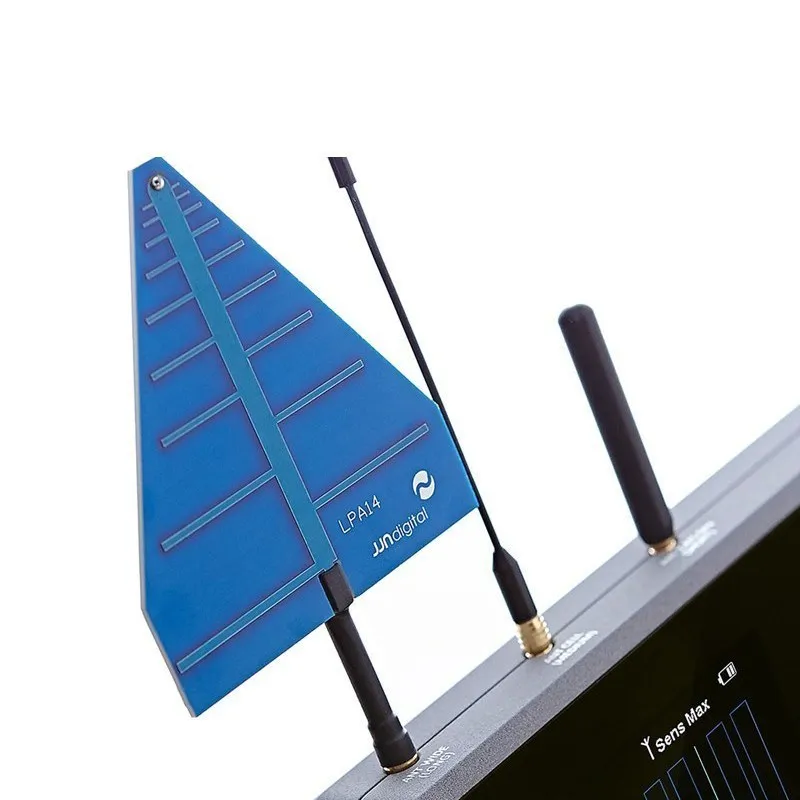

- The directional antenna will pinpoint the signals.
50 Meters Signal detection
The WAM-108t is Ultra-sensitive and detects signals from up to 50 meters, made possible by multiple high-gain amplifiers.
If needed you can choose the bands that you wish the device to detect, and the bands you wish to ignore. For example, if you are looking specifically for a phone on a cellular band, you can switch off the Wi-Fi detection.
Beep mode and Audio Demodulation (through a built-in loudspeaker or the provided earphones)
The "Beep" mode allows you to make your detection without looking at the screen, the beep tone will provide you with the needed information. A silent "Vibrate mode" is also available.
By using the audio demodulation feature you can listen to the detected signals via the earphones or the built-in speaker of the device itself. This is especially useful when you are detecting standard analog Bugs that have built-in microphones.
Saving, analyzing, and reporting

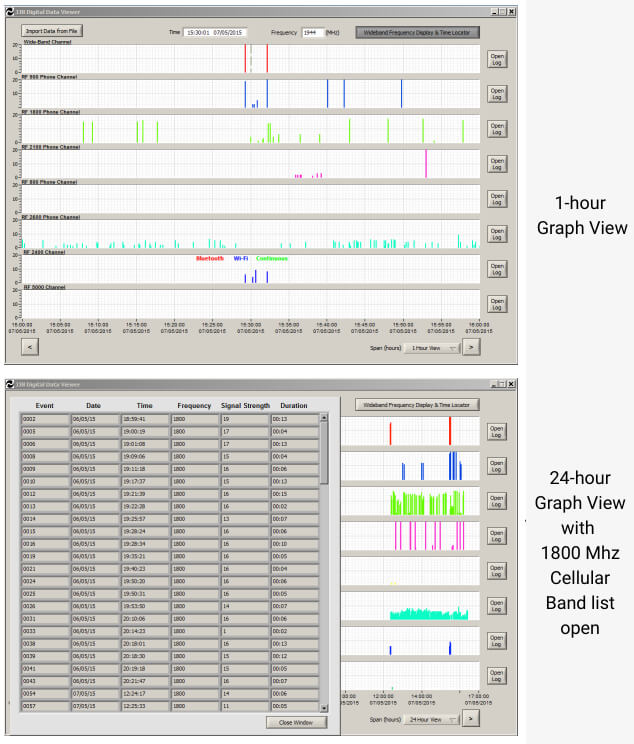

The New Digital Viewer software allows you to view the Event Log in an easy-to-view graphic or list format, on any PC that supports Windows. Up to 4000 events can be stored within the WAM108t itself for viewing.
By monitoring the cellular activity at specific times of the day, the personnel in sensitive areas and professions such as prisons, company board rooms, exam halls, etc., can identify unauthorized phone usage.

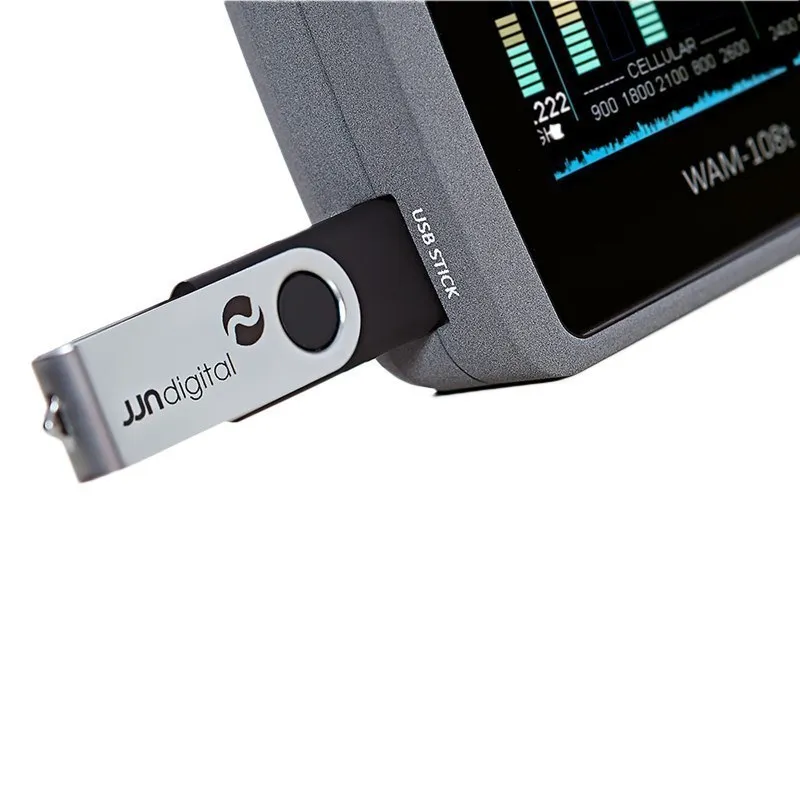

The entire event log can be downloaded via the provided USB stick, for storage or transfer purposes. This data can also be transferred to a computer for analysis and reporting purposes.
Events can be sorted through manually or can be searched through time /date.
>>Picture from user manual<<
Simplicity of use
The menu is simple and intuitive, and the TFT screen makes sure you can perform real-time detection, as well as view what has been going on in past detections. Each of the 8 bands, that are visible on the screen, has its own signal strength meter, that shows the signal strength from 1-20, making it possible for you to detect the precise source of the signal easier and faster.
At the same time, you have an overview of the event, date, time of a signal, frequency of a signal, signal strength, as well as duration.
Overall Quality

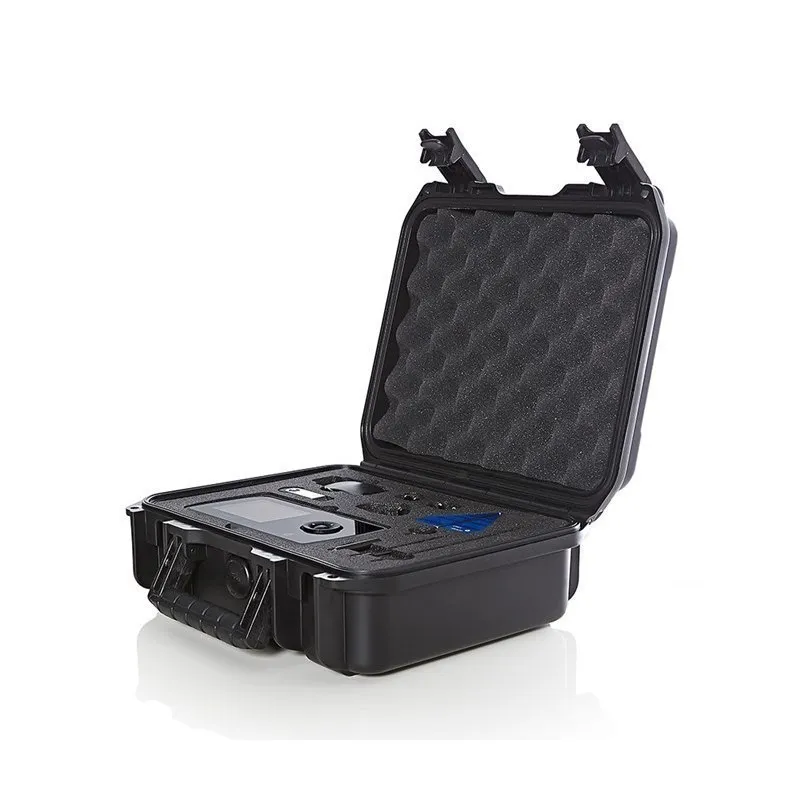

This professional product distinguishes itself not only with its superb detection performance, it is also made from high-quality materials and abides by the highest production standards. The device is encased in a Machined Aluminium Enclosure for maximum durability. It is delivered in a military standard carrying case that provides complete protection for the Kit. It is made in the UK and comes with CE Certificate.
How to use the WAM-108t:
Take a look at the detailed functions of the WAM-108t, and the ease of use the product provides:
