Research Electronics International

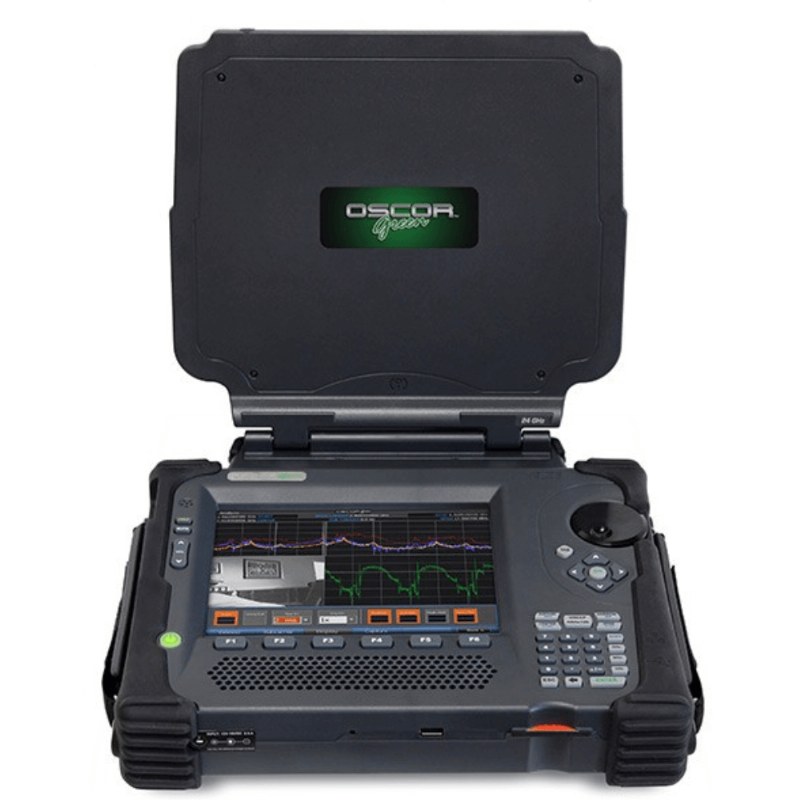

OSCOR Green Spectrum Analyzer
Price on request

Delivery in 30+ days
Send inquiry
14 day refund
24 month warranty

OSCOR Green Spectrum Analyzer is a powerful tool for RF detection and analysis with a frequency range of 10 kHz to 24 GHz, sweep speed of 24 GHz/1 second, and built-in software and auto-switching antenna system for total portability.

The OSCOR Green is a high-powered, complete spectrum analyzer designed to detect any unknown, illegal, disruptive, or irregular transmission in a wide frequency range. It can be used in applications such as detecting unwanted covert transmissions from electronic surveillance devices, performing site surveys for communication systems, analyzing RF emissions, and investigating the misuse of the RF spectrum. These capabilities make it a key tool for a wide range of professionals, from security personnel and law enforcement officers to communication engineers and IT professionals.

It operates by performing a comprehensive sweep of the radio frequency (RF) spectrum, covering a range from 10 kHz to 24 GHz in just 1 second. This rapid sweep allows it to quickly identify any transmitting electronic surveillance devices that might be operating in your environment. Once these signals are detected, the device captures and stores them for further analysis, enabling you to identify potential threats and take action.

REI's patented trace analyis for rapid signal detection function provides a complete RF mapping solution. With functions such as Spectrogram, Raster Waterfall, Persistence, Signal List Generation, and more, you can capture, store, analyze and compare all detected signals, even burst/packet & frequency hopping signals which can be harder to pick-up as they transmitt in short bursts.


RF Mapping

Demodulation of audio and video is possible with a built-in suite of demodulators for FM, AM, SSB, subcarrier and video demodulation. These demodulators allow you to monitor audio and video signals directly on the OSCOR Green's screen while continuing regular spectrum updates.

All functions are integrated within the built-in software and auto-switching antenna system, eliminating the need for additional antennas, cables, or laptops, and making the device easy to carry and use in the field. The high-resolution touch screen interface allows easy control as you can pan, zoom, drag, and move accross data, making it easy to navigate the device's features and analyze the detected signals. It can also be operated remotely. Also, thanks to the Ethernet port, you can monitor sweeps-in-progress using 3rd party VNC.

The Data Viewer Software is a PC application that allows OSCOR Green users to open, view, analyze, organize, export, and print saved data files on a PC. It works with a variety of file types, including trace files, signal lists, images, and audio files. It can also analyze OSCOR Green Spectrogram files.

Despite its advanced capabilities, the device is portable and lightweight, weighing less than 4 kg. Its battery power lasts 3-4 hours on one charge, making it suitable for extended use in the field. It also comes with a universal power supply that is compatible for use in a wide range of locations around the world.

The OSCOR Green Spectrum Analyzer comes in a rugged carry case with accessories including:
  • Multi-Purpose Probe: Captures carrier current signals, coax, VLF magnetic loop, infrared, and visible light transmissions
  • Directional Antenna: Helps locate transmitters, can be handheld or clipped to the antenna panel
  • Whip Antenna: Improves low frequency reception, plugs into the extension connector on top of the antenna panel
  • Lithium-ion Rechargeable Battery – 8.7Ah

Learn more about complete REI TSCM equipment available at SpyShopEurope.com


OSCOR Green Main Features:

  • Rapid RF Spectrum Sweep scans 24 GHz in 1 second
  • No need for additional antennas, cables, or laptops with built-in software
  • Auto-switching multi-antenna system
  • Advanced signal analysis with Spectrogram, Raster Waterfall, Persistence, etc.
  • Touch Screen interface allows for easy controls - panning, zooming, dragging, and moving
  • Lightweight and fully portable with minimum setup
  • Quickly identifies localized RF energy transmissions and generates signal lists
  • Audio and video demodulation with built-in demodulators including AM, FM, SSB, subcarrier, and video
  • Remote access with 3rd party virtual network computing software (VNC)
  • Data Viewer software for detailed analysis and reporting of captured data
  • 3-4 hours of battery life on a single charge


OSCOR Green vs. OSCOR Blue:

The main technical difference between OSCOR Green and OSCOR Blue is in the functioning of the Trace Data Recorder and Spectrogram Function. OSCOR Green's Spectrogram function saves intermediate traces at 24.4 kHz resolution every 10 seconds, while OSCOR Blue's Trace Data Recorder saves intermediate traces at 12.2 kHz resolution every 5 seconds. This means that the OSCOR Green captures more detailed data with higher resolution but less frequently, while OSCOR Blue saves less detailed data, but more frequently. The choice between the two models depends on what you need. If your focus is on obtaining more detailed information about the signals and capturing precise data If your requirements involve rapidly changing signals that need to be captured in real-time, the OSCOR Green Spectrum Analyzer is a more suitable option. However, if your requirements involve rapidly changing signals that need to be captured in real-time, the OSCOR Blue Spectrum Analyzer would be a better choice.


OSCOR Green Specifications:

RF SYSTEM
Frequency: 8 GHz Model (OGR-8): 10 kHz - 8 GHz
                 24 GHz Model (OGR-24): 10 kHz - 24 GHz
Sensitivity/Displayed Average Noise Level (DANL) (25 kHz Resolution Band Width)
      Without Preamp = -100 dBm
      With Preamp = -110 dBm
Sweep Speed: 24 GHz/second
Preamp: DC-8 GHz = 10 dB
Attenuation: DC-24 GHz = 0 dB, -10 dB, -20 dB, -30 dB
Dynamic Range:
       Min/Max Range: 90 dB
       SFDR: 80 dB

AUDIO SYSTEM
Demodulation Types: AM, FM
Filter Sizes: 800 kHz, 200 kHz, 12.5 kHz, 6.25 kHz, 2 kHz
Subcarrier Filters: 6.25 kHz, 12.5 kHz, 200 kHz
Headphone Output (low leakage headphones included)
Built-in Speakers

VIDEO SYSTEM
Formats: NTSC, PAL, SECAM
Demodulation: AM, FM
Filter Sizes: 12.75 MHz, 6.375 MHz
Subcarrier Filters: 6.25 kHz, 12.5 kHz, 200 kHz

ANTENNA SYSTEM
Built-in Auto Switching Antenna System:
Frequency: 8 GHz Model (OGR-8) = 10 kHz (useable) to 8 GHz
                 24 GHz Model (OGR-24) = 10 kHz (useable) to 24 GHz

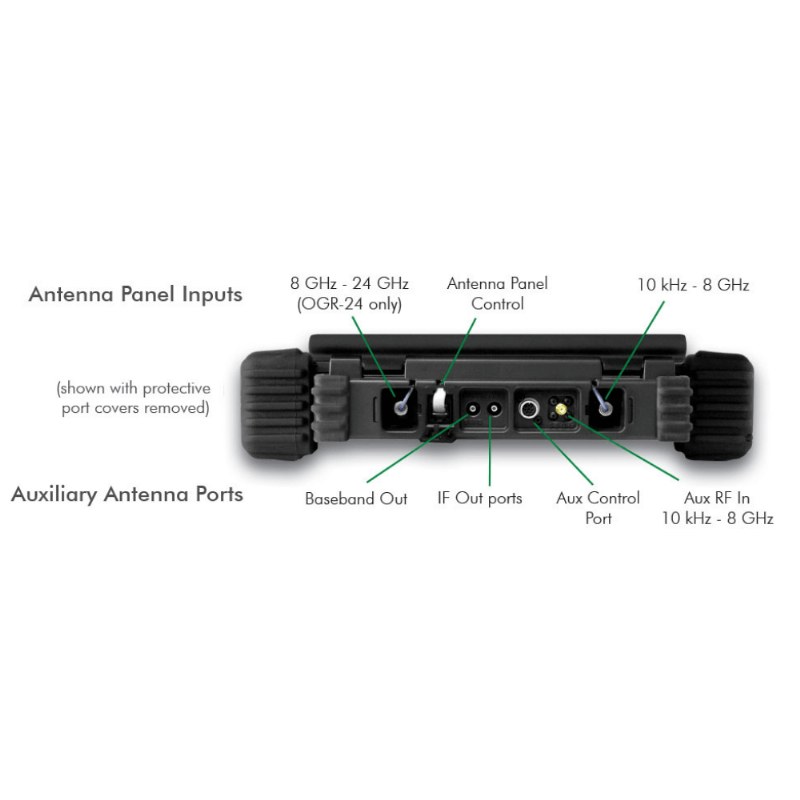

INPUTS/OUTPUTS
Aux RF In: 10 kHz to 8 GHz
IF Out: 25 MHz wide centered at 75 MHz
Baseband Out: DC – 6 MHz
Expansion: Aux Control Port for MPP

REMOTE CAPABILITY
Ethernet Port for VNC remote access

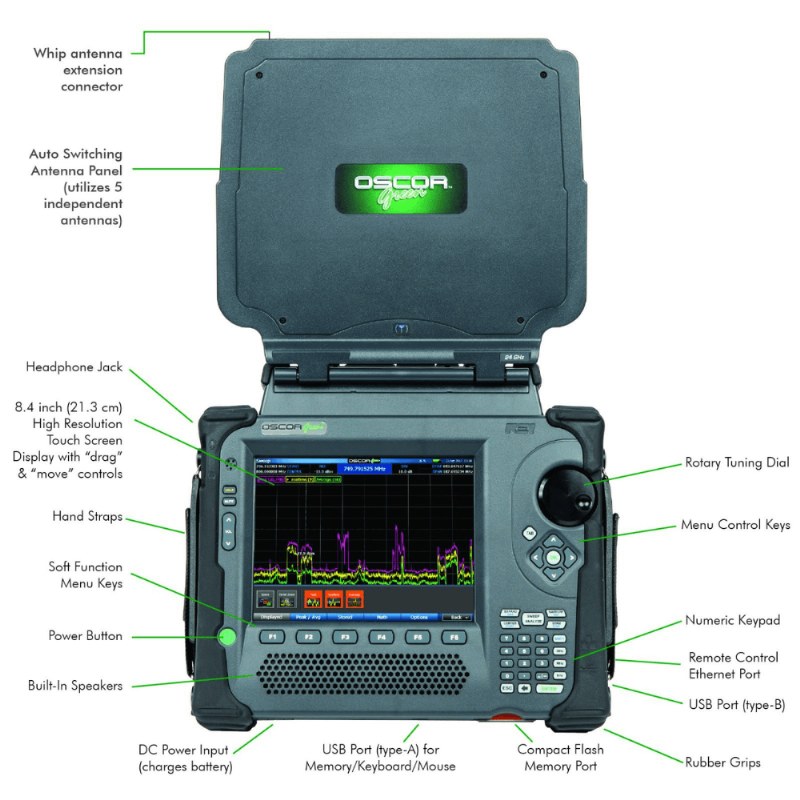

USER INTERFACE
Integrated Touch Screen with 8.4” Display
Soft Keys and Rotary Optical Encoder
USB Ports (A type): for peripherals (keyboard, mouse)

POWER SUPPLY
Universal Power Supply included: 100-240 VAC, 50-60 Hz
Removable Battery: Rechargeable Lithium ion, 4-hour runtime (typical)

EXTERNAL STORAGE CAPABILITY
Compact Flash (CF) Slot
USB-A Port

MECHANICAL
Dimensions: 11.5 in x 13.2 in x 3.0 in (29.2 cm x 33.5 cm x 7.6 cm)
Weight with Battery: 9.6 lbs (4.4 kg)
Case Dimensions: 14.9 in x 19.5 in x 5.5 in (37.8 cm x 49.5 cm x 14 cm)
Loaded Case Weight: 21.0 lbs (9.5 kg)
Operating Temperature: 0° C to +50° C


OSCOR Green Spectrum Analyzer Feature Focus:

1 second sweep of 0-24 GHz frequency range

OSCOR Green Spectrum Analyzer has an incredibly rapid sweep speed of 24 GHz in just one second at 12.2 kHz resolution. This impressive feature allows it to quickly detect any and all transmitting electronic surveillance devices, ensuring that nothing goes undetected, even in busy RF environments. When these signal are detected, OSCOR Green stores them and thanks to a variety of additional analyzing features, allows you to view, study and locate any hidden electronic surveillance device within the area. It detects pulsed, frequency hopping, and spread spectrum signals. OSCOR Green Spectrum Analyzer is also used for site surveys for communications systems and RF emissions analysis, along with security surveys and investigation of hidden surveillance equipment.

Waterfall Function


Efficient and compact with the built-in software & auto-switching antenna system

With the combination of both built-in software and automatic multi-antenna switching system, OSCOR Green is an all-in-one solution that eliminates the need for additional accessories, cables, laptops, or antennas. This simplifes the overall setup and operation, making the OSCOR Green more portable and convenient for professionals who need to perform RF detection and analysis in various locations.

Complete Signal Analysis

The advanced signal analysis and location capabilities of OSCOR Green include patented trace analysis for rapid signal detection, unique spectrogram (trace data recorder), raster waterfall display, persistence display, signal list generation, and more. REI's patented trace analysis scans the area with a sweep speed of 24 GHz per 1 second at 12.2 kHz resolution, quickly providing full trace and signal analysis and helping you identifiy and understand the RF environment. The unique spectrogram (waterfall) displays a visual representation of received traces over time, allowing you to see and track the frequency spectrum in real-time. It also provides a historical view of the signals, enabling you to see how they have changed over time. This can be especially useful in identifying periodic or rapidly changing signals. The raster waterfall display shows short term spectrogram of received signals. Persistence display shows signals in varying colors based on their persistence. The most persisent signals show in brigher colors, while the less persistent signals show in darker colors. This feature helps recognize signals that are possibly hiding or masked by existing area signals. As OSCOR Green quickly identifies localized RF energy transmissions, it generates signal lists with which you can easily analyze the detected signals and identify potential threats. It is also is capable of logging signals from burst/packet and frequency hopping devices, even when the signals are intermittent. The complete and advanced signal analysis capabilities make it OSCOR Green a powerful tool for identifying and understanding the RF environment.

Persistence display

Built-in Demodulators

OSCOR Green system includes built-in demodulators for AM, FM, SSB, subcarrier, and video signals. This allows it to analyze a wide range of signal types, increasing its versatility and usefulness. All demodulated signals will be shown on display. You will be able to see the demodulated video and hear the demodulated audio signal in Analyze mode. While demodulating, OSCOR Green will continue to sweep the spectrum and update any changes.

Compatible with Data Viewer Software

The Data Viewer Software allows you to view, analyze, organize, export, and print saved data on a PC. It enhances the OSCOR Green's functionality by providing a programme for detailed analysis and reporting. With the Dara Viever Software you can analyze Spectrogram files, compare multiple trace files in one graph view, display and export signal lists with detailed infomration, inspect various images, and even play back demodulated audio files.

Remote monitoring of sweeps

Thanks to the ethernet port, OSCOR Green can be accessed remotely using third-party virtual network computing software. This allows you to monitor and analyze signals from a distance, adding an extra layer of convenience and flexibility. Whether you're in the next room or across the country, you can access the OSCOR Green and monitor a sweep in progress.

Fully portable design suitable for long operations

Despite its advanced capabilities, the OSCOR Green is portable and easy to carry, weighing only 4.4 kg/9.6 lbs. As everything you need is included in the one system, you can comfortably carry out detailed RF sweeps and analysis wherever you are, in the field or office settings, without worrying about functionality. It is powered by a rechargeable lithium-ion battery which runs approximately 4 hours on a single charge and has a universal power supply, making it suitable for long operations and extended periods in the field, without interruptions.

Integrated Touch Screen

The OSCOR Green features a high-resolution 8.4” touch screen display with pan, zoom, drag, and move controls. These controls make it easy to interact with the device and analyze the detected signals. The display is user-friendly and provides easy navigation through all the device's features and settings. The touch screen also displays a visual representation of the RF environment, helping you identify and analyze signals.


How to use the OSCOR Green Spectrum Analyzer:


OSCOR Green Spectrum Analyzer FAQs

Can the OSCOR Green demodulate audio and video signals?
Yes, the OSCOR Green includes built-in demodulators for FM, AM, SSB, subcarrier, and video signals. This capability allows users to directly monitor audio and video signals on the device’s screen while continuing to update the spectrum sweep. It enhances the analyzer’s versatility, making it useful for a wider range of signal analysis tasks.

Does the OSCOR Green require additional antennas or equipment for operation?
No, the OSCOR Green does not require additional antennas, cables, or laptops due to its built-in software and auto-switching antenna system. This integration simplifies setup and enhances portability, allowing users to conduct RF detection and analysis in various locations without the need for extra equipment. The all-in-one design makes it a convenient tool for field operations.

How does the OSCOR Green help in locating transmitters?
The OSCOR Green includes a Directional Antenna accessory that helps in locating transmitters. This antenna can be handheld or clipped to the antenna panel, enhancing the device’s ability to pinpoint the source of transmissions. The ability to locate transmitters is crucial in surveillance detection and RF spectrum management tasks.

How fast can the OSCOR Green sweep the RF spectrum?
The OSCOR Green can sweep the RF spectrum at a speed of 24 GHz per second. This rapid sweep speed allows for quick identification of transmitting devices and signals, making it highly effective in environments where speed is critical for detecting unauthorized transmissions. The device’s efficiency in scanning the RF spectrum helps users to quickly assess and respond to potential threats.

Is remote access possible with the OSCOR Green Spectrum Analyzer?
Yes, the OSCOR Green can be accessed remotely using third-party virtual network computing (VNC) software thanks to its Ethernet port. This feature adds convenience and flexibility, enabling users to monitor sweeps and analyze signals from a distance, whether they are in a different room or a different location altogether. Remote access ensures continuous monitoring without needing physical presence.

What advanced signal analysis features does the OSCOR Green offer?
The OSCOR Green offers advanced signal analysis features such as Spectrogram, Raster Waterfall, Persistence, and Signal List Generation. These features enable comprehensive RF mapping and analysis, including the detection of burst/packet and frequency hopping signals. The device’s advanced analysis capabilities assist in identifying and understanding complex RF environments.

What is the battery life of the OSCOR Green?
The OSCOR Green has a battery life of approximately 3-4 hours on a single charge. This duration supports extended use in the field, making it suitable for operations where access to power may be limited. The device also comes with a universal power supply, ensuring it can be charged in a wide range of locations around the world.

What is the frequency range of the OSCOR Green Spectrum Analyzer?
The OSCOR Green Spectrum Analyzer covers a frequency range from 10 kHz to 24 GHz. This wide range allows it to detect a broad spectrum of RF signals, making it suitable for a variety of applications including surveillance detection and RF spectrum analysis. Its ability to sweep this range in just 1 second ensures rapid detection of signals.

What makes the OSCOR Green portable and suitable for field operations?
The OSCOR Green is lightweight, weighing less than 4 kg, and comes in a rugged carry case with accessories, making it highly portable and suitable for field operations. Its integrated design, which includes a built-in software and auto-switching antenna system, eliminates the need for additional equipment, further enhancing its portability and ease of use in various operational settings.

What software compatibility does the OSCOR Green have for data analysis?
The OSCOR Green is compatible with Data Viewer Software, a PC application that allows users to open, view, analyze, organize, export, and print saved data files. This software supports a variety of file types, including trace files, signal lists, images, and audio files, enhancing the device’s data analysis capabilities.

Note:

For more detailed specifications, please carefully study the PDFs available for download below.


24 Months Warranty


OSCOR Green User Manual
>>Download detailed specifications (PDF)<<
