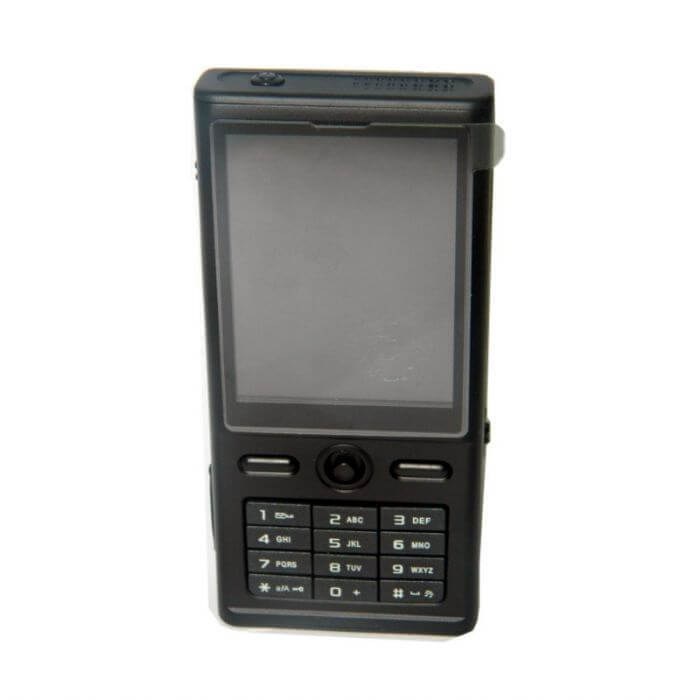

LawMate PV-900 HD is a mini digital audio/video recorder with a built-in hidden camera.
This product is end of line and no longer available. If you are looking for a product with the same or similar specifications, please see related products at the end of the page or contact us directly at [email protected]
The new PV-900 EVO3
is now available as the next-generation covert Smartphone DVR!
The outer design perfectly conceals its actual use. Recording tasks can also be performed when the cell-phone seems turned off or in standby mode. The concealed menu can only be called out by pushing a series of combination keys while recording can be started by a simple click on the side
The new HD version includes a Pre-event recording option, 1280*960 resolution, adjustable FPS, and a low lux camera.
Comes with an integrated microphone & audio recording (all LM DVRs that can be bought in our store record audio).
Lawmate Cellphone DVR supports multiple recording modes - Manual/Auto/Motion Detect/Schedule/Pre-Event for use in different scenarios and environments. When connected to the CM-EP10 earphone CMOS camera or other compatible Lawmate it acts as a DVR.
PV-900HD Main Features:
- One-click on the side button starts the recording
- Multiple recording modes - Auto/Manual/Motion and Detection/Pre-event/Schedule
- Can work in low light conditions
- Snap-shot function available
- The SD card support and USB cable connection make it easy to manage your files
- It is compatible with Lawmate equipment and can act as a digital video recorder when combined
- The screen has a disguise function in order for it to seem as if it is off while recording.
PV-900 HD Full Specifications:
Recording Capability:640 * 480 @ 60fps,max res. up to 1280X960, 1-30 adjustable FPS.
Angle of View: 78 Degrees
CCD Resolution: 1200 * 800
CCD Sensitivity: 0.2 Lux F2.0
Display: 2.4 TFT LCD
Memory Type: Micro SD Card (Supports SDHC up to 32GB)
Battery Lifetime:150 Minutes continuous recording
Dimension: 110 * 54 * 23 mm
Weight: 90 g
PV-900 HD modes of outside covert look:
1. Normal Screen when Recording 2. Disguise Screen off 3. Power on Disguise Display

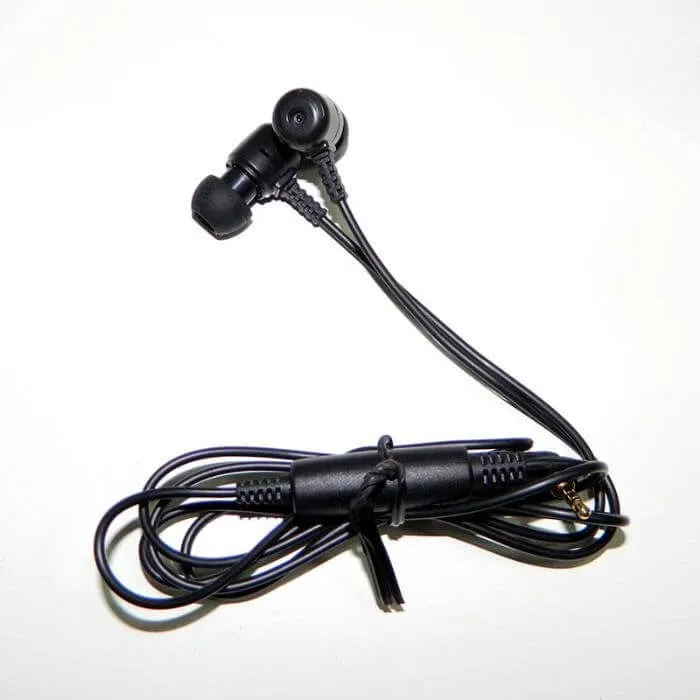

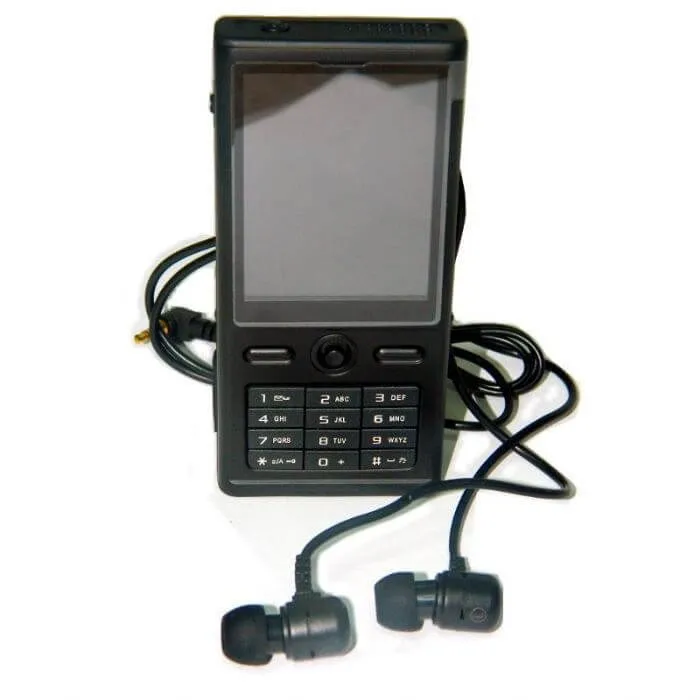

The LawMate CM-EP10 Earphone Type CCD Camera is the perfect covert device for the 21. century user.
It is quite common for people to listen to music on their mp3s, iPods, or smartphones so a CM-EP10 covert camera easily fits in the environment.
It's compatible with various Lawmate DVR's, but the Lawmate PV-900HD Cellphone DVR camera is the perfect fit.
CM-EP10 Product Specifications:
Item Number: CM-EP10
Video System: NTSC & PAL
Picture Element: 640 x 480
Resolution (H): 480 TV Lines
Image Sensor: CMOS 1/4 inch
S/N Ratio: 50 dB
MIN Illumination: 3 Lux / 30 IRE @ F2.0
Video Output: 1.0V p-p Composite at 75 ohm
Audio Output: 2Vp-p(MAX) 10KHz ohms Impedance
MIC Sensitivity: Yes
Lens: 3.59 mm
Angle of View: 66.5 Degrees
Power Supply Voltage: DC 5V
Power Supply Current: 130 mA
Operation Tempareture: -10~50
Storage Temperature: -10~50
Dimensions (Incld Lens): 23(W)x26(H)x18(T) mm
Weight: 25 g
CM-EP10 Product Features:
- Combined with a digital picture resolution of 640*480 this min spy camera lets you get clear images in high quality
- It is compatible with a wide range of devices due to its power and cable accessories
- It is able to work with any regular AV device as it comes with standard Audio & Video output protocol
CM-EP10 How To Wear Illustration (from the quick manual):
How to use CM-EP10?
- Connect the earphones to the PV-900 HD DVR
- Turn on the DVR
- Make sure that the plugs are placed so the wire does not fall vertically from your ears
- Keep in mind that the position of the camera will be from your ears outwards
- Start recording
The Lawmate CM-EP10 Earphone Type CCD Camera is compatible with Lawmate's DVRs that accept analog cameras.
For further details regarding the operation of Lawmate PV-900HD Cellphone DVR & CM-EP10 Earphone Type CCD Camera KIT please consult the quick guide below.
24 months warranty.
>>Download detailed specifications (PDF)<<
