LawMate CM-BU18 button camera is a 480 TV line button camera, with 0.3 lux min. illumination. It is an analog camera that has a built-in external microphone.
CM-BU18 Main Features:
- Built-in Interchangeable NTSC/PAL switch
- Built-in Microphone
- Compatible with wire controller and remote controller
- Miniature size
- Button design for covert purposes
- Standard analog in jack
Compatible with:
- PV-500ECO2
- PV-500EVO2
- PV-500EVO2U
- PV-500L4i
- PV-500L3
- PV-1000 Lite
- PV-1000 Touch5
- PV-1000 Touch5U
CM-BU18 Full Specifications:
Video System: NTSC & PAL
Number of effective pixels: NTSC: 720H * 480V; PAL: 720H * 576V
Image sensor: 1/4 inch CMOS
Resolution: 480 TV Line
Min illumination: 0.3 Lux @ F2.0
Focal length: 4,3 mm
Lens angle: 78°
Sensitivity: >11.5v/lux-s at 550nm
S/N Ratio: >45 dB
Pixel size: 5.6μm x 5.6μm
Video output: 1.0V p-p 75
Camera current consumption: 0.5W
Operating temperature: -10°C to +60°C
Storage temperature: -10°C to +60°C
Power supply: DC 5V
Dimensions including lens: 21*21*11
Weight: 20 g
Notes

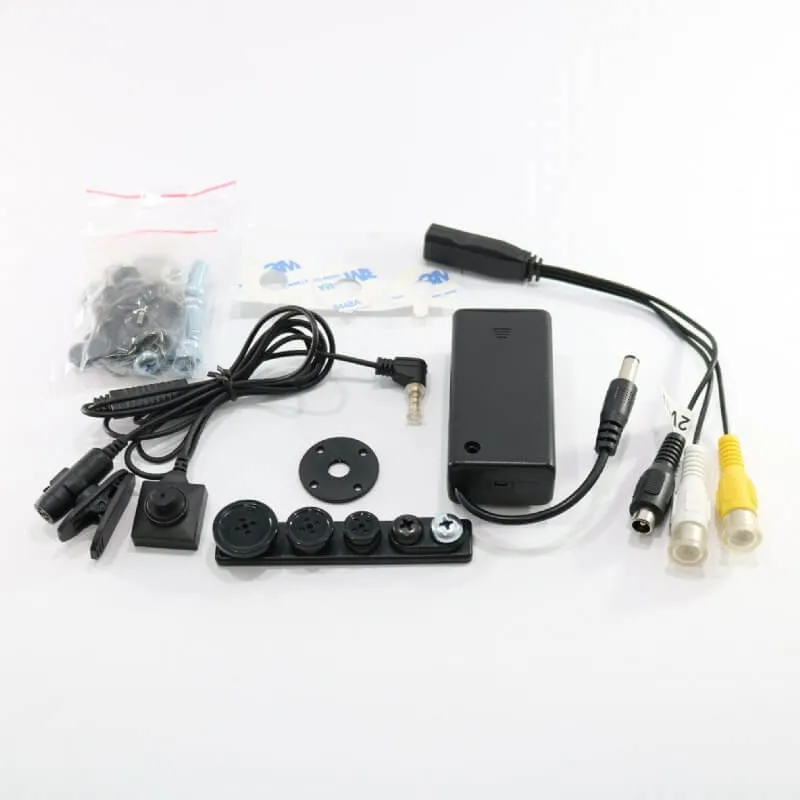

The standard set comes with two packs of buttons and different size screw-heads that can be applied on camera for covert purposes. Compatible with PV series surveillance DVRs (check above). Powered by DVR.
24 months warranty.
>>BU-18 Quick guide (PDF)<<
>>Download detailed specifications (PDF)<<
