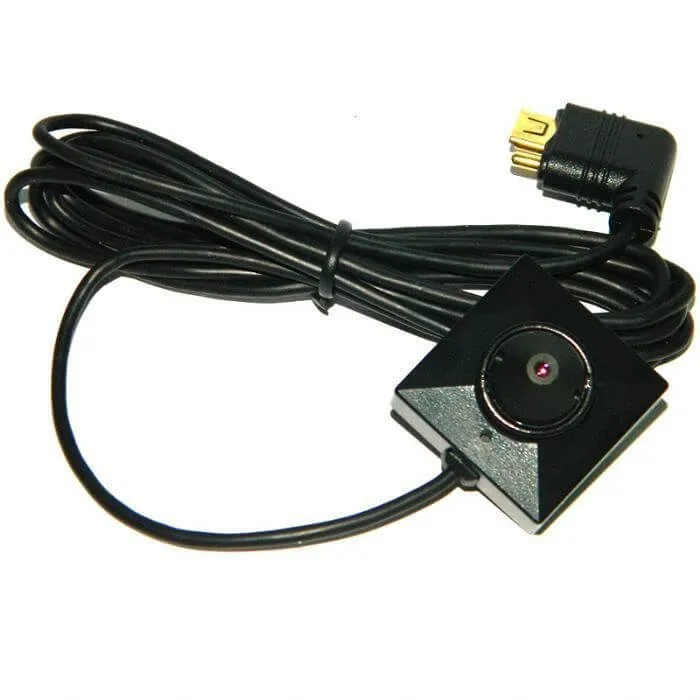

The LawMate BU-18 HD Cone is a 1080P digital camera that offers clear Full HD video recordings and good low light sensitivity.
This product is end of line and no longer available. If you are looking for a product with the same or similar specifications, please see related products at the end of the page or contact us directly at [email protected]
If you need a pinhole camera, but not a button camera, then this is the right one.
The New Cone shape for the camera as well as the integrated microphone offers additional convenience with the installation.
Specifically designed for PV-500HDW Wi-Fi DVR
. Not compatible with previous Lawmate DVR models.
>>click on image to enlarge<<
BU-18 HD Main features:
- High quality 2000 X 1121 Sensor resolution1080P digital resolution (sent to DVR)
- Good low light sensitivity
- Small size, easier to fit
- New!! 145 cm one-piece cable
- New!! Cone lens cover part
- New!! Coveret mic. inside camera case
Full BU-18HD Specifications:
Built in Image Sensor 1/2.9" progressive CMOS Sensor
Sensor Resolution 2000x1121
Pixel Size 2.8um(H) * 2.8um(V)
Digital Picture Resolution (H)1920x(V)1080
Sensor Sensitivity 0.03 Lux @ F 2.0
Lens F/No. F2.0
Focal Length 4.6mm
Angle of view 78°
Depth of View 50 cm ~ ∞
Electronic Shutter 1/8 ~ 1/30,000
Video Output I2C Data
Power Supply Current 220mA
Operating Temperature -10℃ ~ 60℃
Operating Humidity 20 ~ 90%
Storage Temperature -30℃ ~ 80℃
Power Input DC 3.3V± 5%
BU-18HD feature focus:
The BU-18HD Button camera has a Focal Length of 4.3mm and the BU-18HD Cone camera has a Focal Length of 4.6mm - making the first camera a bit better at close-ups, and the second slightly better focused on distances.
The BU-18HD Cone specifications are the same as the BU-18HD Button camera specifications. Feel free to consult the BU-18HD Button PDF specs below.
Also, the BU-18HD Cone camera comes WITHOUT the button set, as it is a different type of camera. The accessories mentioned in the PDF below refer to the BU-18HD Button camera.
24 months warranty
>>Download detailed specifications (PDF)<<
