The JJN digital EDD-24T Hand-held Electronic Device Detector is a Non-Linear Junction Detector (NLJD) that detects all types of electronic equipment, no matter if active, passive, or powered off.
The EDD-24T detects contemporary electronic devices like mobile phones, tracking devices, listening devices, covert cameras, digital voice recorders, Nano/ SIM cards, etc. It will detect them in all working mode scenarios: powered on, powered off (and without any power), in standby mode, and in use.
How it works; semiconductors in the current electronic products are made using silicone. Silicon responds with a strong second harmonic frequency when high-frequency radio signals are transmitted directly over it. In contrast, bi-metals and oxidized metals respond with a third harmonic signal. The NLJD transmits a focused directional signal on 2.4 GHz (ISMBand Type B), and receives on 4.8GHz (Second Harmonic) and 7.2GHz (Third Harmonic).
This means, that when a high-frequency radio signal hits even the smallest amount of silicone, like the ones found in mobile phone parts, SIM cars, and so on, the high sensitivity receiver will respond to it (with a strong 2nd Harmonic frequency) and thus detect it. The same goes for the 3rd Harmonic receiver that responds to metals and bi-metals and can serve as a good confirmation source for signals that are at first ambiguous.
This EDD-24T NLJD is user-friendly which allows a wide range of people to use it; from beginners to professionals. It uses an intelligent algorithm to analyze the detected signals (2nd and 3rd Harmonic) and evaluates the material probability (Silicone or Metal). It has receivers equally powerful and sensitive when compared to much larger portable units on the market.
It is compact, enclosed in machined Aluminium, and has a battery life of up to 4,5 hours. The Audible Tone and Demodulation Function is available via the speaker or the provided earphones.
The NLJD is delivered in a Military Standard carrying case.
It is made in England (designed, manufactured, and tested), while abiding by high technical standards.

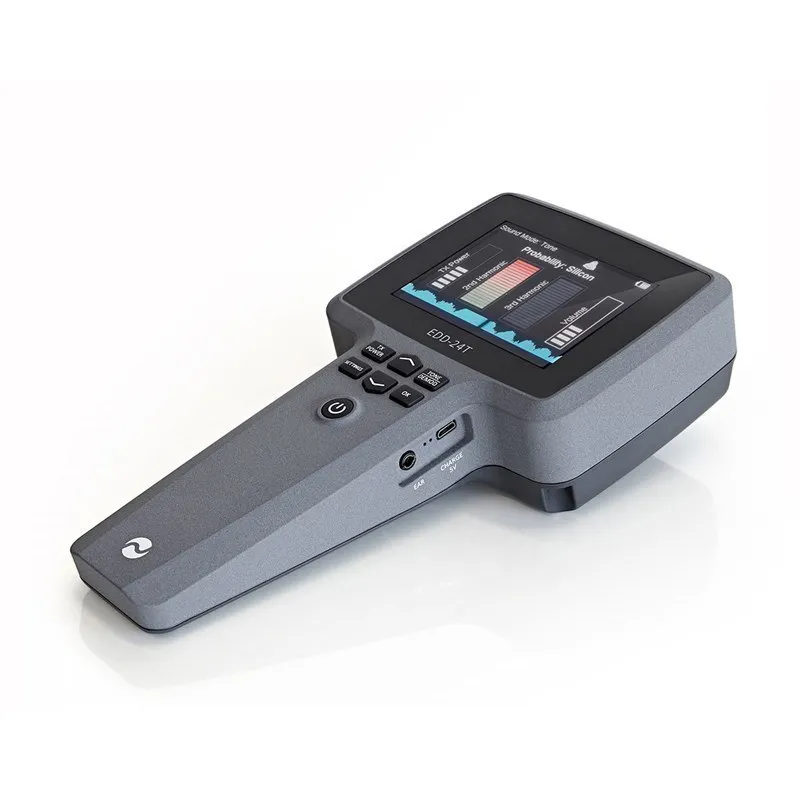

EDD-24T Indicator of detected materials: Silicone or Metal. Picture from Video below.
JJN digital EDD-24T NLJD Main Features:
- Detects active, passive, and powered-off electronics
- Simple operation with a user-friendly interface
- Has an indicator for detected materials: Silicon or Metal
- Detects the newest NANO SIM cards from up to 20cm
- 2.4 GHz Transmit with up to 4 Watts
- 2nd Harmonic (4.8 GHz) and 3rd Harmonic (7.2 GHz) Receivers
- Equally powerful and sensitive, when compared to much larger portable units on the market
- Audible Tone and Demodulation Function available via the speaker or earphones
- Battery life up to 4.5 hours
- Premium quality device in a machined Aluminium enclosure
- Comes in a Military Standard carry Case

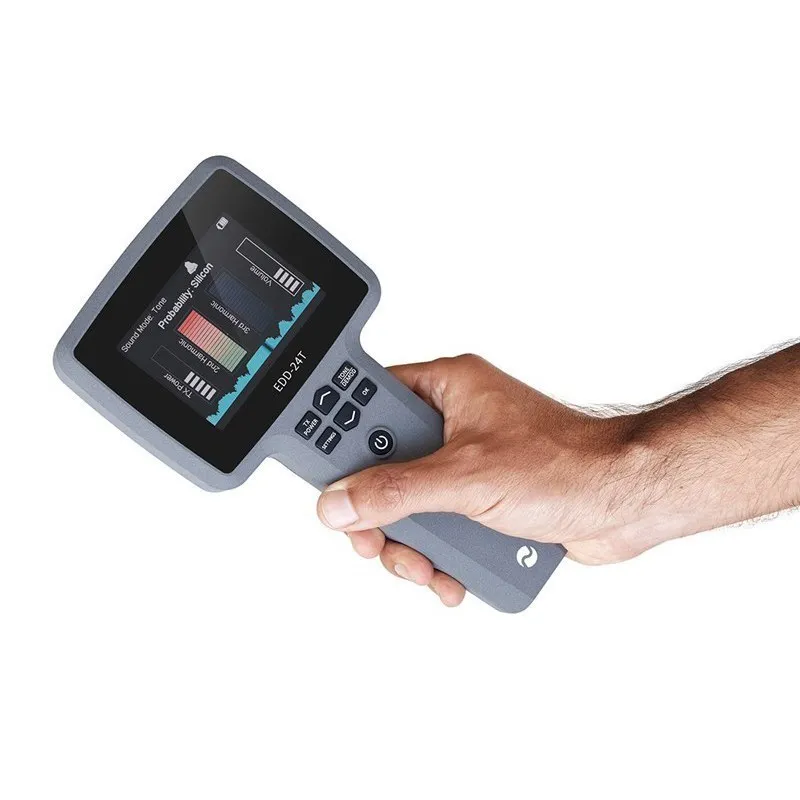

EDD-24T Simple button operation
JJN digital EDD-24T NLJD Full Specifications:Transmit Frequency: 2.400 GHZ to 2.425 GHz (ISM Band Type B)
Transmit Power Level: up to +30dBm (1 Watt)
Radiated Power Antenna: up to +36dBm (4 Watts) within allowable limits of ISM band (Type B)
Display: 3.5 inch Colour TFT Daylight Readable
Receiver Sensitivity: better than -120dBm on 2nd and 3rd harmonics
Receiver Bandwidth: Approx 10KHz
Battery: 3.7V Lithium Polymer Internal rechargeable
Battery Life: 4.5 Hours (Minimum TX Power) 2.0 Hours (Maximum TX Power)
DC Charge: Micro USB Socket 5V 1A
Charger: Input 110/220V Auto-switching - International Adaptors Output 5V DC 2A

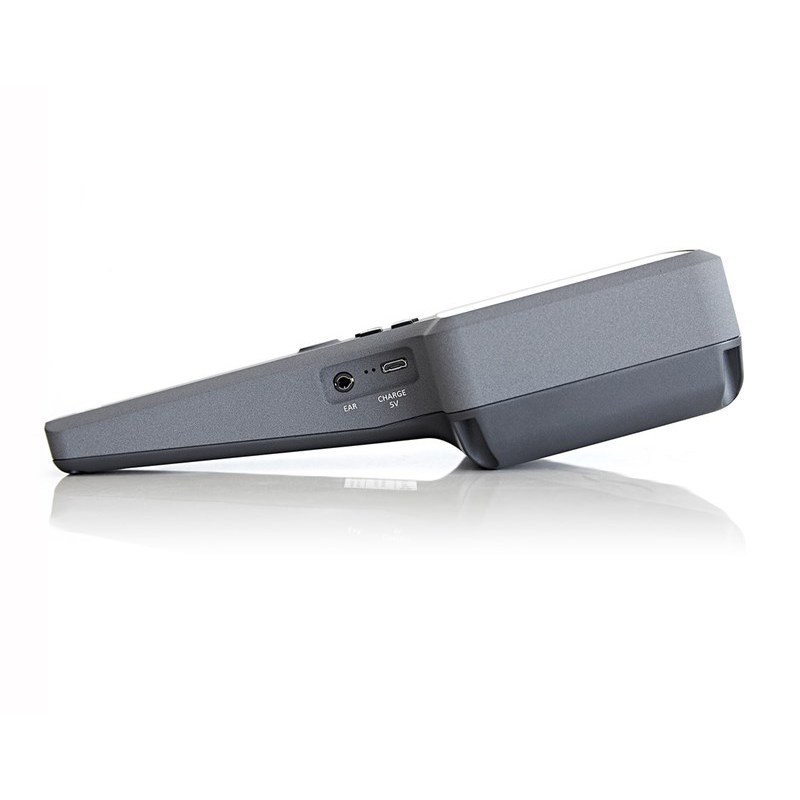

Audio: Internal Loudspeaker or via 3.5mm Earphone Socket
Operating Temperature: 0 to 40 degrees C

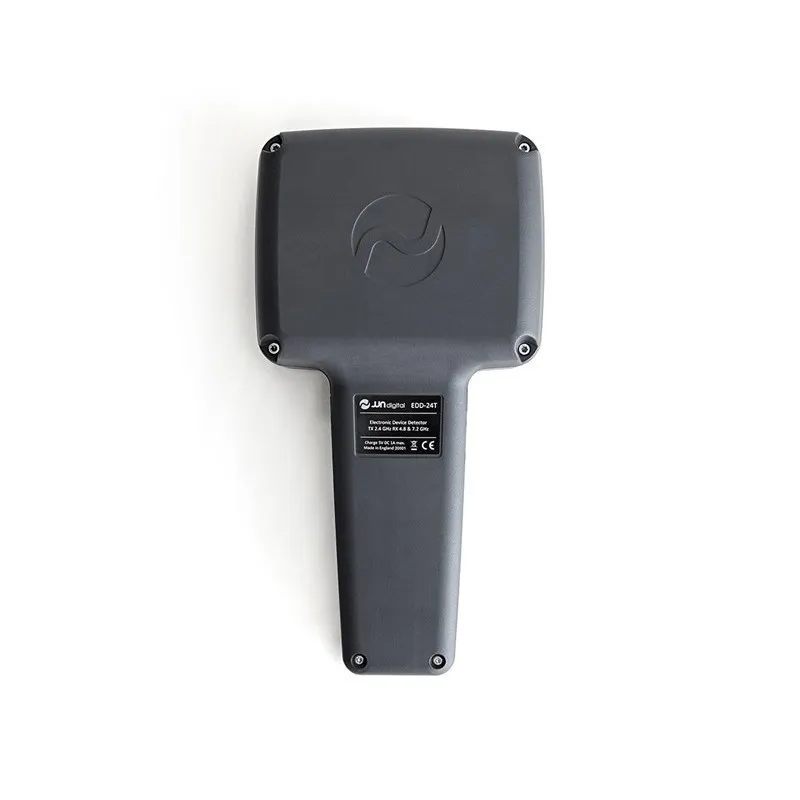

Enclosure: Machined Aluminium Enclosure with Plastic Antenna Cover
Weight of the Main Unit: 700g
Weight with carrying Case: 2.0kg
Dimensions: Main Unit Height 225mm * Width 118mm * Depth 51mm
Carry Case: Military Standard 321mm * 229mm * 111mm
Certificate: CE Certificate
Country of Origin: Made in England
- Make sure the device is charged
- Power on the device and go to the "Settings" to choose your desired parameters
- Start the scan
- EDD-24T Handheld NLJD Electronic Device Detector
- A 110V to 240V AC input charger with auto-switching, and with international adaptors output 5V DC 2A
- Compact Military Standard Carry Case
