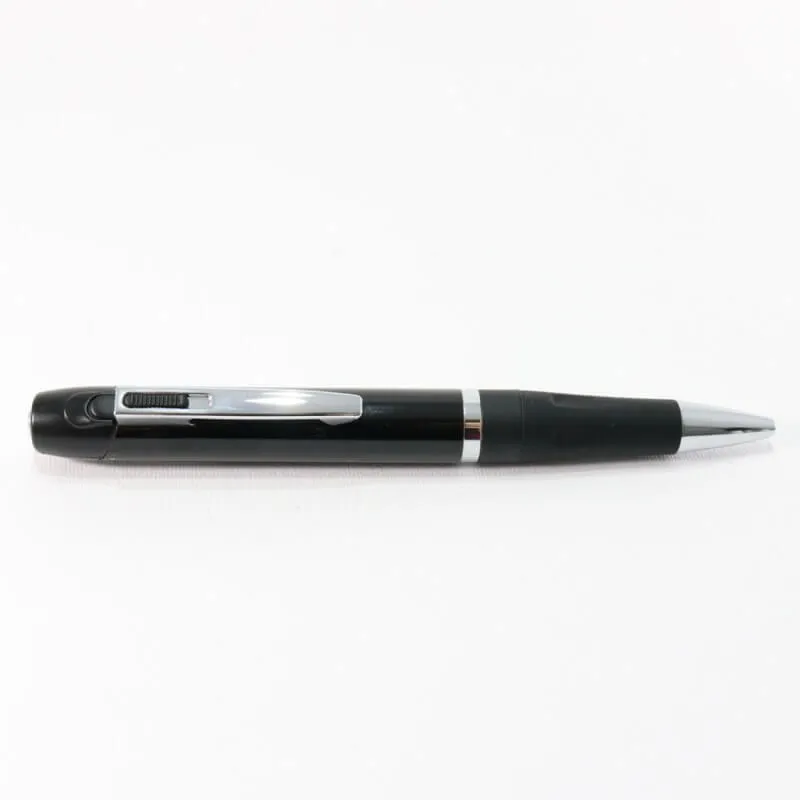

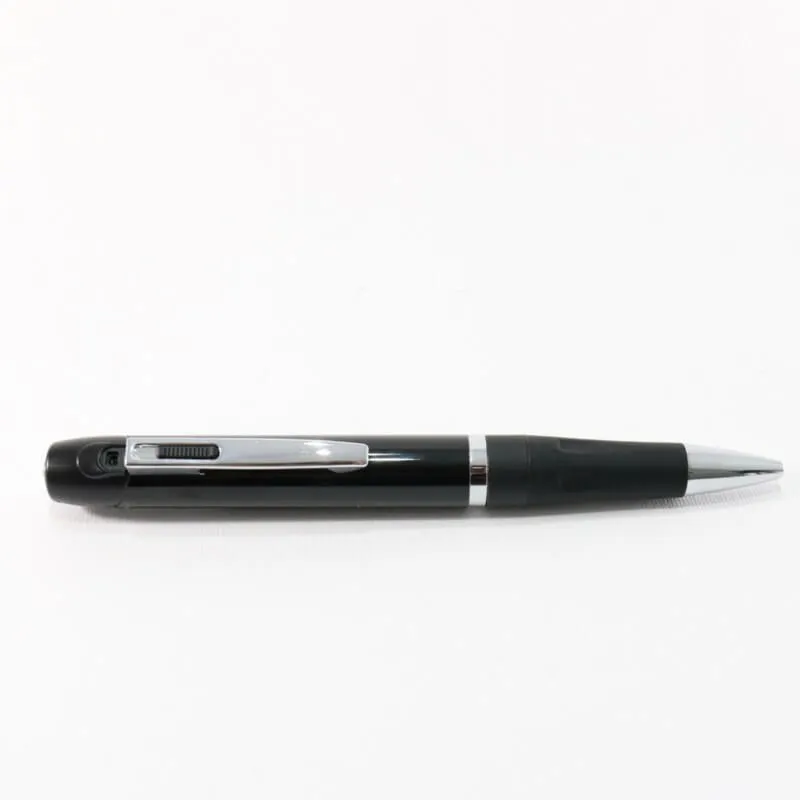

The BTech Pen is a 2000P covert DVR and you can use it as a real Pen!
The Pen DVR offers 2000P & 1080P @30 fps and 720P (30 / 60 fps) resolution options and makes great footage in low-light circumstances. It is easy to use, and a couple of very important things have been taken into consideration when designing this covert DVR.

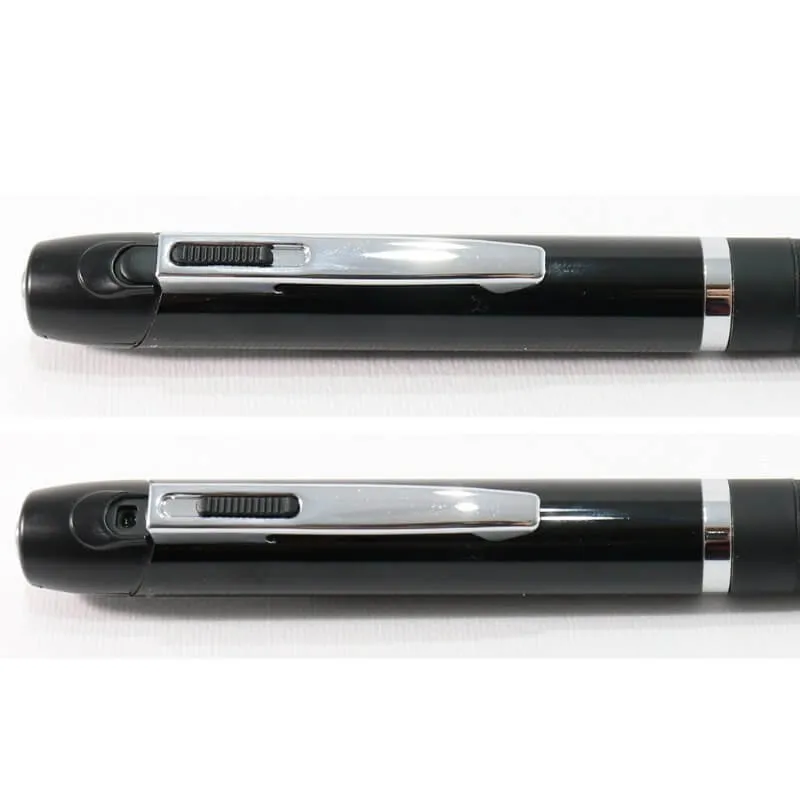

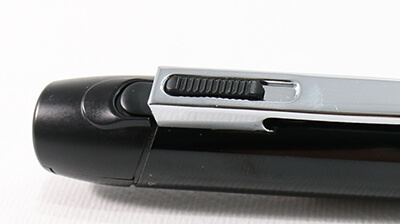

The lens can be hidden, with a simple slide of the lens cover.
When you power on the DVR the blue led will be visible, once you press the power-on button again, the green led will blink, and that is it - when the DVR starts to record, the LED lights are no longer visible.
The device will automatically power off when; the battery power is low, the memory is full, and if there is no operation over one minute in standby mode.
The device allows for continuous and motion detection recording as well as taking pictures.

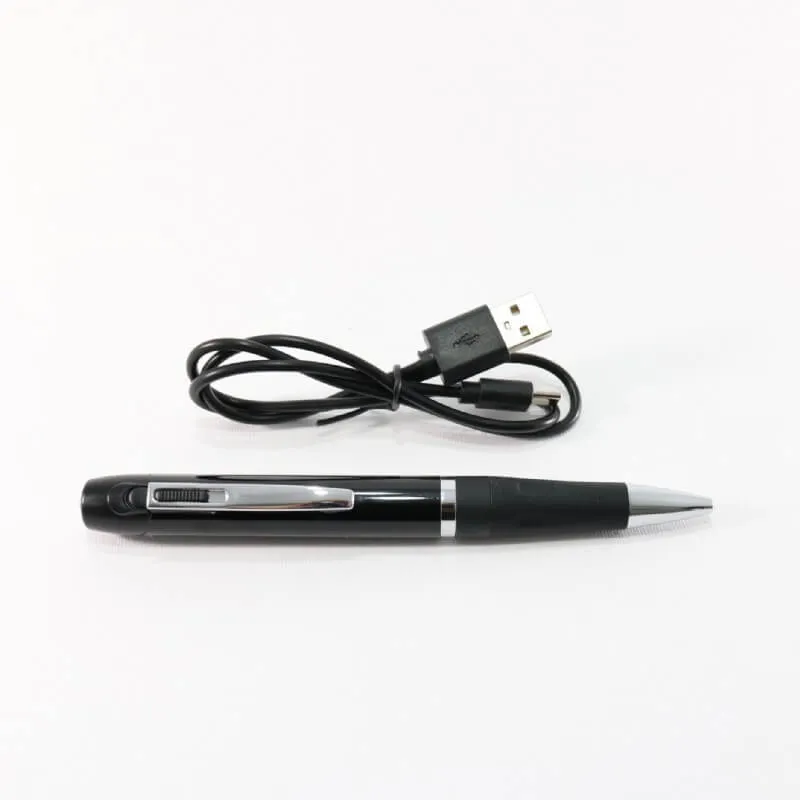

The built-in battery can be charged by connecting the DVR to the provided USB cable, connecting it directly to a PC, or by plugging it in a DC 5V adapter. The same USB cable enables you to access the settings of the DVR when you connect it to your PC. From there you can access the resolution, FPS, time-stamp, optical source frequency, and color settings.
For best results when reviewing your A/V files, use VLC or KM Player.
Pen DVR Main Features:
2000p/1080p/720p Resolution option
Writes like a real pen - in black ink
Continuous and Motion Detection recording modes
Date and Timestamp option
Covert DVR - Lens can be hidden
Pen DVR Full Specifications:
Sensor：1/3.2” CMOS Color at 3M Angel of View：65 Degrees Date/Time Stamp: Available Video Format：MOV

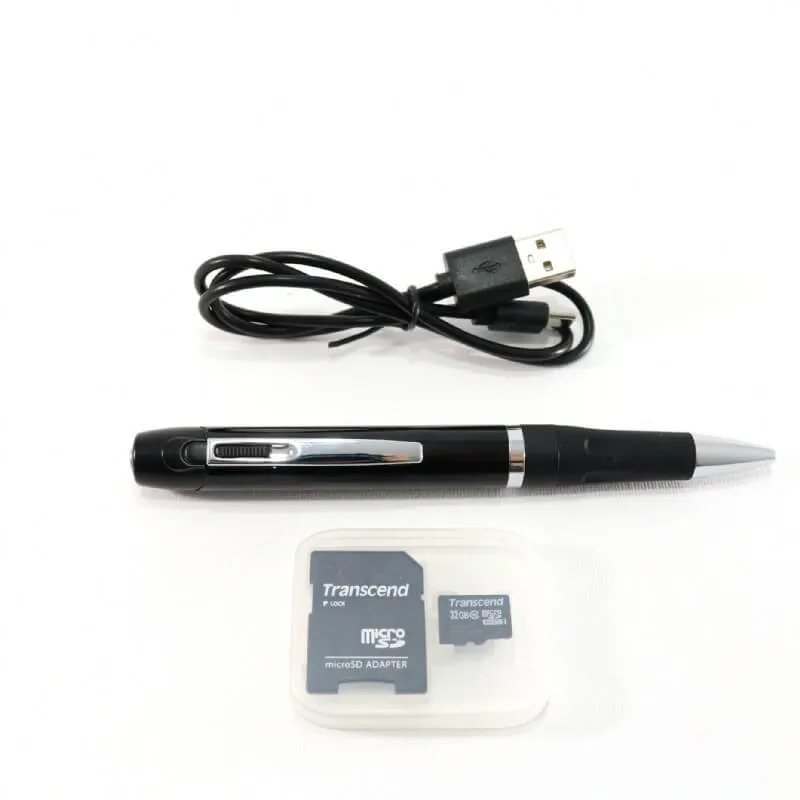

Resolution: 2000p/1080p/720p Frame Rate: 2000p/[email protected]; [email protected] Memory: 32 GB SD Card included. Supports SD cards up to 128 GB. Power：Lion Battery Pack 380 mAh/3.7V Charge: 5V USB Power Life Time: 1 Hour
Dimensions: Φ14.5 mm × 155 mm Weight: 50 g
>>Picture from User Manual - Pen DVR setup<<
How to use the Pen DVR:
Insert the SD card and check if the lens is uncovered. The SD card will be formatted in its initial use.
Press the power on/of a button once, and the blue LED will blink. Press it once again and the green LED will blink. Now the device is recording, and the LED will power off.
To power off the DVR press and hold the power on/off button for a few seconds.
To enter the motion detection mode, put the device in standby mode and press the power on/off button quickly 3 times.
To enter the snapshot mode, place the device in standby mode, and double click the power on/off button.
For more information on the specifications and setup of the device, please see the PDF files available for download below. More on motion detection, standby mode, and snapshots can be seen in the user manual.
To access the setup panel of the DVR, you need to install the setup.exe onto your SD card. The file will be available soon for download below. In the meantime, we will pre-install the software on all ordered items.
Disclaimer: Items on the website are not be used for the purpose of illegal surveillance of unsuspecting subjects. The items are to be used only in compliance with all the local laws and regulations under the threat of penalty.
