Wireless Transmitter Kit with PV-1000 AHD DVR and BU-18AHD Camera

The Wireless Transmitter Kit with PV-1000 AHD and BU-18AHD is a fully equipped professional surveillance setup putting together the AHD-TR10 digital wireless transmitter system with the PV-1000 AHD Slim Wi-Fi Digital Video Recorder and BU-18AHD Button Camera. This kit allows you to record, transmit and monitor high-resolution AHD video in environments where cables or internet connections are impractical or unavailable.



BU-18AHD Button Camera provides recording of full HD 1080P resolution, while The AHD-TR10 enables reliable wireless transmission, allowing the PV-1000 AHD to view the recording live, control recordings and save footage for later review.



This Wireless Transmitter Kit with DVR and camera features a simple setup and mobile use supported by the AHD-TR10’s integrated battery. Together, these components present a reliable and portable surveillance system appropriate for professional purposes.

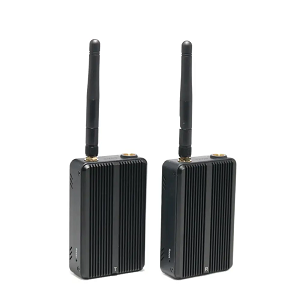

The AHD-TR10 Wireless Transmitter Kit is a wireless receiver and transmitter system built for high-definition AHD video transmission. It supports stable wireless communication over open distances of up to 620 meters, providing a secure and reliable link between BU-18AHD Button Camera and PV-1000 AHD Digital Video Recorder. The AHD-TR10 delivers real-time video with full 1080P resolution, even across long ranges. This ensures near-instant video display on the PV-1000 AHD with minimal latency.

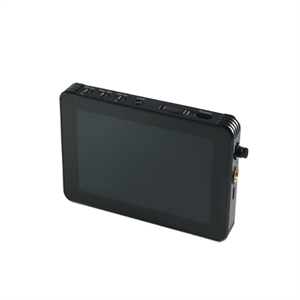

 PV-1000 AHD Slim Wi-Fi DVR is a digital video recorder with built in Wi-Fi, digital and analog camera compatibility, and support for SD cards up to 512GB. It allows remote live viewing and recording control via smartphone when connected to the same Wi-Fi network. The PV-1000AHD offers multiple recording modes, which include: Standard, Motion Detection, Pre-Event, and Pre-Motion video recording modes.

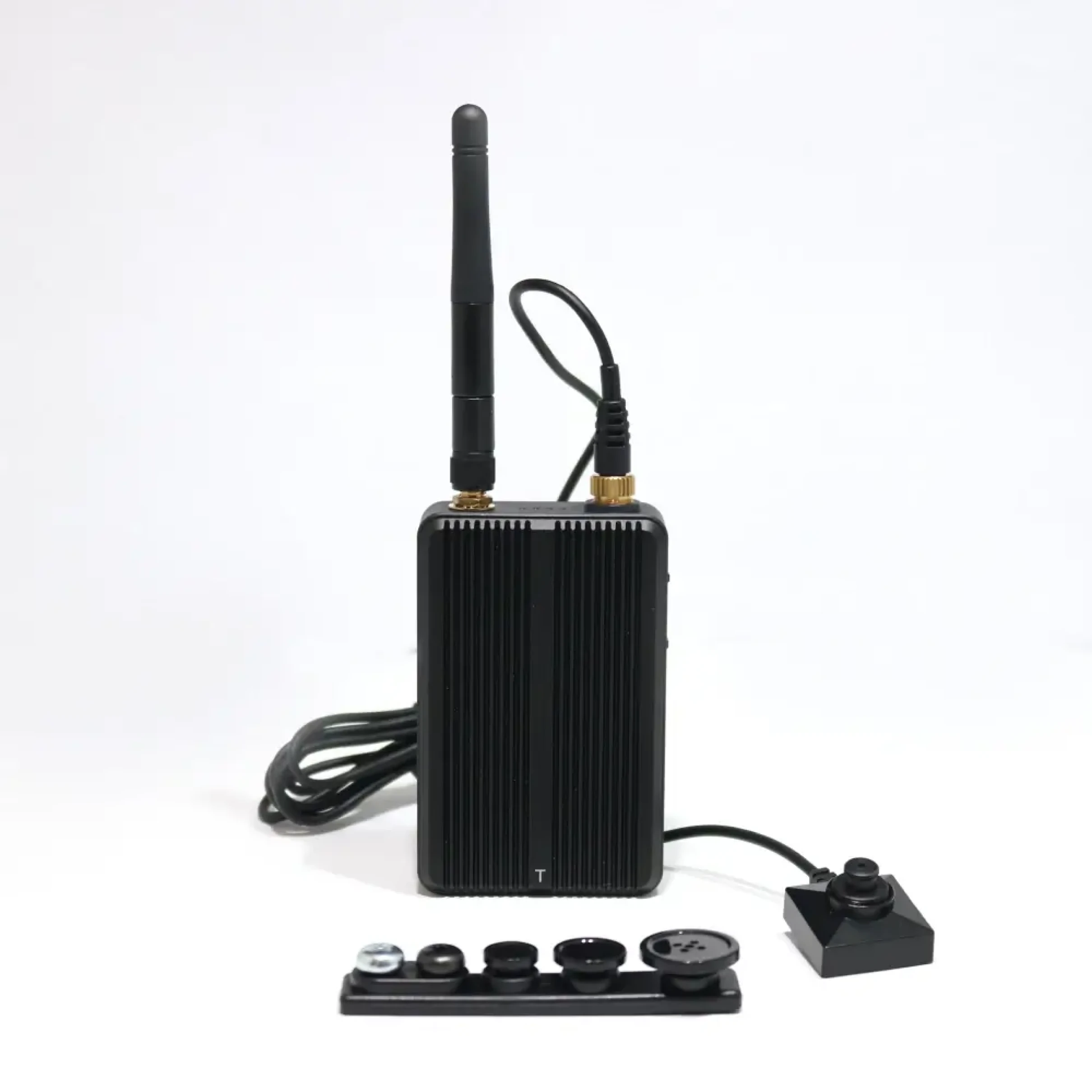

BU-18AHD Button Camera is a full HD resolution (1080p) AHD camera with integrated microphone. Small, lightweight, and with flexible cables it allows you to hide the camera seamlessly in clothing or everyday objects.



Firstly, ensure that your AHD-TR10 is charged. Then, you can begin with installing the antenna onto both Q-AHD-TX10 (transmitter) and Q-AHD-RX10 (receiver). This allows the transmitter to efficiently start transmitting the signal and to then pick up that signal at the receiver.



Turn on both devices and press "pair" button. The vibration will indicate a successful pairing of the transmitter and receiver. This allows the system to send high‑resolution AHD video wirelessly over long distances (620 meters) without cables, while maintaining a stable, low‑latency connection.

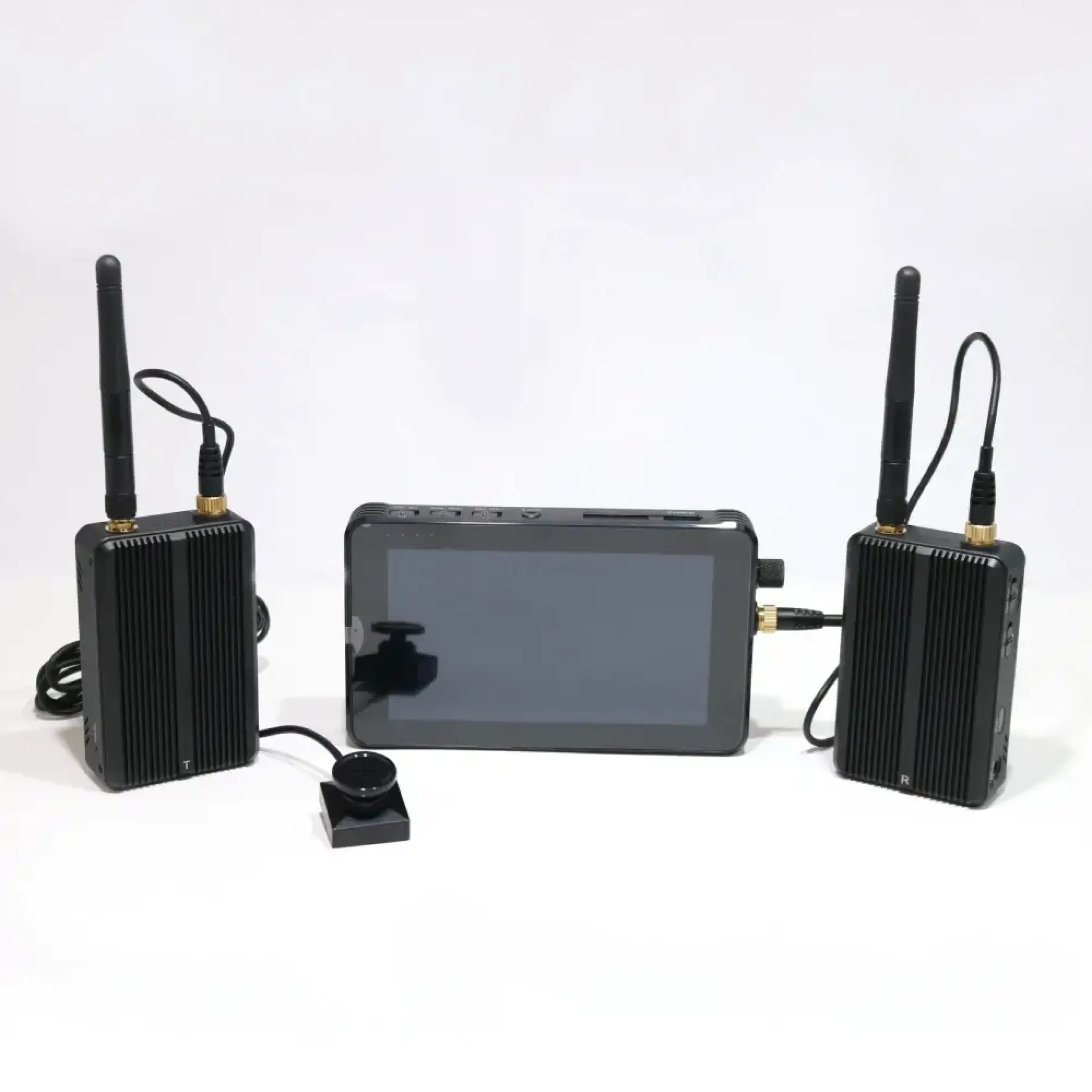

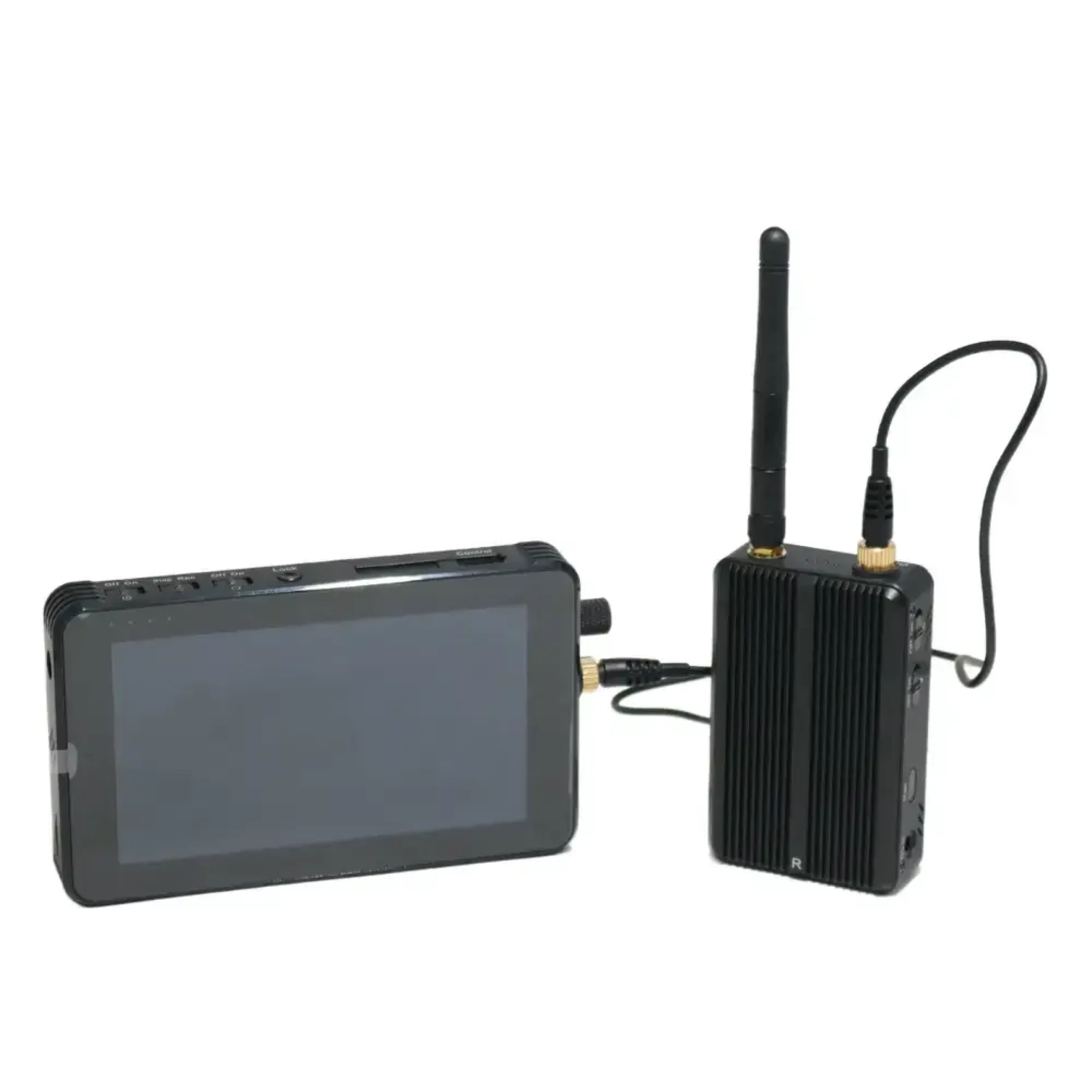

Connect Q-AHD-TX10 with BU-18AHD button camera and Q-AHD-RX10 with PV-1000 AHD DVR. Once connected, the system allows the BU-18AHD to capture full HD 1080P video while the AHD-TR10 transmits it wirelessly to the PV-1000 AHD in real time. You can view live footage directly on the DVR, control recordings, and save video for later review. Thanks to the PV-1000 AHD’s built-in Wi-Fi, you can also monitor and control recordings remotely via a compatible smartphone when connected to the same network. With multiple recording modes on the DVR, you have full control over how footage is captured and stored, ensuring nothing important is missed.

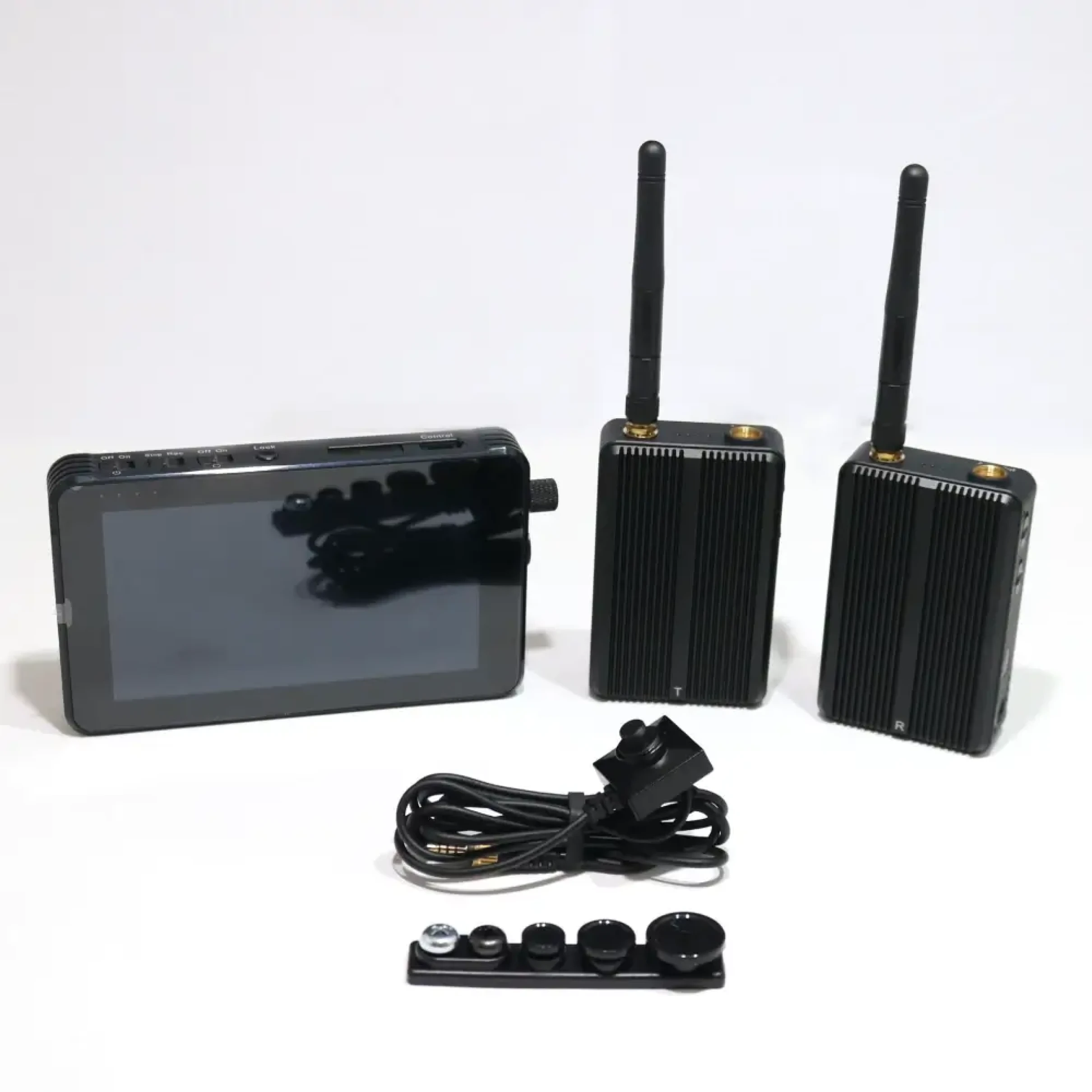

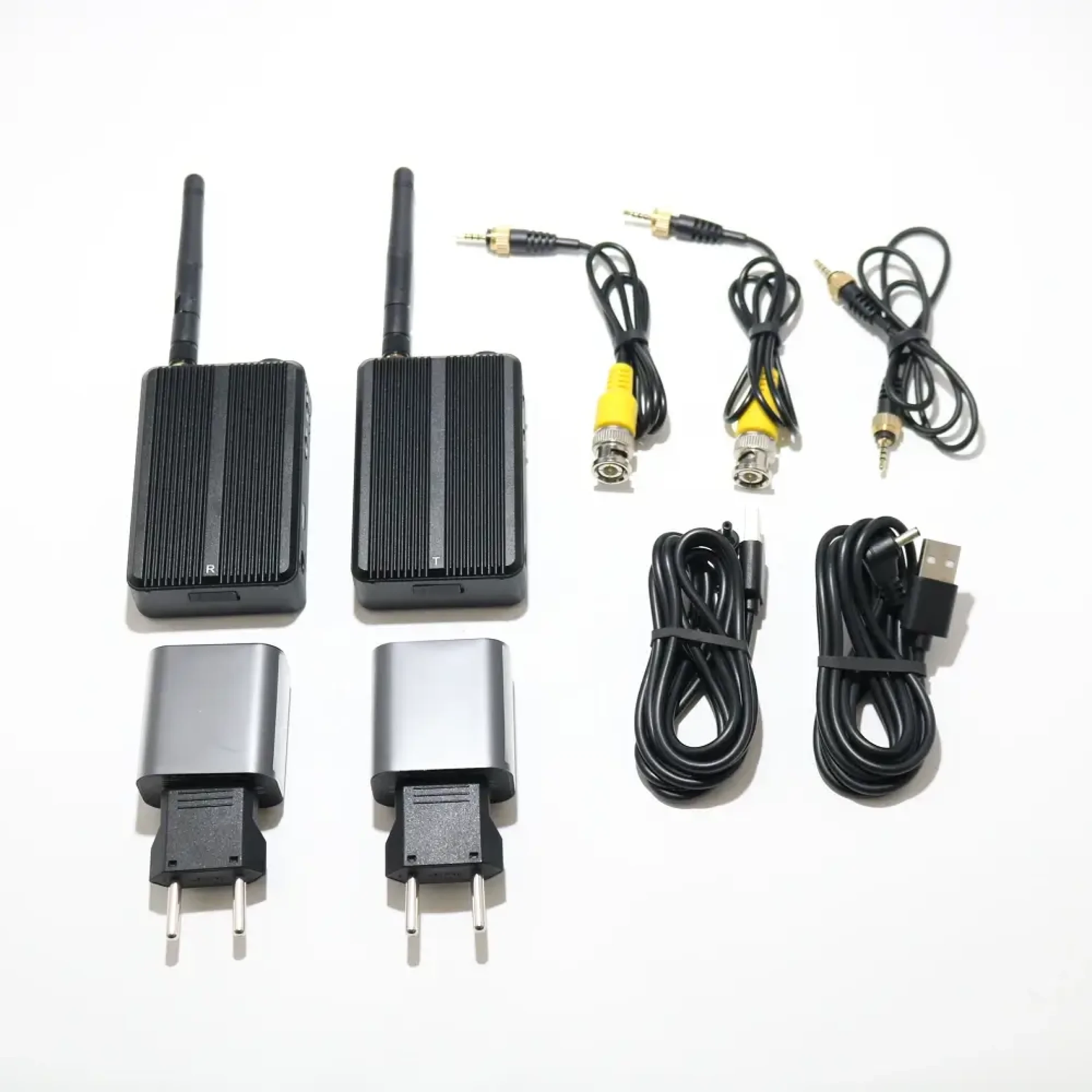

This kit includes the AHD-TR10 wireless transmitter and receiver system, the PV-1000 AHD Slim Wi-Fi Digital Video Recorder, and the BU-18AHD full HD button camera. Together, they provide a complete solution for recording, transmitting, and monitoring AHD video wirelessly.



The system supports full HD 1080P AHD video. Both live transmission and recorded footage maintain high image quality with clear detail suitable for professional surveillance use.



The AHD-TR10 system supports wireless transmission over open distances of up to 620 meters, depending on environmental conditions and line of sight, while maintaining a stable and low-latency video connection.



No. The AHD-TR10 is designed for real-time transmission with minimal latency, allowing near-instant live viewing on the PV-1000 AHD DVR.



Yes. The PV-1000 AHD DVR features built-in Wi-Fi, enabling live viewing and recording control via a compatible smartphone when connected to the same Wi-Fi network.



The DVR supports multiple recording modes, including Standard recording, Motion Detection, Pre-Event recording, and Pre-Motion recording, allowing flexible and reliable capture of important footage.



The AHD-TR10 transmitter includes an integrated rechargeable battery that supports approximately 3.5 hours of continuous operation on a full charge.



Yes. The BU-18AHD is compact, lightweight, and designed for discreet installation in clothing or everyday objects. It also includes an integrated microphone for synchronized audio recording.



No. The system is designed for quick and simple setup. Pairing the transmitter and receiver is done with a single button, and connections to the camera and DVR are straightforward.



This kit is suitable for professional surveillance applications, including law enforcement, investigators, security professionals, and other users who require a portable, high-quality wireless video monitoring solution.

For additional information, please see below the full specifications of the AHD-TR10, PV-1000 AHD and BU-18AHD.



>> PV-1000 AHD detailed specifications (PDF)<<
>> BU-18AHD detailed specifications (PDF)<<

24 months warranty.
