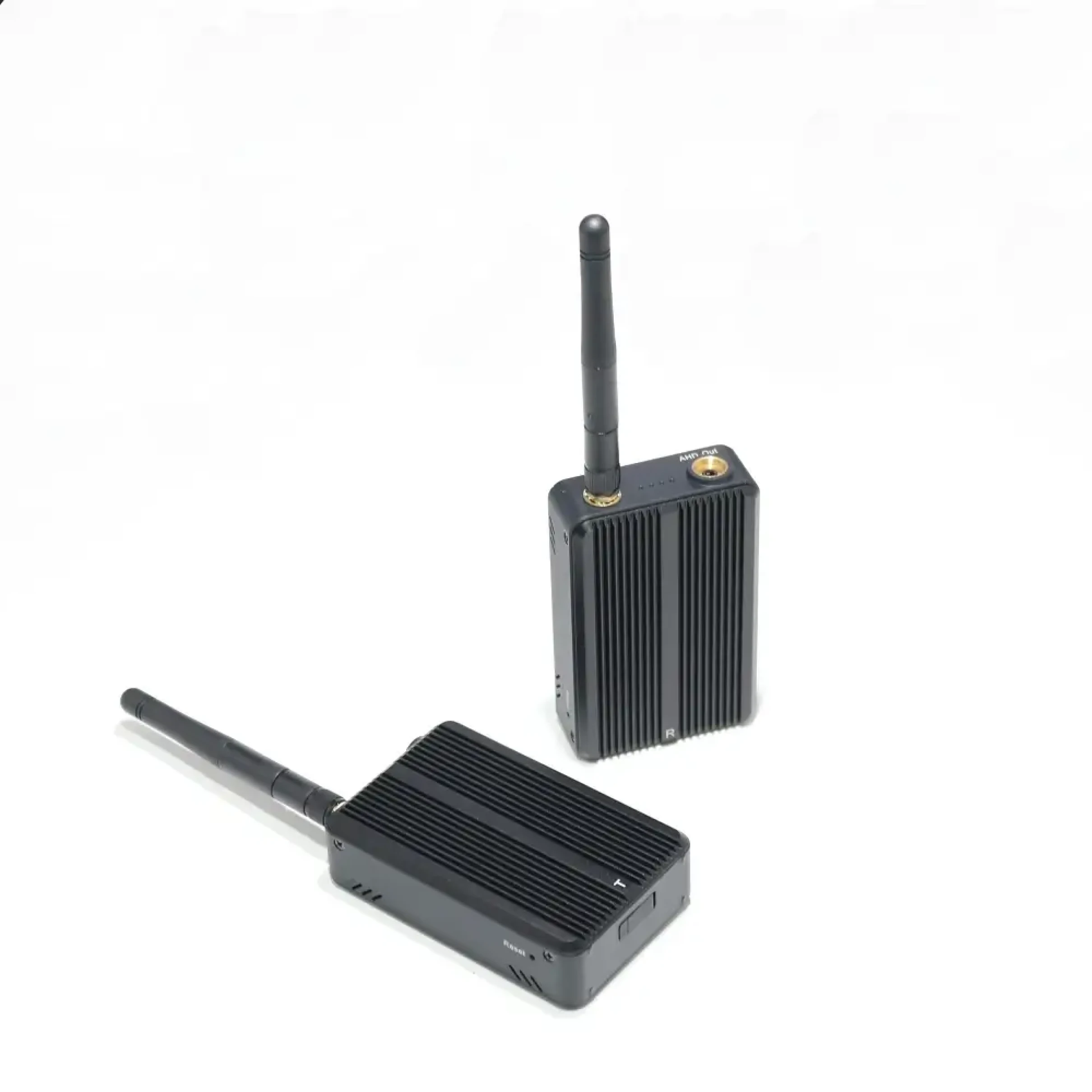

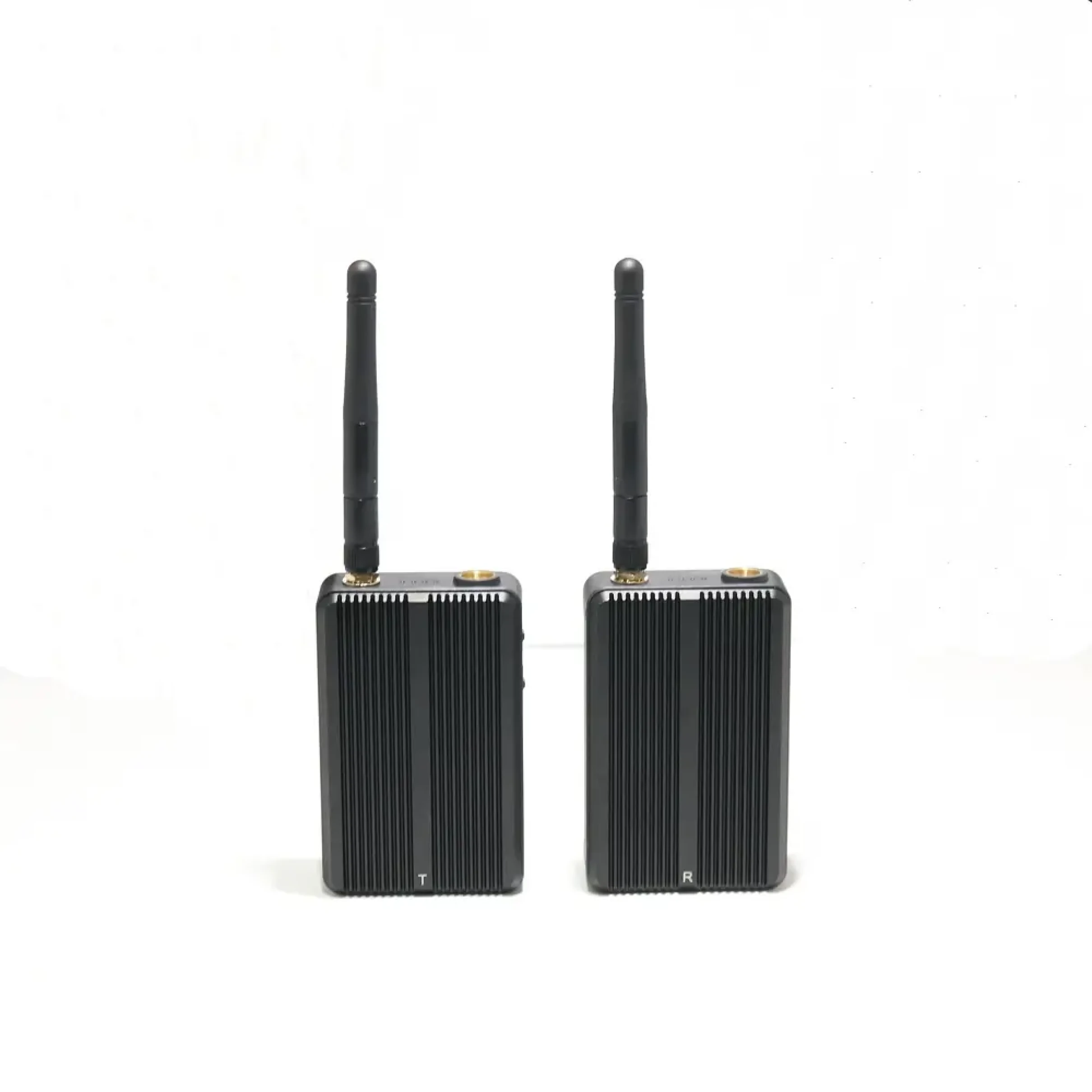

The LawMate AHD-TR10 is a professional digital wireless transmitter and receiver system designed for high‑resolution AHD video transmission.
The system provides wireless transmission over open areas up to 620 meters, which creates a secure and stable wireless connection between compatible AHD cameras and recording devices.
Using advanced 2.4GHz digital transmission technology, the AHD‑TR10 ensures reliable real‑time video delivery with 1080P image quality, even over long distances, making the video appear almost instantly on the receiving device.
The AHD-TR10 has a compact, lightweight design and requires only minimal setup, making it easy to use. It is combined with an integrated high‑capacity battery, recording for 220 minutes straight.
The system is fully compatible with the
BU-18AHD Camera and other compatible AHD cameras, as well as the
PV-1000AHD or other compatible AHD DVR for recording and archiving, enabling seamless integration into existing surveillance workflows
AHD-TR10 Wireless Transmitter and Receiver Kit Main Features:
- High‑resolution AHD digital wireless transmission and reception
- Tested wireless transmission range of up to 500+ meters in open line‑of‑sight conditions
- Designed for environments where cabling or internet access is unavailable
- Secure digital transmission with automatic codec and channel management
- Low latency video transmission for real‑time monitoring
- Compact, lightweight, and easy to operate
- Built‑in high‑capacity rechargeable battery for portable use
- Extended operating time with AC adapter
- Compatible with BU‑18AHD camera and other AHD cameras
- Compatible with PV‑1000AHD DVR and other AHD recording systems
LawMate AHD-TR10 Full Specifications:
Q‑AHD‑TX10
Internal Module: Internal 2.4G Digital Module
Output Power: 10–11 dBm / Standard
T/R Frequency: 2408 – 2478 MHz
TX Channels: 19 Channels
Dynamic Rate: Around 200/s
RF Bandwidth: 12 Mbps
Modulation: QPSK / 16QAM
Latency: Including AHD conversion, overall latency around 100 ms
TX Video Input Signal Format: AHD @1080P / 720P
Antenna Gain: 3 dB
Working Range: Open terrain up to 620 meters
Power Input: DC 5V
Power Consumption:
a) External Camera: 900–950 mA
b) No Camera: 370–400 mA
c) Transmitting Static Images: 940–1050 mA
d) Transmitting Dynamic Images: 1.2–1.4 A
Charging Time: 1.5A, 4000 mA battery 4H
Battery Input: DC 3.7V / 4000 mA Li‑battery
Battery Lifetime: Continuous TX:220Min
Dimensions: 88 × 25 × 23 mm
Weight: 95 g
Q-AHD-RX10
Internal Module: Internal 2.4G Digital Module
T/R Frequency: 2408 - 2478Mhz
Rx Channel: 19 Channels
RX Video Output Signal Format: AHD @1080P/720P
ANT Gain: 3dB
Video Output Impedance: 75Ω, Typ
Power Input: DC 5V
Power Consumption:
a) No TV Output: 370mA-400mA
b) Transmitting images: 450-500mA
Charging Time: 1.5A 4000mA Battery 4H
Battery Input: DC 3.7V / 4000 mA LI Battery
Battery Lifetime: Continuous TX: 450 Min
Dimension: 88 × 25 × 23mm
Weight: 95 g
LawMate AHD-TR10 Wireless Transmitter Kit Feature Focus:
Secure Digital Wireless Transmission
The AHD-TR10 uses secure digital wireless transmission to send high-resolution AHD video without the need for cables or internet access. Automatic codec and channel selection help maintain a stable connection while reducing interference and the risk of unauthorized signal access. This makes the system especially suitable for law enforcement officers, security professionals, and private investigators who need a dependable and discreet wireless video link in the field.
High‑Resolution AHD Video Support
Supporting AHD video formats up to 1080P, the AHD-TR10 delivers clear video suitable for professional surveillance and evidence collection. The higher resolution allows important details—such as faces, movements, and objects—to be captured more accurately, even at a distance. This level of image quality is essential for professionals who rely on usable footage for review, documentation, and reporting.
Low Latency Performance for Real-Time Monitoring
With an overall latency of approximately 100 ms, the AHD-TR10 delivers video that appears almost in real time. This very short delay allows quick reaction and accurate monitoring of events. It is well suited for law enforcement officers, security personnel, and surveillance professionals who require timely visual information during tactical operations, mobile surveillance, and live security monitoring.
Portable, Cable-Free Operation
The AHD-TR10 is designed for use in locations where cables are not practical. It includes a built-in rechargeable battery that supports up to 220 minutes of operation, allowing the system to be used without a fixed power source. Because no wiring or complex installation is required, the device can be set up and used quickly.
Long-Range Wireless Transmission
In open line-of-sight conditions, the AHD-TR10 has been tested to transmit video over distances of 500 meters or more, providing great flexibility in placement and coverage. This long-range capability is ideal for perimeter monitoring, remote observation points, and wide-area surveillance, where maintaining image quality over distance is essential.
LawMate AHD-TR10 FAQs:
Can I use the AHD-TR10 without internet or Wi-Fi?
Yes, the AHD-TR10 works independently of internet or Wi-Fi. It uses its built-in 2.4 GHz digital wireless module to transmit video directly from compatible AHD cameras to the receiver. This makes it suitable for locations where cabling is not available or internet access is unreliable.
What is the maximum transmission range of the AHD-TR10?
The system has been tested to transmit video over open terrain up to 620 meters. In areas with walls or obstacles, the range may be shorter. The long-range transmission allows for flexible placement of cameras and monitoring equipment.
What video quality does the AHD-TR10 provide?
The AHD-TR10 supports AHD video up to 1080P, delivering high-resolution video that captures important details such as faces, objects, and movement. This makes it suitable for professional surveillance and evidence collection.
Does the AHD-TR10 provide real-time video?
Yes. The system has an overall latency of around 100 ms, so the video feed is displayed almost instantly on the receiving device. This allows users to monitor events as they happen, which is important for security and tactical operations.
How long can the AHD-TR10 operate on battery power?
The transmitter has a built-in rechargeable battery that supports up to 220 minutes of continuous use, while the receiver can operate up to 450 minutes. Both units can also be powered by an AC adapter for extended operation.
Is the AHD-TR10 easy to set up?
Yes, the system is designed for simple operation. It requires minimal setup—just power on the units and connect the camera. The transmitter and receiver automatically establish a secure wireless connection without complex configuration.
Which cameras and recording devices are compatible with the AHD-TR10?
The AHD-TR10 is compatible with the BU-18AHD camera and other AHD cameras. It can also connect to the PV-1000AHD DVR or other compatible AHD recording devices, allowing seamless integration into existing surveillance setups.
Can the AHD-TR10 be used for mobile or temporary monitoring?
Yes. The compact, lightweight design and built-in battery make the system suitable for mobile use, temporary installations, and cable-free setups. This allows rapid deployment in the field without relying on fixed power sources.
Is the video transmission secure?
Yes. The AHD-TR10 uses encrypted digital transmission with automatic channel and codec management. This helps prevent interference and unauthorized access to the video feed, making it suitable for law enforcement, security professionals, and private investigators.
Who is the AHD-TR10 intended for?
The system is designed for law enforcement officers, security personnel, private investigators, and surveillance professionals who need a reliable wireless video solution with high-resolution real-time monitoring, portable operation, and easy setup.
Note:
For detailed info on the specifications and use of the device, please read the PDFs available for download below.
24 months warranty
>>Download detailed specifications (PDF)<<
