Lornet 36 Mini - Non-Linear Junction Detector
11.390,00  EUR  ex VAT
14.237,50  EUR  inc VAT
Stock in 15 days
14 day refund
24 month warranty
Disclaimer: Items on the website are not be used for the purpose of illegal surveillance of unsuspecting subjects. The items are to be used only in compliance with all the local laws and regulations under the threat of penalty.

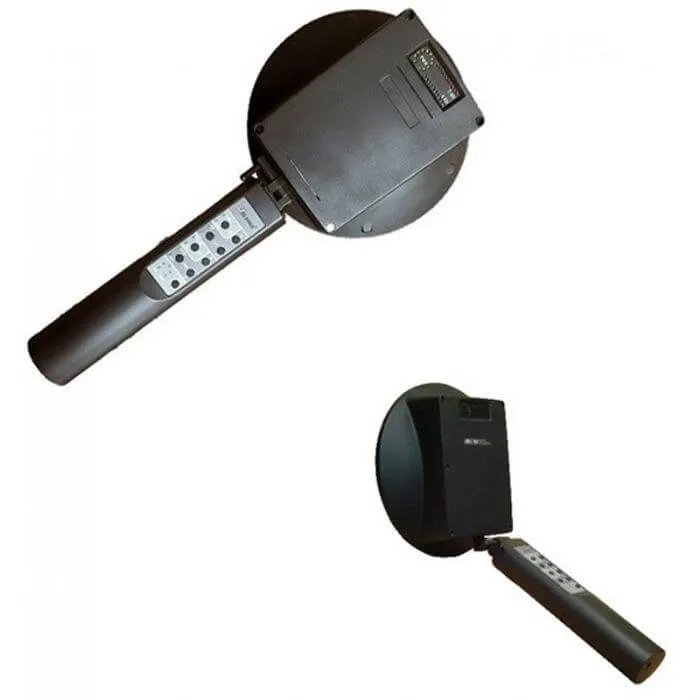

Non Linear Junction Detector Lornet 36 Mini

The technical characteristics of the Lornet 36 Mini, like selection and accuracy of spatial localization (of semiconductor devices for distances to max. 2m) correlate with the Lornet 36 device.

Much like the NLJD 36, the Mini operation functions on the principles of semiconductor components, so to generate a response in second and third harmonics when they are radiated by a UHF signal.

If the semiconductor components are of artificial origin, they will have a higher level of second harmonic. To the contrary, semiconductor components of natural origin, such as oxide films, will have a higher level of third harmonics.

The NLJD 36 Mini, uses the second and third harmonics response of the radiated objects as to enable a fast and accurate identification of electronic devices and natural oxide semiconductors.
The SHF range makes it possible to detect semiconductor elements hidden by different materials; like cracks, under screens and reflections of smooth surfaces.

It is able to detect SIM cards at a 1 meter distance.

The controls and indications of operation are done in the same way as in the Lornet, Lornet-24 and Lornet-36 models; automatic and manual changes in power of the probing signal in "Pulse Mode".

Which means that it has two types of radiated signals:



  • the pulse modulated carrier with a duty cycle of 0.4% (pulse),
  • and, the pulse modulated carrier with a duty cycle of 6% (CW).



The electromagnetic and radiation impact on the user is largely reduced, due to the high duty ratio of the probing impulses.

The LED display and the light weight make it easy to use.



Lornet 36 Main Features:

  • Functions on the principles of semiconductor components to generate a response in second and third harmonics when they are radiated by a UHF signal
  • Fast and accurate identification of electronic devices and natural oxide semiconductors
  • Probing signal frequency: 3580-3620 MHz
  • Laser pointer, LED display and lightweight
  • Has two types of radiated signals


Lornet-36 Mini Specifications:

Type of probing: signal pulse
Probing signal frequency: 3580-3620 MHz
Receiver frequency at 2nd harmonics: 7160-7240 MHz
Receiver frequency at 3rd harmonics: 10740-10860 MHz
Antenna gain factor at 1st harmonics: 20 dB
Antenna gain factor at 2nd harmonics: 24 dB
Capacity (pulse ratio) of pulse signal: 20 W (160)
Sensitivity at 2nd and 3rd harmonics without antenna gain: -110 dBm
Dynamic range: more than 40 dB
Angle of antenna directivity diagram at 1st  harmonics: 16 degrees

Laser pointer: Yes
Operational time at max. output power: 3 hours

Dimensions in operational/transportational shape:52*25*14 / 27*25*14cm
Operational weight: max. 1 kg
Operating temperature: +5 to +400C


Notes:

Feel free to study the user manual before use. It is useful to be familiar with the operation, search recommendations and safety measures for the Lornet 36 Mini.
The technical characteristics of the device, like selection and accuracy of spatial localization (of semiconductor devices for distances to max. 2m) correlate with the Lornet 36 device. Please use the PDF offered for download below for further details.


>>Download detailed specifications (PDF)<<
