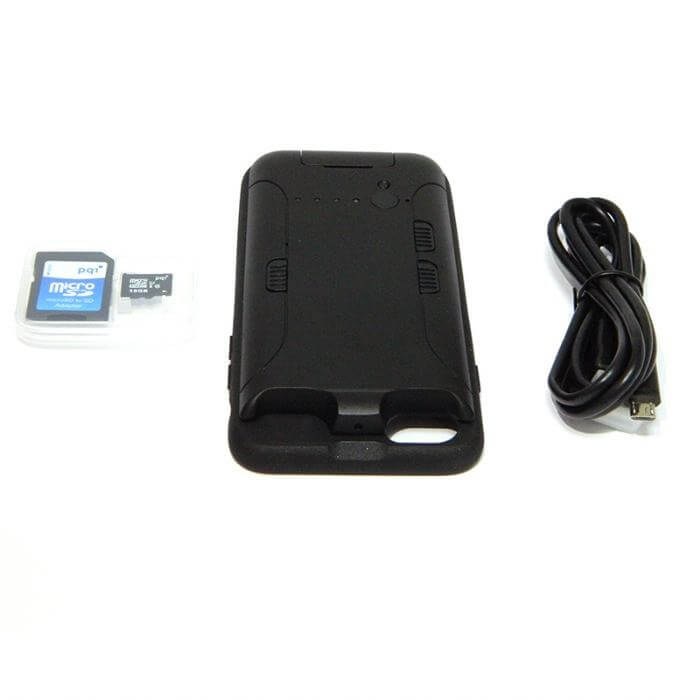

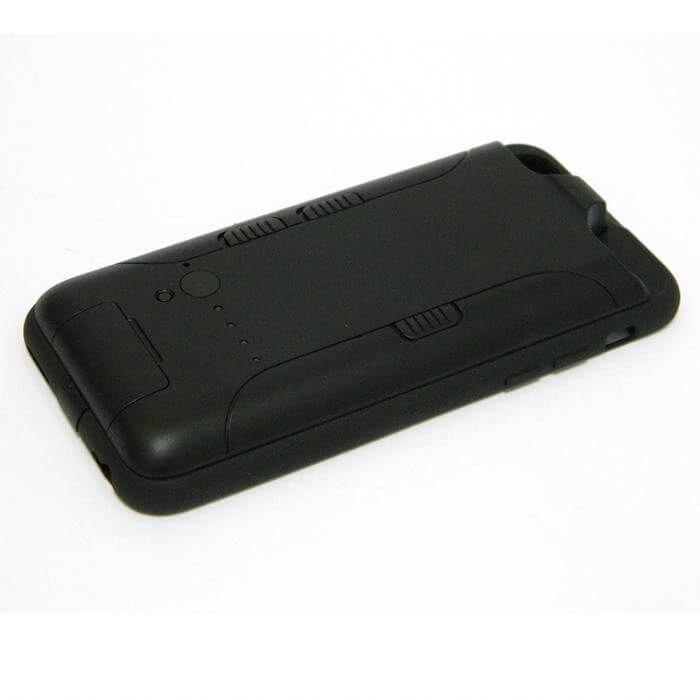

The LawMate PV-IP7W iPhone 6 and iPhone 7 battery case DVR comes with a sensor resolution of 2592x1944, thus produces Full HD 1080p videos and photos.
This product is end of line and no longer available. If you are looking for a product with the same or similar specifications, please see related products at the end of the page or contact us directly at [email protected]
Like the previous iPhone models, this DVR has multiple recording modes; continuous and motion detection. The video and picture resolution is adjustable, and the device can be manipulated as well as set up via the PV Cam App - which also offers remote monitoring via your iPhone, or downloading of the videos and pictures.
It offers 300 min of recording time @ Full HD resolution on the 16 GB SD card that is part of the standard accessories. Supports up to 32 GB SD cards.
Depending on the settings it offers up to 200 min of battery lifetime (more info in the specs section below).
The LED indicators can be turned off while in a covert operation. This model is also a bit slimmer than the previous models.
PV-IP7W Main Features:
- Wi-Fi mini DVR in a battery case
- Fits iPhone 6 and iPhone 7
- 3 resolution options - 1080p / 720p / 480p @30fps
- Continuous and Motion Detection mode
- Motion detection notification keeps you always informed (via App)
- Battery-powered and portable
- Comes with a 16 GB SD card, and supports up to 32 GB SD cards
- Battery life up to 200 min
- LED indicators can be turned Off for undercover operations
LawMate PV-IP7W Full Specifications:
Built-in image sensor: 1/3" progressive CMOS sensor
Sensor resolution: 2592x1944
Sensor sensitivity: 3.3 Lux @ F 2.0
Lens F/No; F 3.2
Focal Length: 4 mm
Angle of View: 66°
Algorithm H.264, JPEG
File Format: MOV, JPG
Video recording mode: Manual
Recording Capability: 1920x1080
Frame rate: Up to 30 fps
Digital Zoom: 4X
WIFI: Built-in WiFi Module(IEEE 802.11b/g/n)
Wifi Protocol: RTSP
Memory type: Micro SD Card ( Support SDHC max=32GB)
Data interface: Mini USB 2.0
Date/Time Table: YYYY/MM/DD, HH:MM :SS
Snapshot recording and playback video
Power Input: DC 5V
Power Consumption: 380-420mA (WiFi OFF) (WIFI ON+80mA)
Charging Time: 240 min (400mA)
Recording time 160min @ 1920x1080 resolution (16GB SD card)
Vibration Alert Power on/off, Recording, Low battery
Dimension 70x140x15 mm
Battery Input DC 3.7V / 1200 mA high polymers battery
1080P continuous recording 170min (WIFI OFF+LED OFF)
1080P continuous recording 150min (WIFI OFF+LED ON)
1080P continuous recording 130min (WIFI ON+LED OFF)
1080P continuous recording 110min (WIFI ON+LED ON)
720P continuous recording 185min (WIFI OFF+LED OFF)
720P continuous recording 165min (WIFI OFF+LED ON)
720P continuous recording 145min (WIFI ON+LED OFF)
720P continuous recording 125min (WIFI ON+LED ON)
WVGA continuous recording 200min (WIFI OFF+LED OFF)
WVGA continuous recording 180min (WIFI OFF+LED ON)
WVGA continuous recording 160min (WIFI ON+LED OFF)
WVGA continuous recording 140min (WIFI ON+LED ON)
>>Download detailed specifications (PDF)<<
PV-IP7W Feature Focus:
Wi-Fi for ease of use
A simple Wi-Fi connection from your smartphone enables the review and setup as well as time/date stamp synchronization and firmware updates.
It is no longer necessary to bring a separate LCD monitor to fully setup and review the recorded video neither is a nearby laptop necessary to perform time/date and firmware updates. Everything you need to fully use the PV-IP7W fits inside your pocket.
Note: For detailed instructions on the Wi-Fi connection and setup, please carefully study the IP Cam Manual below.
24 Months Warranty.
