The ER-18HD is a law enforcement grade head-cam that comes in 1080P and is compatible with LawMate's Wi-Fi DVRs.
This product is end of line and no longer available. If you are looking for a product with the same or similar specifications, please see related products at the end of the page or contact us directly at [email protected]
This is the new and updated version of the ER-18 head set cam (550 TV Line) that is currently on sale.
The headset cam is compatible with the
PV-500HDW and
PV-500HDW Pro DVRs and offers a 141° angle of view. It is water-resistant and comes with a set of accessories for mounting on your helmet or vehicle.
As the camera is compatible with the Wi-Fi DVR series, it allows you to monitor, set up, and download video and photo material via your Android or iOS smartphone.
ER-18HD Main Features:
- Lightweight digital Full HD 1080P camera
- Angle of View 141°
- Body-worn camera and/or traffic recorder that comes with an all-purpose camera mount
- Comes with a cable kit for different applications
- Instant recording wire controller and segmented wiring design to avoid neck strangle in action
- Water-Resistance
- LED indicators
- One button operation
- PV Cam Viewer App can send a notification to your mobile phone once a motion is detected
Compatible with:
- Powered by the DVR.
ER-18HD Full Specifications:
Video Resolution: 1080P
Sensor resolution: 2000 * 1121
Pixel Size: 2.8um (H) * 2.8um (V)
Digital Picture Resolution: (H) 1920*(V) 1080
Built-in image sensor: Progressive 1/2.9 inch SONY CMOS
Illumination Sensitivity: 0.03 Lux @ F2.0 50IRE
Lens: F/No F1.8
Angle of View: 141°
Depth of Field: 50 cm ~ ∞
Electronic Shutter: 1/8 ~ 1/30,000
Video Output: I2C Data
Power Supply Voltage: DC 3.3 V ± 5%
Power Supply Current: 220 mA
Operating Temperature: -10℃ ~ 60℃
Operating Humidity: 20 ~ 90%
Storage Temperature: -30℃ ~ 80℃
PV-CAM iOS and Android apps for LawMate Wi-Fi Recorders:
Google play link:
App Store link:
ER-18HD Feature Focus:

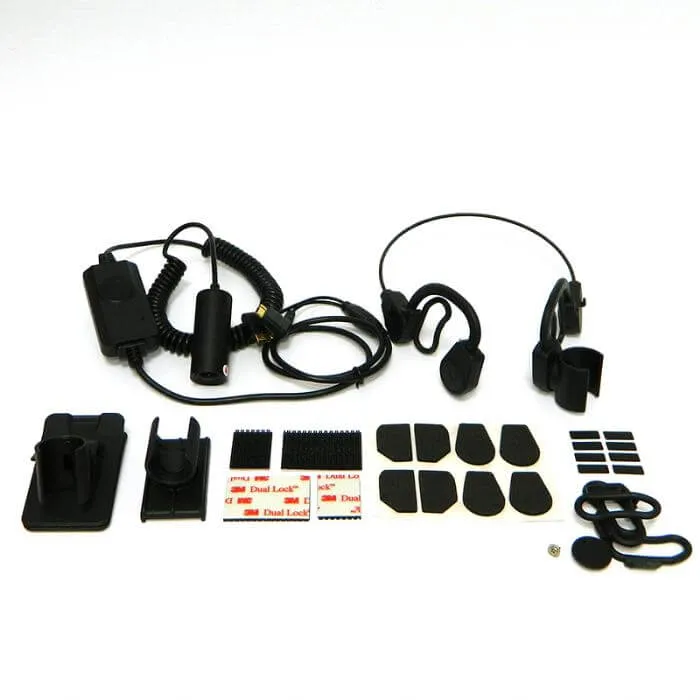

To ensure that you can wear the camera in multiple situations Lawmate has included the YSD-LP20H accessories as shown in the picture below (also available in the accessories - tapes and velcros, headset, 2* mount clip). For a step to step guide on how to attach the mount to a helmet, please see the quick manual available for download below.
>>Illustration from Quick Manual - Click on Image to enlarge!<<
How to use the ER-18HD:
- Power on/off the compatible DVR of your choice
- When the DVR is powered on, the camera starts to record automatically. When DVR is powered off, the camera stops recording at the same time.
ER-18HD Full HD Wi-Fi FAQs
Can I control the LawMate ER-18HD remotely?
The camera can be controlled via the PV Cam Viewer App on your Android or iOS smartphone. This remote control capability allows for convenient operation, including monitoring, setup, and downloading of video and photo material directly to your mobile device.
Does the LawMate ER-18HD have a wide angle of view?
Yes, it offers a 141° angle of view. This wide angle allows for extensive coverage of the environment, making it suitable for capturing a broad scene during recordings, which is particularly useful in law enforcement and surveillance applications.
Does the LawMate ER-18HD have any LED indicators?
Yes, it features LED indicators. These indicators provide visual cues about the camera’s status, including power and recording status, enhancing the user experience by making it easier to understand the camera’s operation at a glance.
How can I get notifications for motion detected by the LawMate ER-18HD?
The PV Cam Viewer App can send a notification to your mobile phone once motion is detected. This feature ensures that users are promptly informed of any activity, allowing for immediate response or review of the recorded footage.
How do I power the LawMate ER-18HD?
The camera is powered by the DVR it is connected to. This design ensures a streamlined setup and operation, reducing the need for separate power sources and simplifying the overall use of the camera system.
Is the LawMate ER-18HD compatible with any DVR systems?
Yes, it is compatible with LawMate’s PV-500HDW and PV-500HDW Pro Wi-Fi DVRs. This compatibility allows for seamless integration and operation, enabling users to monitor, set up, and download video and photo material via a smartphone.
Is the LawMate ER-18HD water-resistant?
Yes, the camera is water-resistant. This feature enhances its durability and makes it suitable for use in various weather conditions, ensuring reliable performance when it’s needed most.
What accessories come with the LawMate ER-18HD?
It comes with a set of accessories for mounting on your helmet or vehicle, including the YSD-LP20H accessories. These accessories provide flexibility in how and where the camera can be used, ensuring it meets the needs of different recording scenarios.
What is the main purpose of the LawMate ER-18HD?
It is designed as a lightweight digital Full HD 1080P body-worn camera and/or traffic recorder. Its main purpose is to provide high-quality video recording for law enforcement, security personnel, and for general surveillance and recording needs.
What is the resolution of the LawMate ER-18HD Full HD Wi-Fi Headset Camera?
The ER-18HD records in 1080P Full HD resolution. This high-definition recording ensures clear and detailed footage, suitable for law enforcement and professional use. The camera’s quality makes it ideal for capturing evidence or recording events with precision.
Notes:
For a complete installation guide as well as function overview and usage, please study the Quick Manual and Specification PDFs below.
24 Months Warranty
>>Download detailed specifications (PDF)<<
